| General | |
|---|---|
| Weight | 9.7 lb / 4.4 kg (Body Only) |
| Mounting | 6x M3 Female |
| Dimensions (W x H x D) | 7.9 x 10.6 x 8.2" / 200 x 269 x 208 mm |
| Packaging Info | |
| Package Weight | 14.15 lb |
| Box Dimensions (LxWxH) | 18.6 x 15.3 x 14.6" |
| Environmental | |
| Operating Conditions | 32 to 104°F / 0 to 40°C at 10 to 90% Humidity |
| Power | |
| Power Consumption | PoE: 1.2 A (37.4 W) Power Supply: 3.5 A (36.7 W) |
| Power I/O | 1x XLR 4-Pin (12VDC) |
| PoE Support | Yes: PoE++ 802.3bt |
| Imaging | |
| Image Sensor | 1"-Type CMOS |
| Effective Sensor Resolution | Effective: 8.29 Megapixel Actual: 13.4 Megapixel |
| Focus Control | Autofocus Manual Focus |
| Video Capture | |
| Internal Recording | No |
| Video Output | via SDI/BNC / HDMI 3840 x 2160 at 25/29.97/50/59.94/23.98 fps 1920 x 1080p at 59.94/23.98/25/29.97/50 fps 1920 x 1080i at 59.94/50 fps 1280 x 720 at 59.94/50 fps 720 x 576i at 50 fps |
| IP Streaming | NDI HX/RTMP/RTMPS/RTP/RTSP/SRT 3840 x 2160 at 23.98p, 25p, 29.97p, 50p, 59.94p |
| Broadcast Output | NTSC/PAL |
| Embedded Audio | HDMI/SDI |
| Supported Protocols | Video Streaming NDI|HX/RTMP/RTMPS/RTP/RTSP/SRT Camera Control FreeD/IP/IR |
| Control | |
| Presets | 100 |
| Pan/Tilt | Pan: 340° (-170 to 170°) at 0.1 to 100°/s Tilt: 120° (-30 to 90°) at 0.1 to 100°/s |
| Tally Light | Yes |
| Exposure Control | |
| ISO/Gain Sensitivity | Gain: -6 to 36 dB |
| Shutter Speed | 1/2000 to 1/3 Second |
| White Balance | Presets: AWB, Auto Range: 3200 to 5600K |
| Minimum Illumination | 3 Lux |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| Interface | |
| Media/Memory Card Slot | Single Slot: SD (Unspecified Type) Single Slot: microSD (Unspecified Type) |

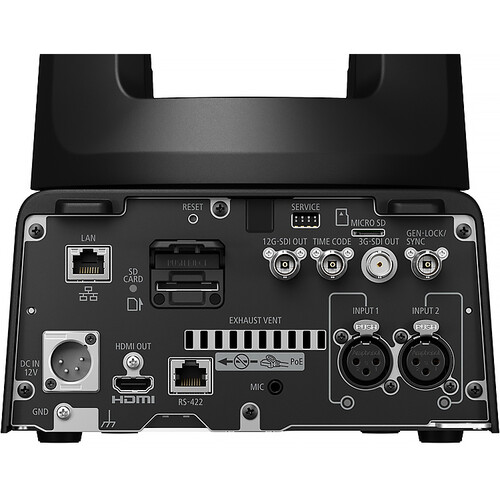

| Video I/O | 1x BNC (3G-SDI) Output 1x BNC (12G-SDI) Output 1x HDMI Output |
| Audio I/O | 2x XLR 3-Pin Input |
| Other I/O | 1x RJ45 (RS-422) Control 1x RJ45 (LAN) 1x BNC (Genlock) |
| Built-In Microphone | No |
| Built-In Speaker | No |
| Lens | |
| Focal Length | 8.3 to 124.5mm (35mm Equivalent: 25.5 to 382.5mm) |
| Maximum Aperture | f/2.8 to 4.5 |
| Max Optical Zoom | 15x |
| Max Digital Zoom | 30x ( in 1080p) |
| Field of View | Horizontal: 73 to 5.7° Vertical: 45.2 to 3.2° |
| Minimum Focus Distance | 2' / 60 cm |
| Networking | |
| Wireless | IR |
| Others | |
| Marka | Canon |
Price:
816.000,00 ₺
