| General | |
|---|---|
| Weight | 6.8 lb / 3.1 kg (Body Only) |
| Mounting | 1x 1/4"-20 Female for Tripod |
| Dimensions (W x H x D) | 8.7 x 7.6 x 6.9" / 220 x 194 x 176 mm (Without Protrusions) |
| Packaging Info | |
| Package Weight | 12.915 lb |
| Box Dimensions (LxWxH) | 15.6 x 14.9 x 14.2" |
| Environmental | |
| Operating Conditions | 32 to 104°F / 0 to 40°C at 10 to 90% Humidity |
| Environmental Resistance | No |
| Storage Conditions | 32 to 104°F / 0 to 40°C at 10 to 90% Humidity |
| Impact Resistance | No |
| Power | |
| Power Consumption | PoE: 34.4 W Device: 12 VDC 33.8 W |
| Power I/O | 1x Barrel (12VDC) Input |
| PoE Support | Yes: PoE++ 802.3bt |
| Imaging | |
| Image Sensor | 1/2.3"-Type CMOS |
| Effective Sensor Resolution | Effective: 8.59 Megapixel (3840 x 2160) Actual: 21.14 Megapixel Effective: 7.88 Megapixel (3744 x 2104) Actual: 21.14 Megapixel |
| Focus Control | Autofocus Manual Focus |
| IR Cut Filter | No |
| Video Capture | |
| Internal Recording | No |
| Video Output | 4:2:0 8-Bit via RJ45 3840 x 2160 at 25/29.97/14.99/50/12.50/59.94/23.98/5 fps 1920 x 1080 at 59.94/23.98/5/25/29.97/12.50/14.99/50 fps 1280 x 720 at 59.94/23.98/5/25/29.97/12.50/14.99/50 fps 640 x 360 at 59.94/23.98/5/25/29.97/12.50/14.99/50 fps 4:2:2 10-Bit via HDMI 3840 x 2160 at 25/29.97/23.98 fps 1920 x 1080p at 59.94/23.98/25/29.97/50 fps 1920 x 1080i at 59.94/50 fps 1280 x 720 at 59.94/50 fps 720 x 576 at 50 fps 720 x 480 at 59.94 fps 4:2:2 10-Bit via SDI/BNC 3840 x 2160 at 25/29.97/50/59.94/23.98 fps 1920 x 1080p at 59.94/23.98/25/29.97/50 fps 1920 x 1080i at 59.94/50 fps 1280 x 720 at 59.94/50 fps 720 x 576 at 50 fps 720 x 480 at 59.94 fps |
| Audio Recording | Yes |
| IP Streaming | H.264 via NDI HX/RTMP/RTMPS/RTP/RTSP/SRT 640 x 360 to 3840 x 2160 at 5.00p, 12.5p, 14.99p, 29.97p, 50p, 59.94p |
| Broadcast Output | NTSC/PAL |
| Embedded Audio | HDMI/IP/NDI/SDI |
| Supported Protocols | Camera Control Canon XC/FreeD/NDI|HX2 |
| Control | |
| Presets | 100 via IP, IR, RS-422 |
| Pan/Tilt | Pan: 340° (-170 to 170°) at 0.1 to 200°/s Tilt: 130° (-30 to 100°) at 0.1 to 180°/s |
| Tally Light | Yes |
| Exposure Control | |
| Shutter Speed | 1/2000 to 1/3 Second |
| White Balance | Range: 2000 to 15,000K Presets: AWB, Daylight, Manual, Set A, Set B, Tungsten |
| Minimum Illumination | 3 Lux at 1/60 Shutter Speed 1.5 Lux at 1/30 Shutter Speed |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| Interface | |
| Media/Memory Card Slot | Single Slot: SD (Unspecified Type) |

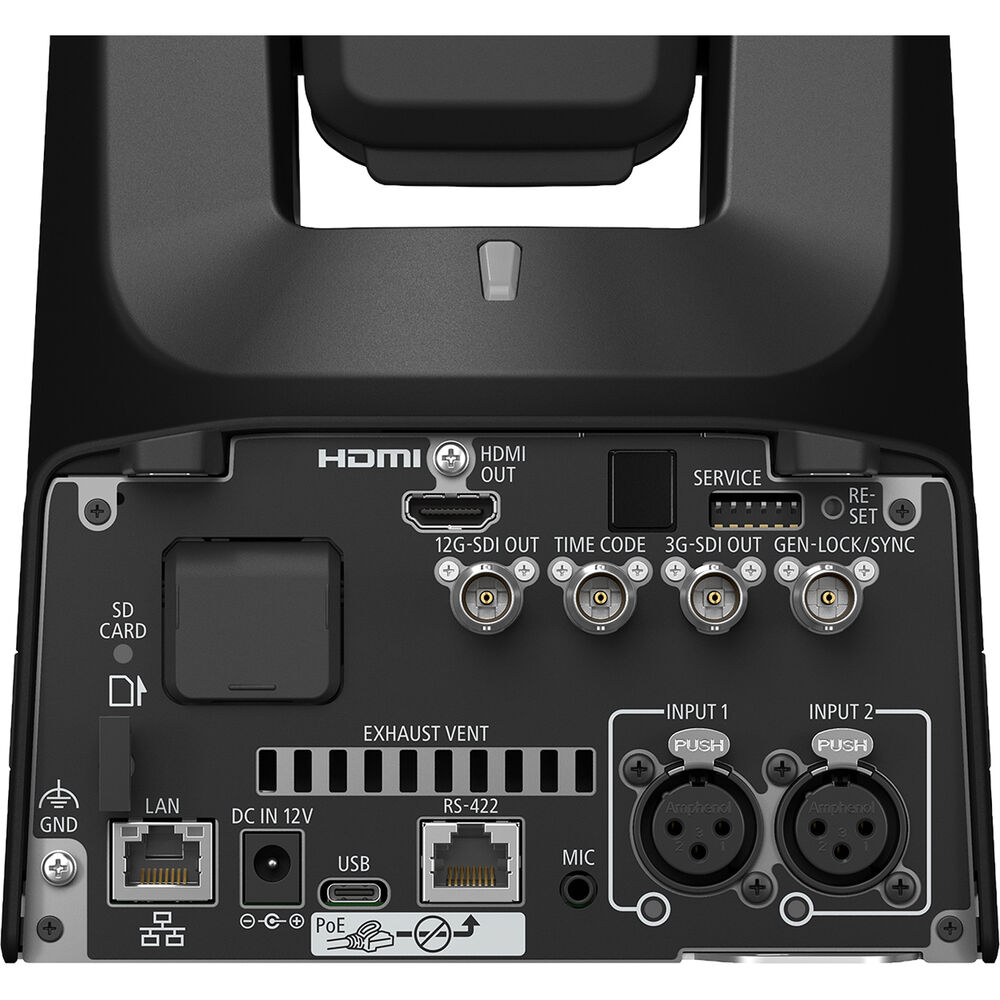

| Video I/O | 1x BNC (12G-SDI) Output 1x BNC (3G-SDI) Output 1x HDMI Output 1x RJ45 (NDI) Output |
| Audio I/O | 2x XLR 3-Pin Input 1x 1/8" / 3.5 mm TRS Stereo Microphone Input |
| Other I/O | 1x RJ45 (RS-422) Control 1x BNC (Timecode) 1x BNC (Genlock) 1x USB-C Control |
| Built-In Microphone | Yes |
| Built-In Speaker | No |
| Lens | |
| Focal Length | 3.7 to 73.4mm (35mm Equivalent: 29.3 to 601mm) |
| Maximum Aperture | f/1.8 to 2.8 |
| Max Optical Zoom | 20x |
| Max Digital Zoom | 20x ( in UHD 4K) 40x ( in 1080p) |
| Field of View | Horizontal: 63.3 to 3.5° Vertical: 38.9 to 2° Horizontal: 65.6 to 3.6° Vertical: 39.8 to 2° |
| Minimum Focus Distance | 0.4" / 1 cm (Wide) to 23.6" / 60 cm (Tele) |
| Networking | |
| Wireless | IR |
| Others | |
| Marka | Canon |
Price:
522.000,00 ₺
