| Specs | |
|---|---|
| Dimensions | 7.5 x 5.5 x 2.4" / 19.1 x 14 x 6.1 cm (W x D x H) |
| Color | Black |
| USB I/O | 1 x USB-C Female Input/Output,1 x USB-C (Power Only) Female Input |
| Compatibility | Not Specified by Manufacturer |
| Weight | 2 lb / 0.9 kg |
| Package Weight | 2.95 lb |
| Panel Type | LCD |
| Size | Not Specified by Manufacturer |

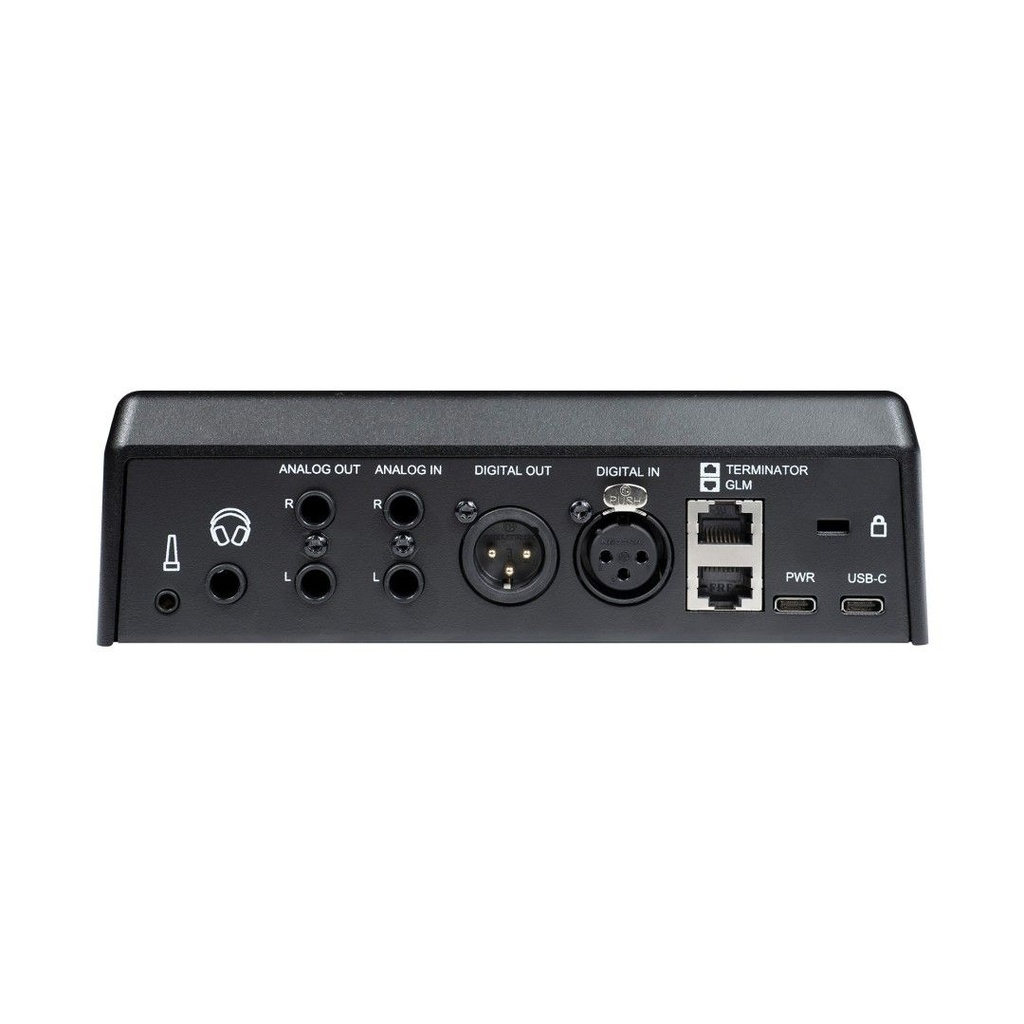

| Audio I/O | 1x XLR 3-Pin AES3/S/PDIF Input (Digital),2x 1/4" TRS Line Input (Balanced, 1 Stereo Pair),1x RJ45 Coaxial AES3 Input (GLM Network),1x XLR 3-Pin AES3 Output (Digital),2x 1/4" TRS Line Output (Balanced, 1 Stereo Pair),1x 1/4" TRS Headphone Output,1x RJ45 Coaxial AES3 Output (GLM Network Terminator) |
| Power Source | USB (Included) |
| Maximum Input Level | 12 or 24 dBu (Selectable) |
| Box Dimensions (LxWxH) | 10.4 x 9.8 x 3.9" |
| Dynamic Range | Analog Line I/O: >120 dB,Headphone Output: 126 dB,Digital I/O: 138 dB (A-Weighted) |
| DC Input Power | 5 VDC |
| Touchscreen | No |
| Audio Bandwidth | Up to 46 kHz |
| THD+N | >-110 dB |
| Latency | 2 to 3.2 ms |
| Power Consumption | 2.5 W (Maximum) |
| Others | |
| Marka | Genelec |
