| Display | |
|---|---|

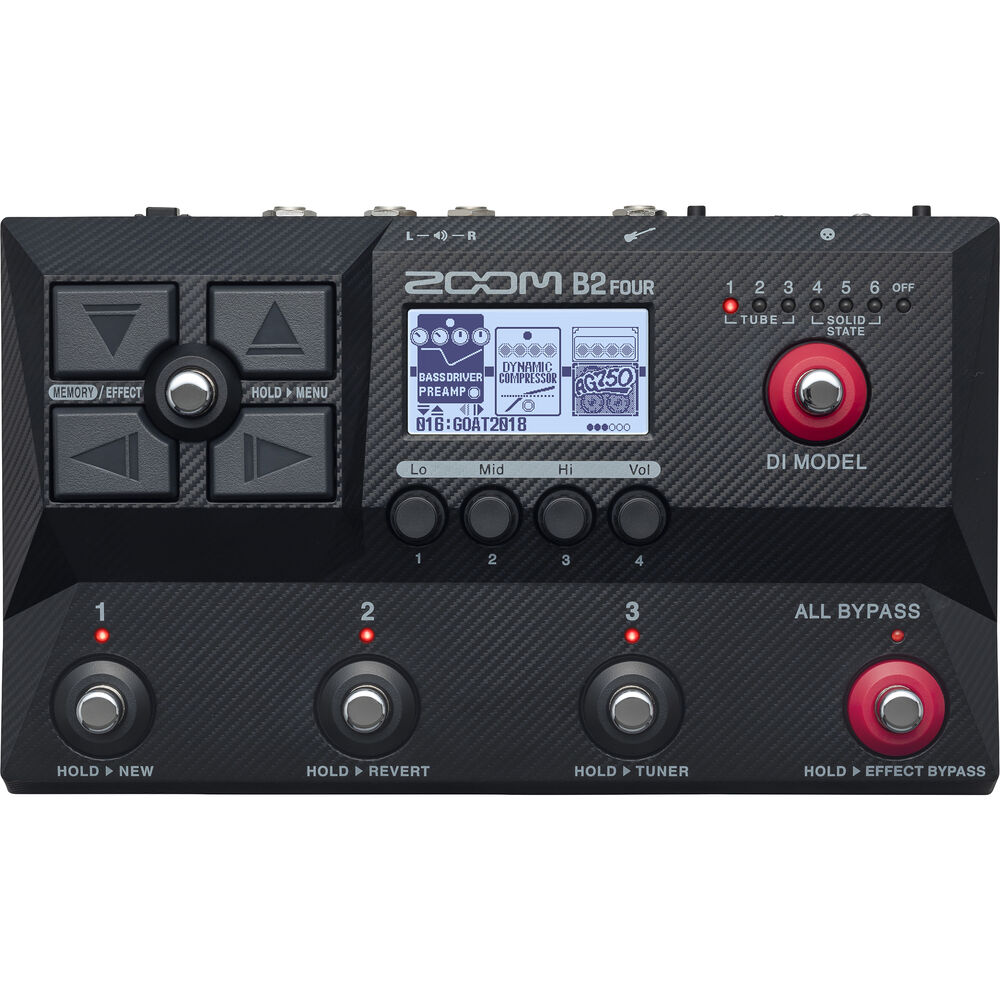

| Panel Type | LCD |
| Native Resolution | 256 x 128 |
| Touchscreen | No |
| General | |
| User Memory | 300 Patches |
| A/D and D/A Conversion | 24-Bit (128x Oversampling) |
| Digital Signal Processing (DSP) | 32-Bit |
| Maximum Headphone Output Level | 66 mW into 32 Ohm Load (33 mW per Channel) |
| S/N | 124 dB |
| Noise Floor | Left/Right and Headphones: -96 dBu Balanced Output: -100 dBu |
| Packaging Info | |
| Package Weight | 2.815 lb |
| Box Dimensions (LxWxH) | 12.5 x 6.8 x 3.3" |
| Physical | |
| Color | Black |
| Dimensions | 9.8 x 5.7 x 2.8" / 24.9 x 14.6 x 7.2 cm |
| Weight | 32 oz / 906 g |
| Power | |
| Power Source | AC Adapter with Power Brick (Included), USB (Not Included) |
| DC Input Power | 9 VDC at 500 mA |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Inputs/Outputs | |
| USB I/O | 1 x USB-C 2.0 Female Input/Output |

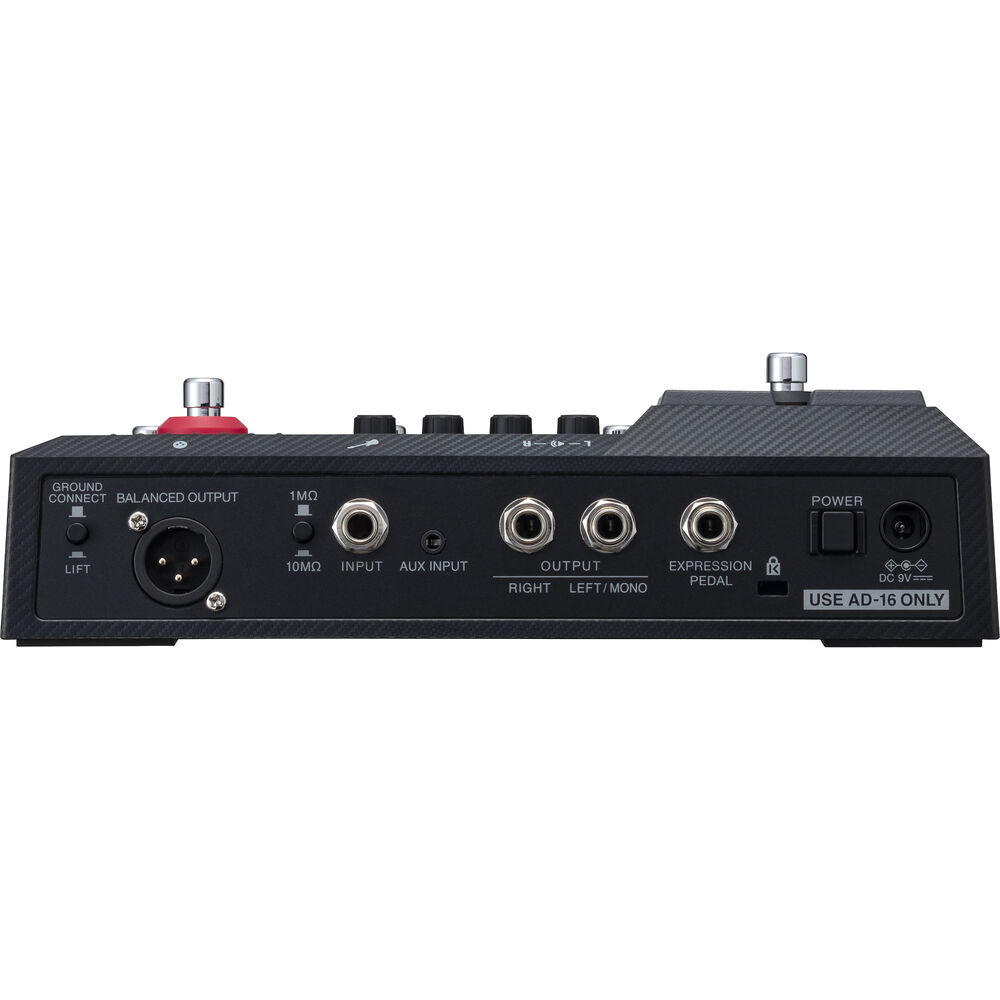

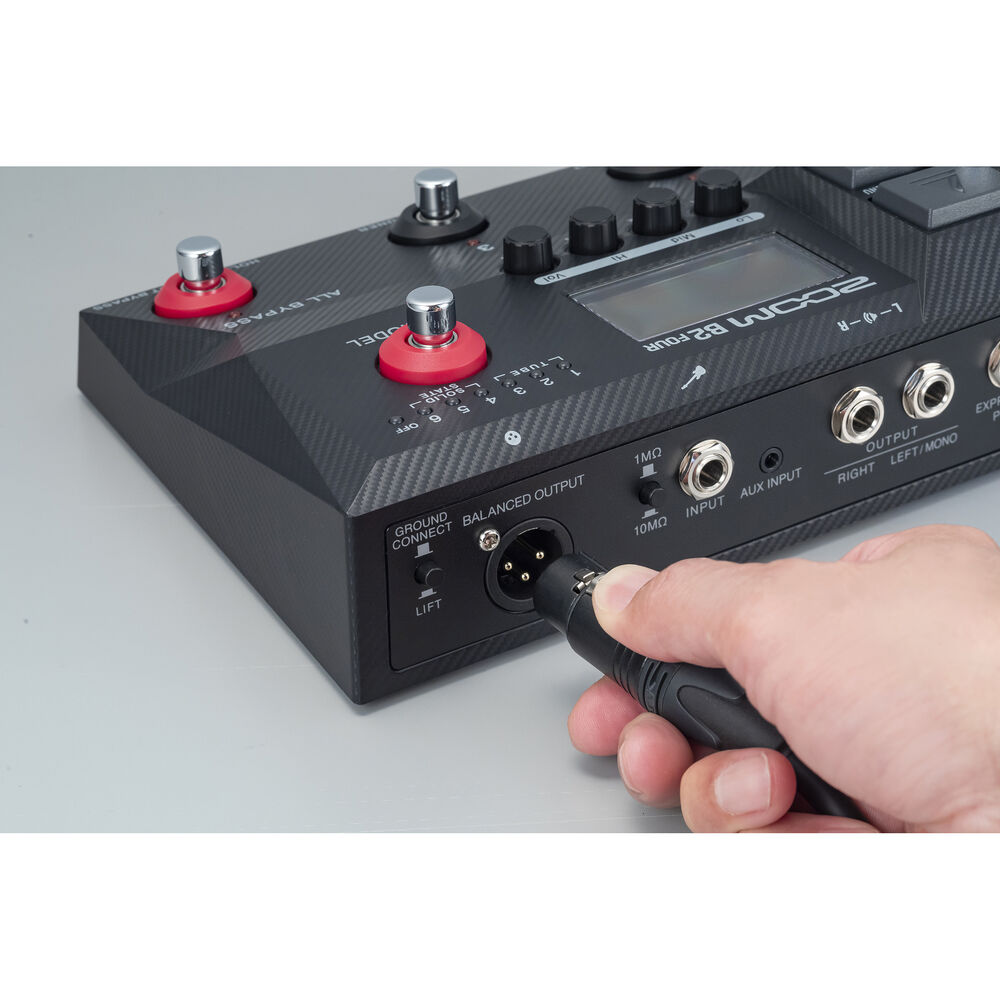

| Audio I/O | 1x XLR 3-Pin Line Output 2x 1/4" TS Line Output (1 Stereo Pair) 1x 1/8" / 3.5 mm TRS Headphone Output 1x 1/4" TS Hi-Z/Instrument/Line Input (Selectable Impedance: 1 or 10 Megohms) 1x 1/8" / 3.5 mm TRS Aux Input 1x 1/4" TRS Hi-Z/Instrument Input (Expression Pedal) |
| Wireless | |
| Mobile App Compatible | Yes (Requires Separate Adapter): iOS Only App Name: Handy Guitar Lab for B2 Four Functionality: Access Stored Files, Firmware Update |
| Others | |
| Marka | Zoom |
