| Display | |
|---|---|
| Native Resolution | 1280 x 720 |
| Touchscreen | No |
| General | |
| Controls | 1x 3-Axis, Pan/Tilt, Programmable, Multifunction, Auto-Focus, Manual-Focus, Camera Movement Speed, Focus Speed, White Balance Joystick Focus, Auto-Focus, Manual-Focus, Gain, Camera Selection, Preset Selection, Menu Buttons |
| Number of Supported Cameras | 255 Channels via IP |
| Supported Control Protocols | IP NDI NDI|HX2 NDI|HX3 ONVIF Pelco-D Pelco-P RS-232 RS-422 VISCA |
| Presets | 255 via IP, RS-232, VISCA, Pelco-P, Pelco-D |
| Other I/O | 1x USB-A Input/Output |
| IP Streaming | NDIHX, ONVIF: UHD 4K |

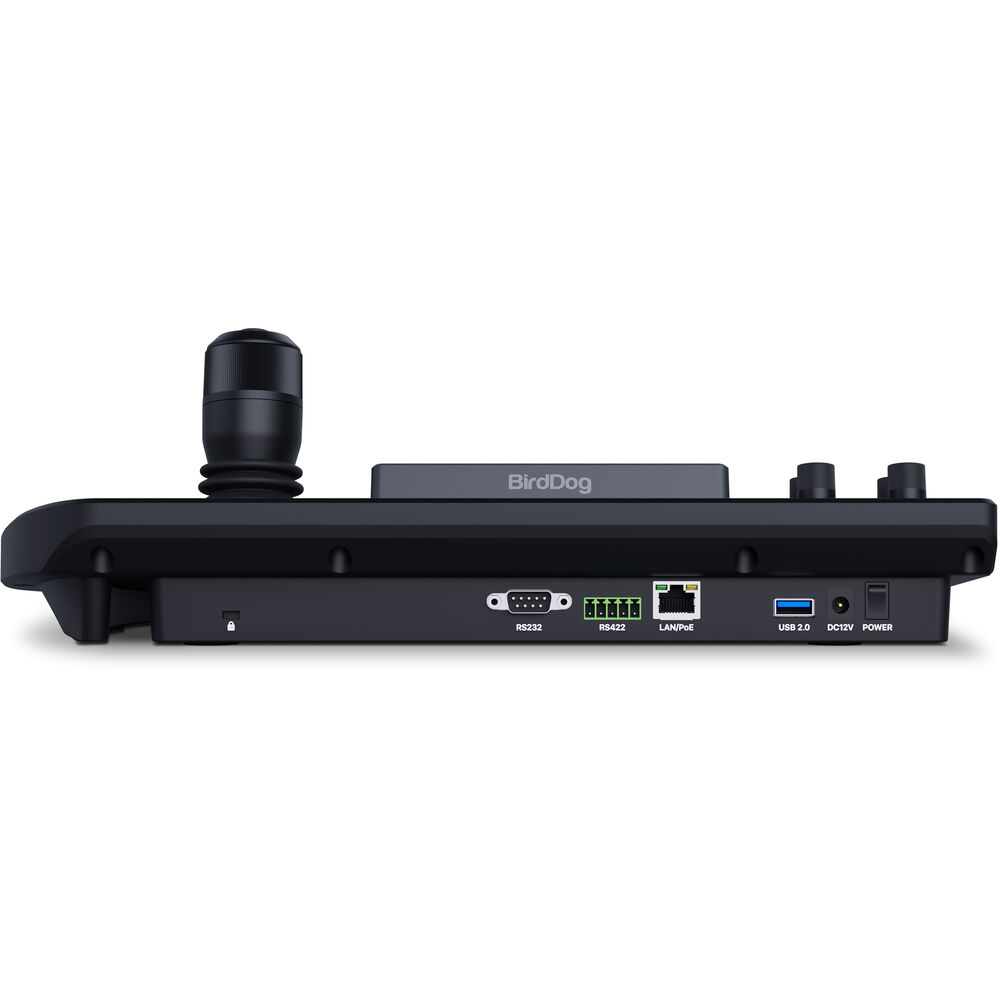

| Control I/O | 1x D-Sub 9-Pin (RS-232) Input/Output 1x Phoenix (RS-422) Input/Output 1x RJ45 (IP Control, LAN) Input/Output |
| Packaging Info | |
| Package Weight | 8.61 lb |
| Box Dimensions (LxWxH) | 16.2 x 8.7 x 6.9" |
| Physical | |
| Dimensions | 14.8 x 7 x 4.6" / 377 x 177 x 118 mm |
| Operating Conditions | 14 to 130°F / -10 to 54°C at 20 to 80% Humidity |
| Storage Conditions | 14 to 130°F / -10 to 54°C at 0 to 90% Humidity |
| Security Lock Support | No |
| Power | |
| Power Consumption | ≤5 W |
| Input Power | 12 VDC |
| PoE Support | Yes: PoE 802.3af |
| Power Connectors | 1x Barrel / Coaxial |
| Others | |
| Marka | BirdDog |
