| General | |
|---|---|
| Certifications | FCC, ICES |
| Dimensions | 7 x 1.8" / 17.8 x 4.6 cm |
| Weight | 2.65 lb / 1.2 kg |
| Operating Conditions | 41 to 104°F / 5 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 113°F / -20 to 45°C up to 90% Humidity |
| Packaging Info | |
| Package Weight | 3.275 lb |
| Box Dimensions (LxWxH) | 11.2 x 8.6 x 3.5" |
| Power | |
| Power Consumption | Power Supply: 100 to 240 VAC (75.3 W) |
| Power I/O | 1x USB-C Output 1x IEC C13 Input |
| Inputs/Outputs | |

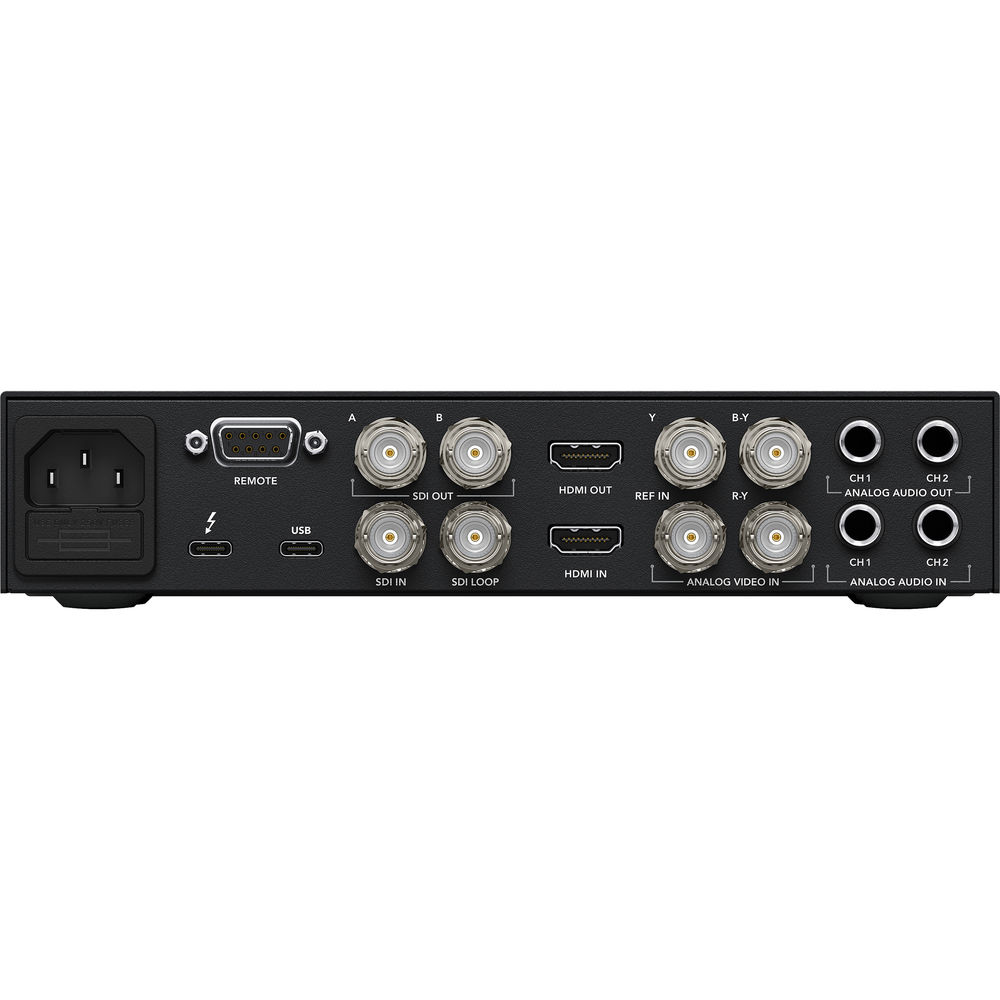

| Video I/O | Input 1x BNC (12G-SDI) 1x HDMI 2.0b 1x 3BNC (Component/Composite) 1x BNC Output 2x BNC (Program) 1x BNC (Loop Output) 1x HDMI 2.0b |
| System Connection | USB-C (Thunderbolt 3) |
| Audio I/O | Input 1x XLR 3-Pin 2x 1/4" Balanced TS Analog Output 2x 1/4" Balanced TS Analog 1x 1/8" / 3.5 mm TRRS Headphone/Microphone |
| Other I/O | Input/Output 1x USB-C 3.0 / 3.1/3.2 Gen 1 1x DE-9/DB-9 (Remote) |
| Format Support | |
| Video Resolution | BNC Input 4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps 3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps 2048 x 1080 at 23.98/24/25/29.97/30/50/59.94/60 fps 2048 x 1080PsF at 23.98/24/25/29.97/30 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080PsF at 23.98/24/25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps 720 x 576i at 50 fps 720 x 480i at 59.94 fps HDMI Input 4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps 3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps 720 x 576i at 50 fps 720 x 480i at 59.94 fps |
| Embedded Audio | SDI: 16-Channel HDMI: 8-Channel |
| Audio Format | Analog, Unspecified Digital Signal Input/Output |
| Standards | |
| HDR Support | Yes: HDR10/Hybrid Log Gamma |
| Broadcast System Compatibility | NTSC, PAL |
| Hardware | |
| OS Compatibility | macOS 11.1 to 12.0 or Later Windows 10 to 11 (64-Bit Only) Linux |
| Media/Memory Card Slot | Slot 1: SD/SDHC/SDXC (UHS-II) |
| Others | |
| Marka | Blackmagic Design |
