| General | |
|---|---|
| Dimensions | 4.52 x 3.63 x 0.90" (11.48 x 9.22 x 2.29 cm) |
| Weight | 7.61 oz (215.74 g) |
| Operating Temperature | 32 to 104° F (0 to 40 ° C) |
| Power Supply | 12 VDC |
| Storage Temperature | -4 to 113° F (-20 to 45 ° C) |
| Power Consumption | 8.4 W |
| SDI Video Input | 1 x SD/HD/3G/6G-SDI 1 x SD/HD/3G/6G-SDI-SDI redundant input |
| SDI Video Output | 1 x SD/HD/3G/6G-SDI |
| Format Support | SD: NTSC 525/29.97 and 525/23.98 PAL 625/25 HD: 720p 59.94/60 1080i 50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080p 23.98/24/25/29.97/30/50/59.94/60 2K: 2048x1080PsF 23.98/24/25 2048/1080p 23.98/24/25 UHD/4K 3840x2160p 23.98/24/25/29.97/30 4096x2160p 23.98/24/25/29.97/30 |
| Audio Input | 4 x 1/4" jacks 4 channels of balanced analog audio, or 8 channels of AES/EBU balanced digital audio |
| Multi-Rate Support | Auto detection of SD, HD, 2K, UHD, and 4K signals |
| SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE ST-2036, ITU-R BT.656, and ITU-R BT.601 |
| Reclocking | Yes |
| SDI Auto Switching | Automatically detects SD, HD, 3G, or 6G-SDI |
| Relative Humidity | 0 to 90% non-condensing |
| SDI Video Sampling | 4:2:2, 4:4:4 |
| SDI Audio Sampling | 24-bit, 48 kHz |
| SDI Color Space | YUV, RGB |
| SDI Video Rates | Switchable between SD, HD, 3G, and 6G-SDI |

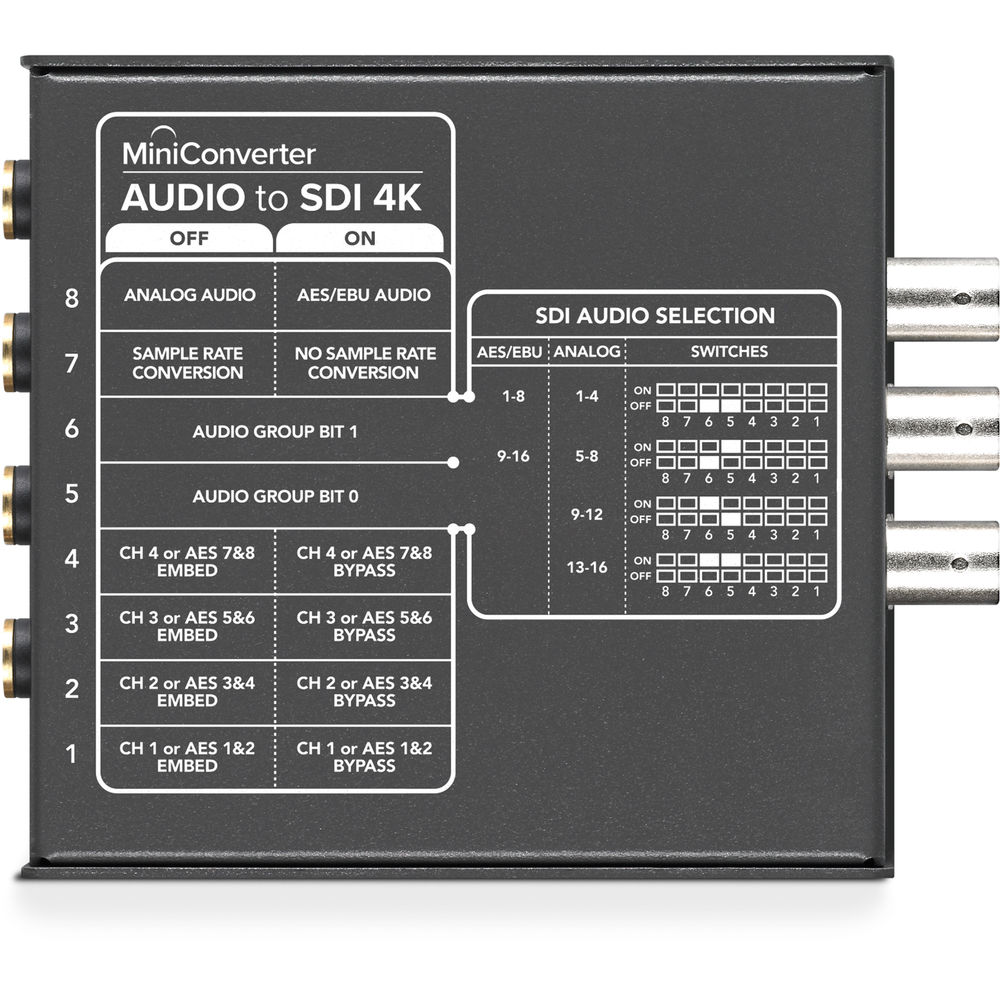

| Settings Control | DIP switches or USB software for Mac OS X and Windows |
| SDI Color Precision | 4:2:2, 4:4:4 |
| Operational Voltage Range | 12 to 31 VDC |
| Firmware Upgradeable | Via USB 2.0 |
| Packaging Info | |
| Package Weight | 1.19 lb |
| Box Dimensions (LxWxH) | 5.85 x 5.65 x 2.7" |
| Others | |
| Marka | Blackmagic Design |
Price:
23.213,68 ₺
