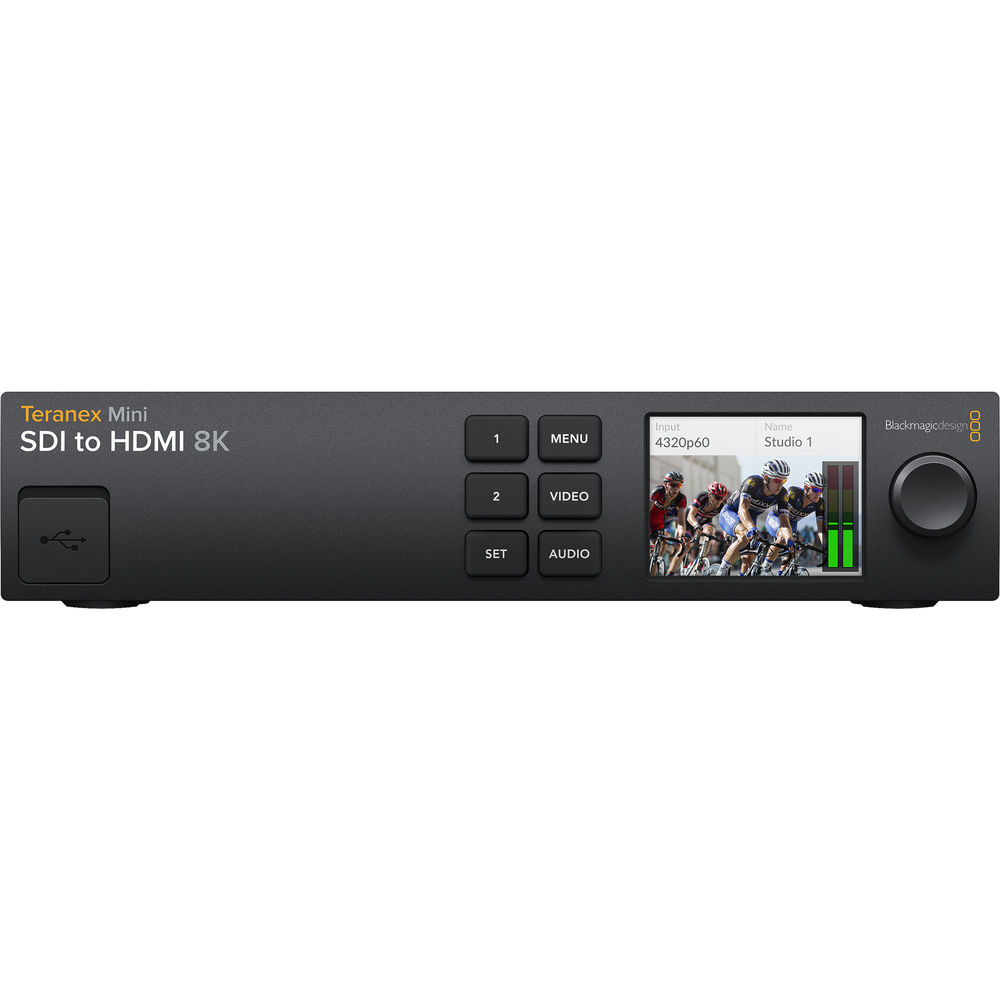

Blackmagic Design Teranex Mini - SDI to HDMI 8K HDR

Price:

99.669,20 ₺
Summer Special | Get 50% Off | Code #GET50
  2. Shop
  3. Prodüksiyon Ekipmanları
  4. Video Format Dönüştürücüler
  5. Blackmagic Design Teranex Mini - SDI to HDMI 8K HDR
  6. Video Format Dönüştürücüler
Blackmagic Design Teranex Mini - IP Video 12G
Blackmagic Design Teranex Mini - IP Video 12G
39.058,80 ₺
39.058,80 ₺
Blackmagic Design Teranex Mini - SDI to DisplayPort 8K HDR
Blackmagic Design Teranex Mini - SDI to DisplayPort 8K HDR
101.109,67 ₺
101.109,67 ₺

Blackmagic Design Teranex Mini - SDI to HDMI 8K HDR

(0 review)
99.669,20 ₺ 99.669,20 ₺

  • Marka - Blackmagic Design
  • Dimensions
  • Weight
  • Package Weight
  • Box Dimensions (LxWxH)
  • OS Compatibility
  • Power Consumption
  • Operating Temperature
  • Embedded Audio
  • Power I/O
  • Other I/O
  • Operating Humidity
  • Video Inputs
  • Input Video Format
  • Video Standard Compliance
  • Output Video Format
  • Display Size
  • Audio Outputs
  • Video Outputs
  • Storage Temperature
Blackmagic Design
Şartlar ve Koşullar
Tax Free Zone kapsamında satın alabilirsiniz.
Nakliye: 2-3 İş Günü
Bize Ulaşın
General
Dimensions 8.27 x 6.93 x 1.73" / 21.01 x 17.6 x 4.39 cm
Weight 2.6 lb / 1.18 kg
Packaging Info
Package Weight 3 lb
Box Dimensions (LxWxH) 10.7 x 8.6 x 3.5"
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 0 to 90%
Storage Temperature -4 to 140°F / -20 to 60°C
Power
Power Consumption Device: 100 to 240 VAC (25 W)
Power I/O 1x IEC C14 Input

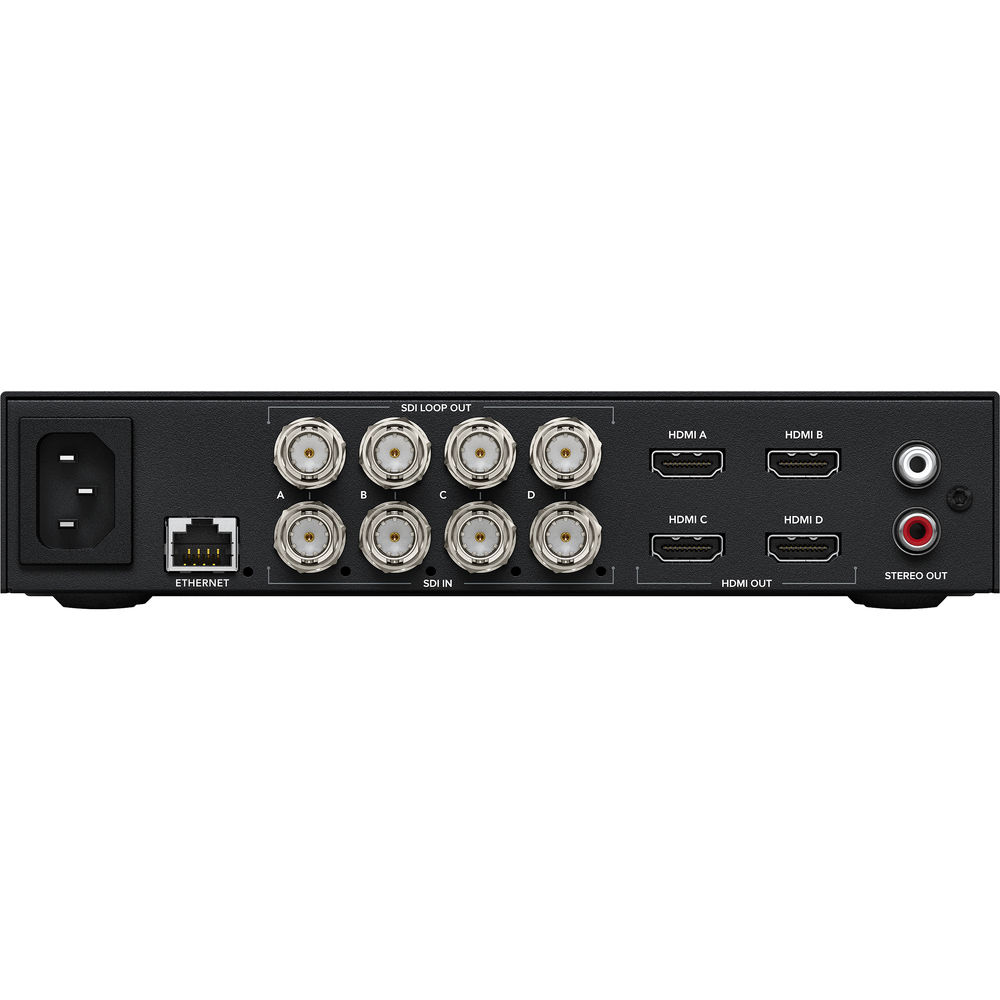

Inputs/Outputs
Other I/O 1x RJ45 PoE 1x USB-C
Video Inputs 4x BNC (12G-SDI) 4x HDMI
Audio Outputs 2x RCA
Video Outputs 4x BNC (12G-SDI) (Loop Output) 4x HDMI
Format Support
Embedded Audio SDI: 16-Channel HDMI: 8-Channel
Input Video Format SDI (4:4:4/4:2:2 RGB, YUV) DCI 8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF at 23.98/24/25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps
Output Video Format SDI (4:4:4/4:2:2 RGB, YUV) DCI 8K at 25/29.97/30/47.95/48/50/59.94/60 fps 8K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF 23.98/24/25/29.97/30 fps HDMI (4:4:4/4:2:2 RGB, YUV) 8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps
Standards
Video Standard Compliance SMPTE 259M/292M/296M/372M/424M-B/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10
Hardware
OS Compatibility Windows 8.1 Windows 10 macOS 10.13 macOS 10.14 or Later
Display Size 2.2"
