| General | |
|---|---|

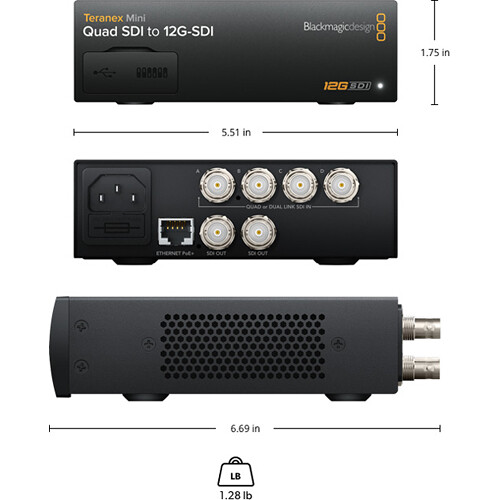

| Dimensions | 5.5 x 6.7 x 1.75" / 140 x 170 x 44 mm |
| Weight | 1.3 lb / 580 g |
| Power Supply | Built-in AC power supply, required IEC C14 power cable not included PoE+ (Power over Ethernet) |
| Power Consumption | 16 W |

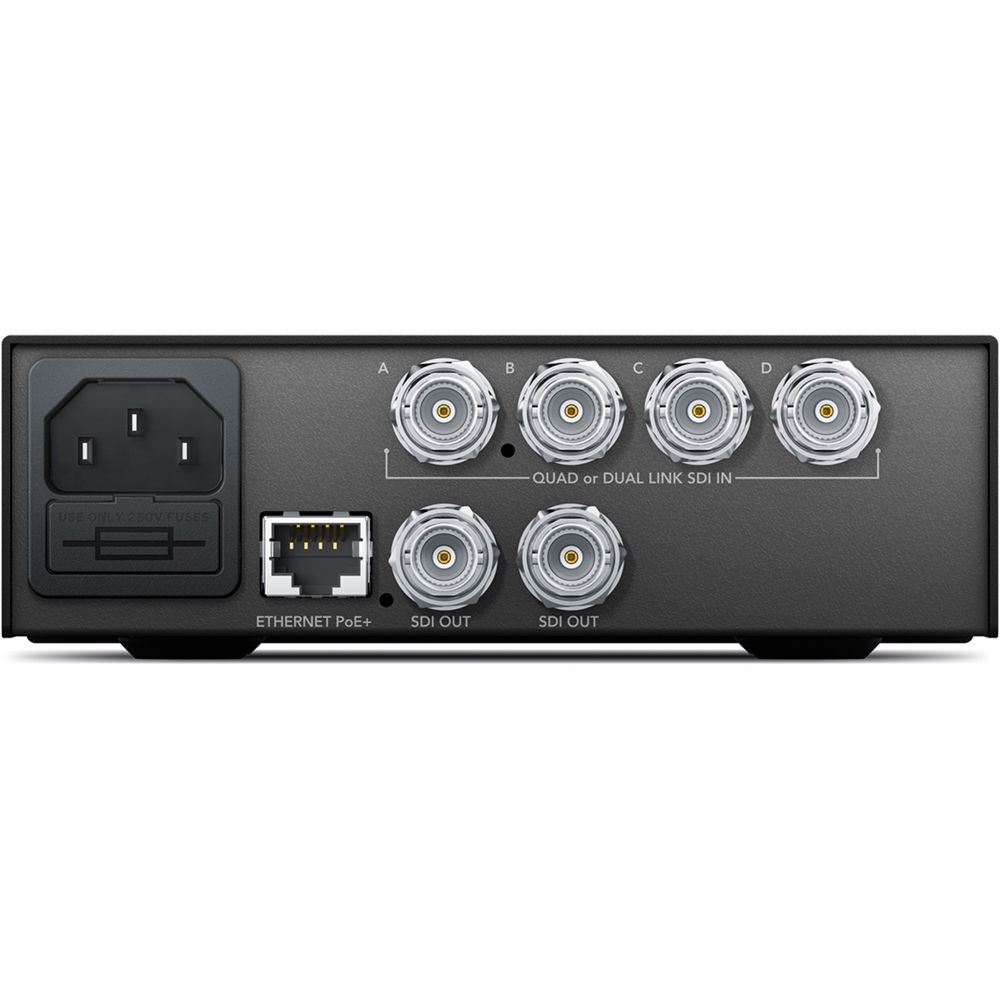

| Video Inputs | 4 x BNC 12G-SDI |
| Format Support | 4096 x 2160 23.98/24/25/29.97/30 3840 x 2160 23.98/24/25/29.97/30/50/60 2048 x 1080p 23.98/24/25 2048 x 2160PsF 23.98/24/25 1080p 23.98/24/25/29.97/30/50/59.94/60 1080PsF 23.98/24/25 1080i 50/59.94/60 720p 50/59.94/60 NTSC PAL |
| Video Outputs | 2 x BNC 12G-SDI |
| Other I/O | 1 x RJ-45 Ethernet 1 x USB |
| Re-clocking | Yes |
| Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C Storage Temperature: -4 to 140°F / -20 to 60°C Relative Humidity: 0-90%, non-condensing |
| SDI Video Sampling | 4:2:2, 4:4:4 |
| SDI Audio Sampling | 24-bit, 48 kHz |
| SDI Color Space | YUV, RGB |

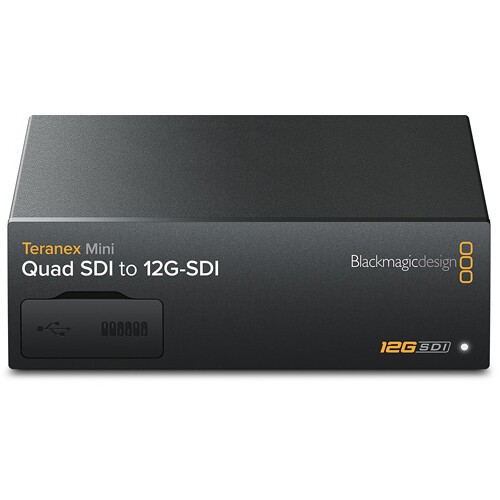

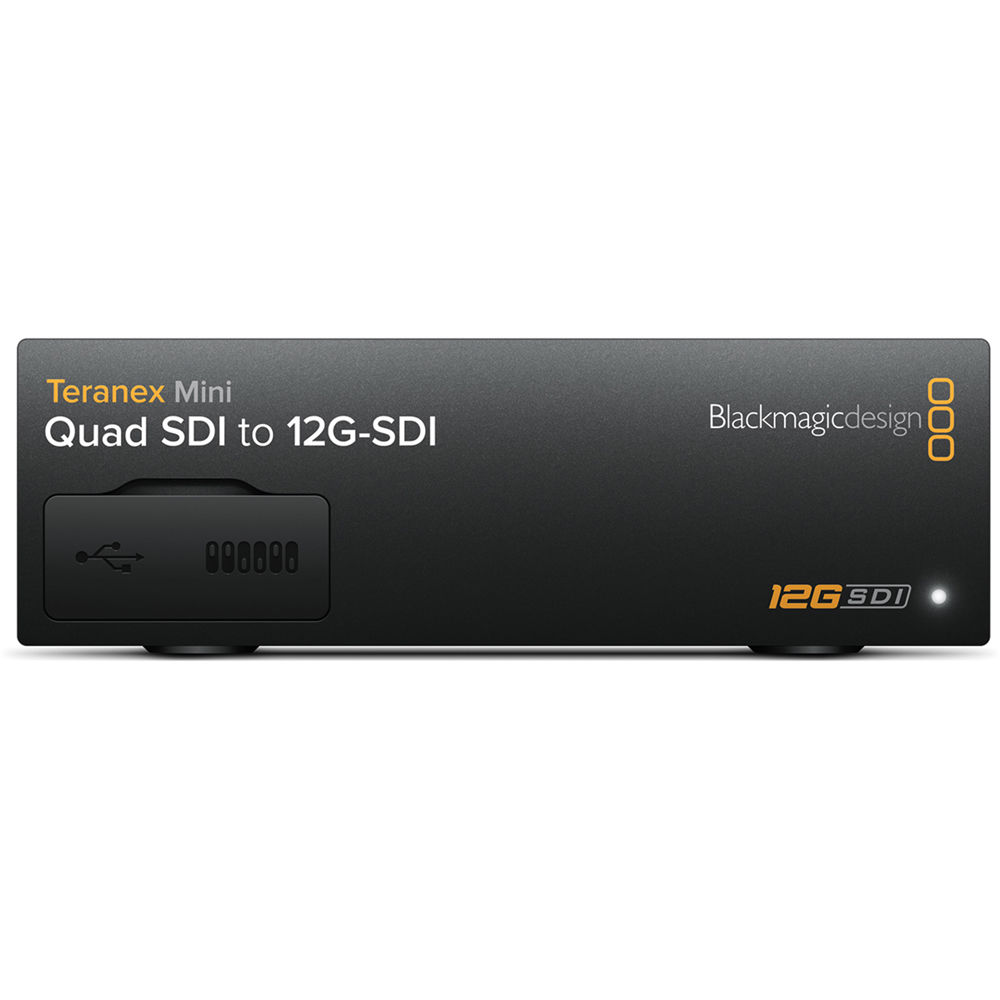

| Settings Control | Front-panel mini switches USB Ethernet Front-mounted smart panel (available separately) |
| Operational Voltage Range | 90-240 VAC |
| Packaging Info | |
| Package Weight | 1.935 lb |
| Box Dimensions (LxWxH) | 9 x 7.85 x 2.3" |
| Others | |
| Marka | Blackmagic Design |
