| General | |
|---|---|
| Dimensions | 6.69 x 5.51 x 1.75" / 16.99 x 14 x 4.45 cm |
| Weight | 1.28 lb / 581 g |
| Packaging Info | |
| Package Weight | 1.955 lb |
| Box Dimensions (LxWxH) | 9.05 x 7.9 x 2.35" |
| Environmental | |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Operating Humidity | 0 to 90% |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Power | |
| Power Consumption | Device: 90 to 240 VAC (16 W) |
| Power I/O | 1x IEC C14 Input |
| Inputs/Outputs | |
| Other I/O | 1x RJ45 LAN, PoE Input/Output 1x USB-A Firmware Input |
| Video Inputs | 1x BNC Female |
| Audio Inputs | No |
| Audio Outputs | No |

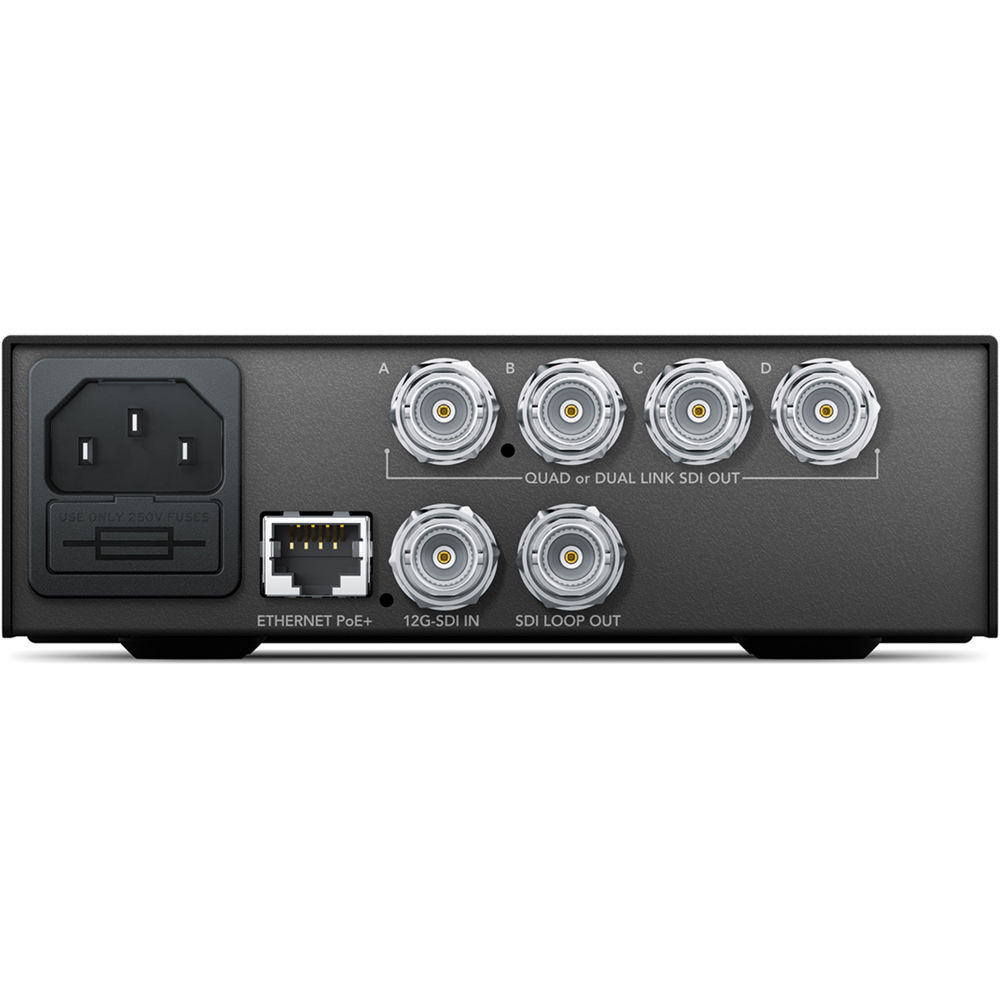

| Video Outputs | 4x BNC (3G-SDI) Female 1x BNC (12G-SDI) Female (Loop Output) |
| Expansion Slots | No |
| Format Support | |
| Embedded Audio | SDI: 16-Channel |
| Input Video Format | SDI (4:4:4/4:2:2 RGB, YUV) DCI 4K at 23.98/24/25 fps UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K at 23.98/24/25 fps DCI 2KPsF at 23.98/24/25 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF at 23.98/24/25 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps |
| Output Video Format | SDI (4:4:4/4:2:2 RGB, YUV) DCI 4K at 23.98/24/25 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K 23.98/24/25 fps DCI 2KPsF 23.98/24/25 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 59.94 fps |
| Standards | |
| HDR Support | Not Specified by Manufacturer |
| Video Standard Compliance | SMPTE 259M/292M/296M/372M/424M-A/424M-B/425M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10 |
| Hardware | |
| Wireless | No |
| Others | |
| Marka | Blackmagic Design |
