| General | |
|---|---|
| Dimensions | 6.69 x 5.51 x 1.75" / 16.99 x 14 x 4.45 cm |
| Weight | 1.28 lb / 581 g |
| Operating Conditions | 32 to 104°F / 0 to 40°C at 0 to 90% Humidity |
| Storage Conditions | -18 to 140°F / -28 to 60°C |
| Packaging Info | |
| Package Weight | 1.9 lb |
| Box Dimensions (LxWxH) | 9 x 7.8 x 2.5" |
| Power | |
| Power Consumption | Device: 90 to 240 VAC (16 W) |
| Power I/O | 1x RJ45 (48 VDC ) Input 1x IEC C14 Input |
| PoE Support | Yes: PoE+ 802.3at |
| Inputs/Outputs | |

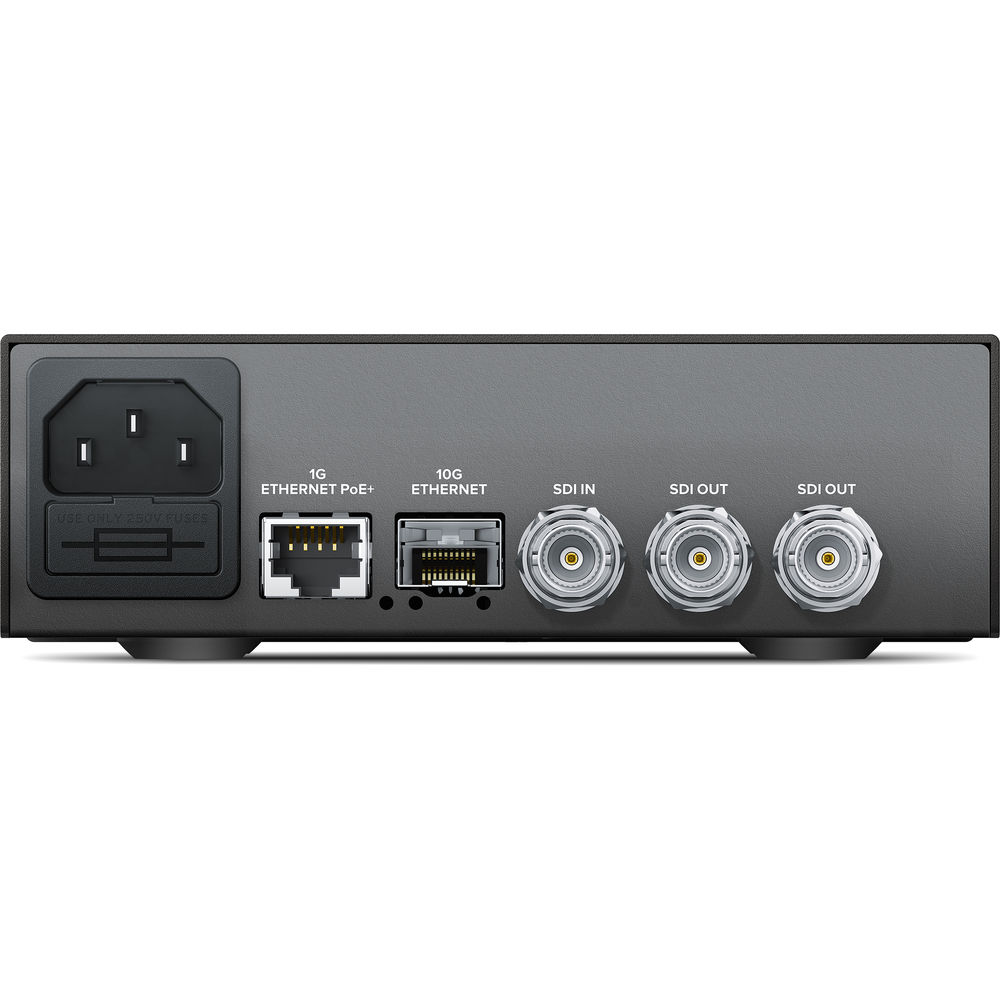

| Video I/O | Input 1x BNC (12G-SDI) Output 2x BNC (12G-SDI) |
| Other I/O | Input/Output 1x RJ45 |
| Expansion Slots | 1x SFP Slot |
| Format Support | |
| Video Resolution | SDI Input (10-Bit 4:4:4/4:2:2 RGB, YUV) 4096 x 2160 at 23.98/24/25 fps 3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps 2048 x 1080 at 23.98/24/25 fps 2048 x 1080PsF at 23.98/24/25 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080PsF at 23.98/24 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps SDI Output (10-Bit 4:4:4/4:2:2 YUV) 4096 x 2160 at 23.98/24/25 fps 3840 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps 2048 x 1080 at 23.98/24/25 fps 2048 x 1080PsF at 23.98/24/25 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080PsF at 23.98/24 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps |
| Embedded Audio | LAN (RJ45)/SDI |
| Reclocking | No |
| Standards | |
| Broadcast System Compatibility | NTSC, PAL |
| Video Standard Compliance | ITU-R: BT.601/BT.656 SMPTE: 259M/292M/296M/310M/425M |
| Hardware | |
| OS Compatibility | macOS Windows |
| Media/Memory Card Slot | Single Slot: SD (Unspecified Type) |
| IP Streaming | |
| IP Video | Encoding via TICO 4096 x 2160 Decoding 4096 x 2160 |
| Others | |
| Marka | Blackmagic Design |
