| Display | |
|---|---|
| Display | 2.2" LCD |
| General | |
| Dimensions | 19 x 9.22 x 1.74" / 48.3 x 23.42 x 4.42 cm |
| Weight | 8.22 lb / 3.73 kg |
| Operating Conditions | 41 to 104°F / 5 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 113°F / -20 to 45°C up to 90% Humidity |
| Rack Form Factor | 1 U |
| Packaging Info | |
| Package Weight | 9.035 lb |
| Box Dimensions (LxWxH) | 21.6 x 11.3 x 3.5" |
| Power | |
| Power I/O | 2x IEC C14 (100 to 240 VAC ) Input |
| Inputs/Outputs | |

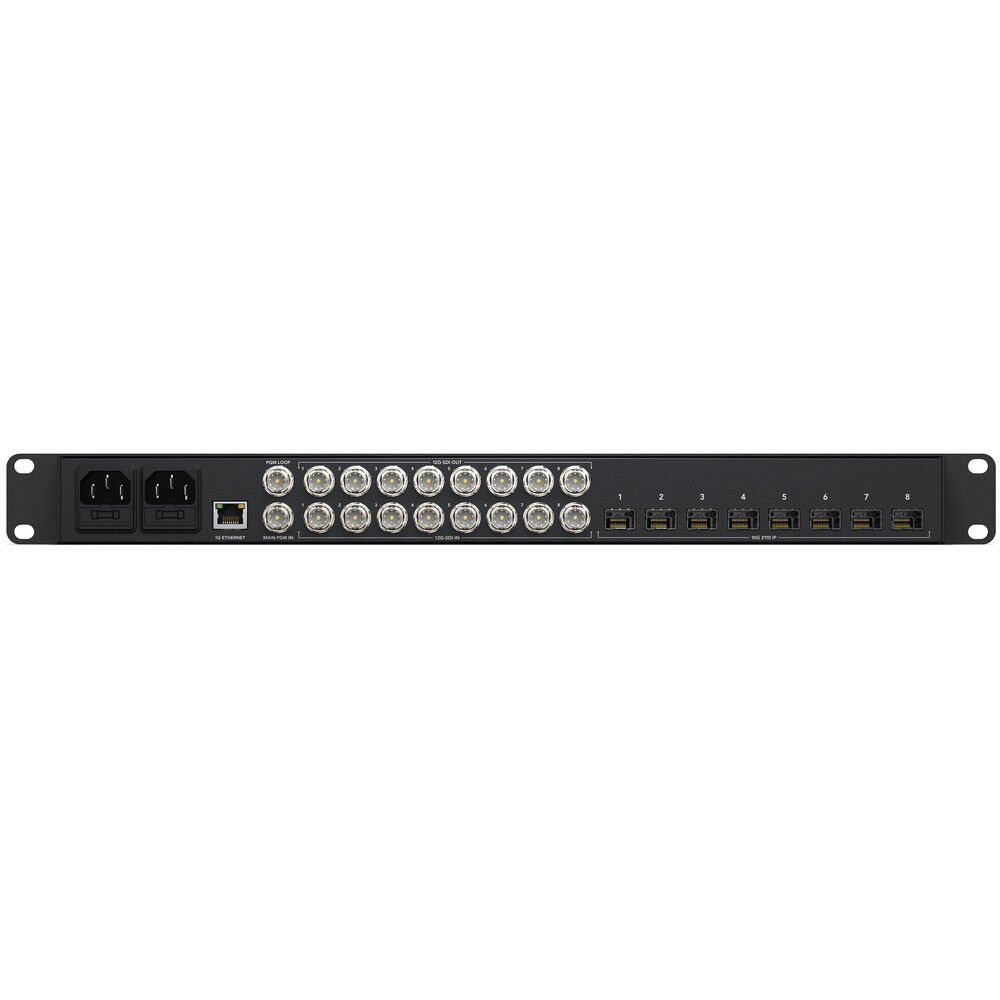

| Video I/O | Input 8x BNC (12G-SDI) Female 1x BNC (12G-SDI) Female (Program) Output 8x BNC (12G-SDI) Female 1x BNC (12G-SDI) Female (Loop Output) |
| Audio I/O | Output 1x 1/4" TRS Stereo Analog Female |
| Other I/O | Input 1x USB-C 3.0 / 3.1/3.2 Gen 1 |
| Expansion Slots | 8x SFP Slot (Occupied by 10 Gb/s SMPTE 2110 IP SFP) |
| Format Support | |
| Video Resolution | BNC Input/Output (4:2:2 YUV) 4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080PsF at 25/29.97/30 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps |
| Embedded Audio | LAN (RJ45)/SDI |
| Standards | |
| HDR Support | Yes |
| HDCP Support | No |
| Video Standard Compliance | SMPTE: ST-2110 |
| Hardware | |
| OS Compatibility | macOS 13 or Later Windows 10 to 11 |
| Wireless | No |
| Others | |
| Marka | Blackmagic Design |
Price:
185.321,57 ₺
