| General | |
|---|---|
| Dimensions | 5 x 3.4 x 1" / 127 x 87 x 26 mm |
| Weight | 12.35 oz / 350.00 g |
| Operating Conditions | 14 to 113°F / -10 to 45°C |
| Environmental Resistance | No |
| Status Display | Yes |
| Packaging Info | |
| Package Weight | 2.74 lb |
| Box Dimensions (LxWxH) | 12.8 x 8.4 x 4.2" |
| Power | |
| Power Consumption | 11 W |
| Input Power | 6 to 18 VDC |
| Battery | 1x L-Series Mount on Included, Interchangeable Plate |
| Inputs/Outputs | |
| Video I/O | 1x BNC (3G-SDI) Input 1x HDMI 1.4 Input 1x BNC (3G-SDI) Loop Output |
| Antenna I/O | 2x RP-SMA Female |
| Audio I/O | No |
| Embedded Audio | HDMI/SDI |
| Power I/O | 1x USB-C Input 1x Barrel Input |
| Encryption | Yes: 256-Bit AES |
| Format Support | |
| Video Format | HDMI/SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/25/24/23.98 720p: 60/59.94/50 |
| Audio Format | 16-Bit 48 kHz PCM Audio |
| Timecode Support | No |
| Wireless Video Compression | Compressed |
| Wireless | |
| Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) |
| Bluetooth | No |
| Mobile App Compatible | No |

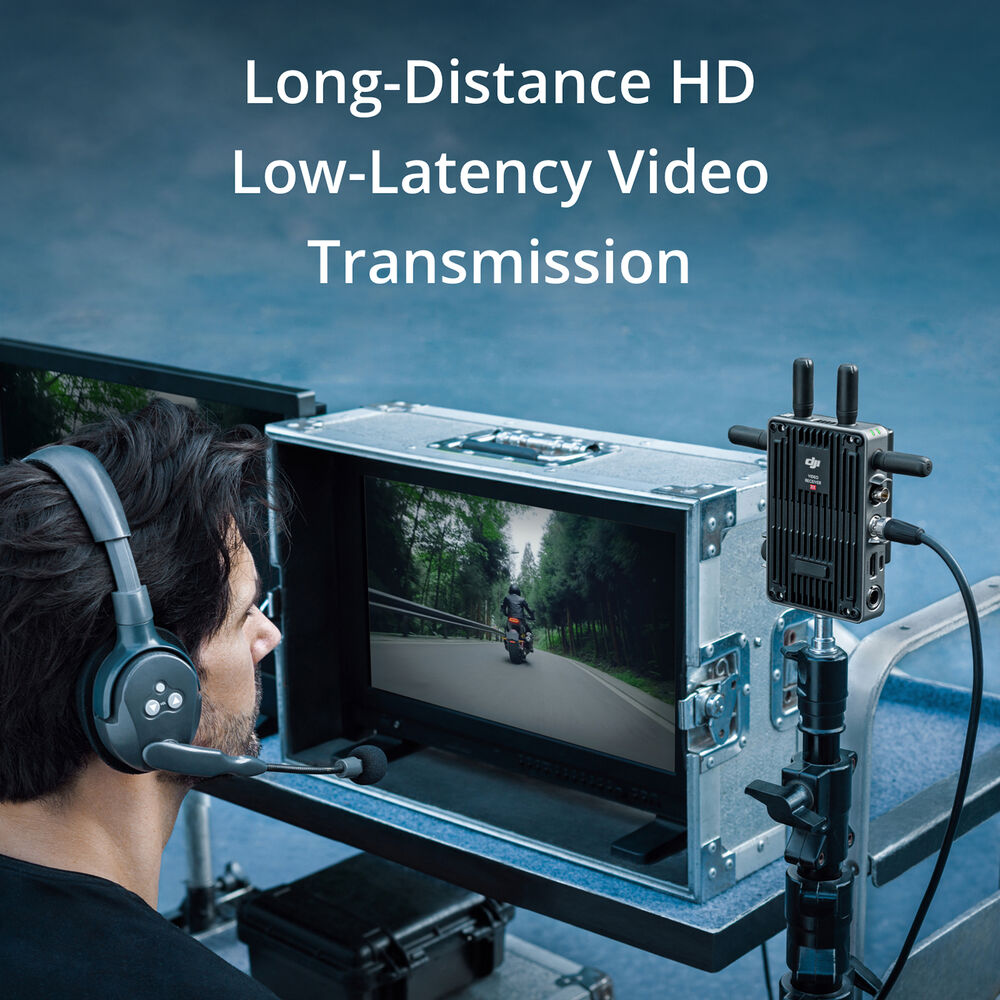

| Wireless Range | 3.7 Miles / 6 km (Line-of-Sight) |

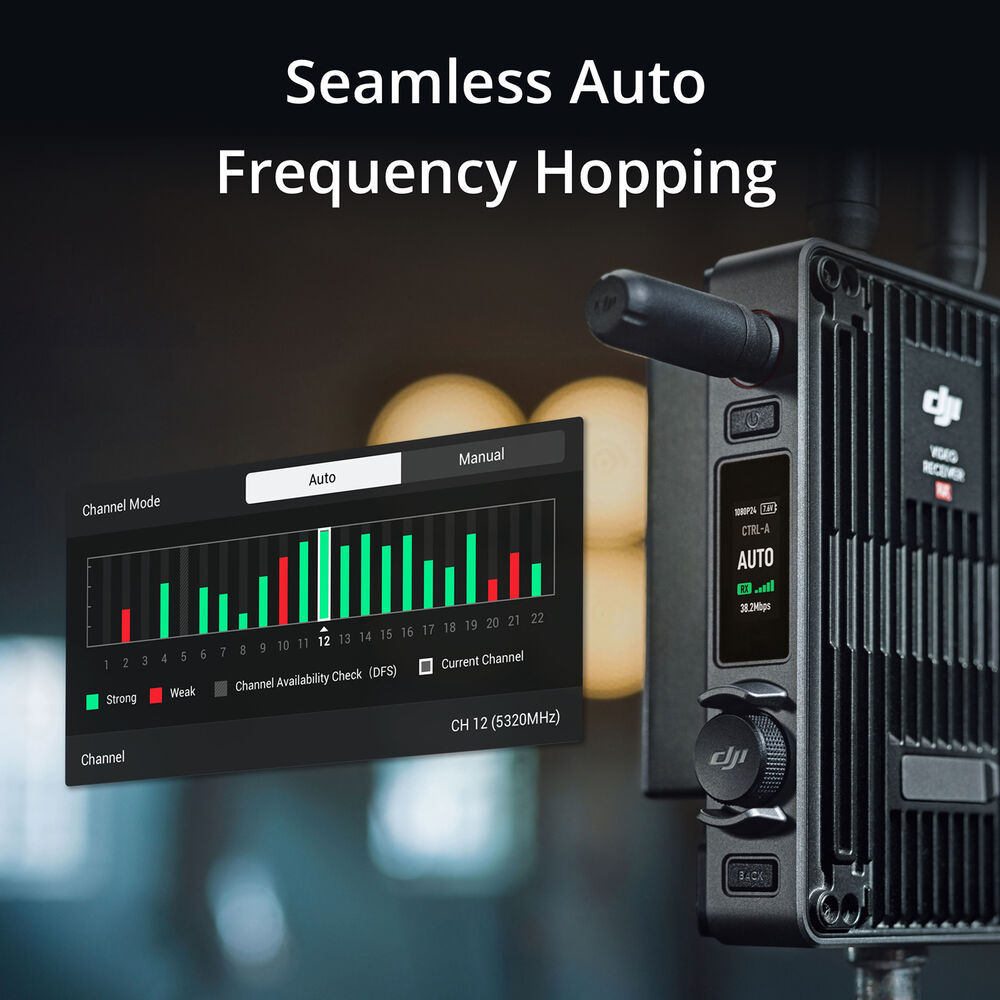

| # of Channels | 23 |
| Channel Bandwidth | 40 MHz |
| Frequency Range | Non-DFS Frequencies 2.4 to 2.48 GHz 5.15 to 5.25 GHz 5.72 to 5.85 GHz DFS Frequencies 5.25 to 5.35 GHz 5.47 to 5.6 GHz 5.65 to 5.72 GHz |
| Latency | 68 ms |
| RF Power | < 33 dBm |
| Cellular Support | No |
| Mounting | |
| Tripod/Accessory Mounting | 1x Cold Shoe 1x 3/8"-16 Female 2x 1/4"-20 Female |
| Others | |
| Marka | DJI |
