| General | |
|---|---|
| Weight | 1.1 lb / 478 g (Body Only) 1.2 lb / 530 g (With Battery, Recording Media) |
| Operating Conditions | 14 to 104°F / -10 to 40°C at 10 to 80% Humidity |
| Materials | Magnesium Alloy |
| Shoe Mount | 1x Hot Shoe |
| Battery | 1x Rechargeable Lithium-Ion, 7.2 VDC, 1200 mAh (Included) • Approx. 290 Shots |

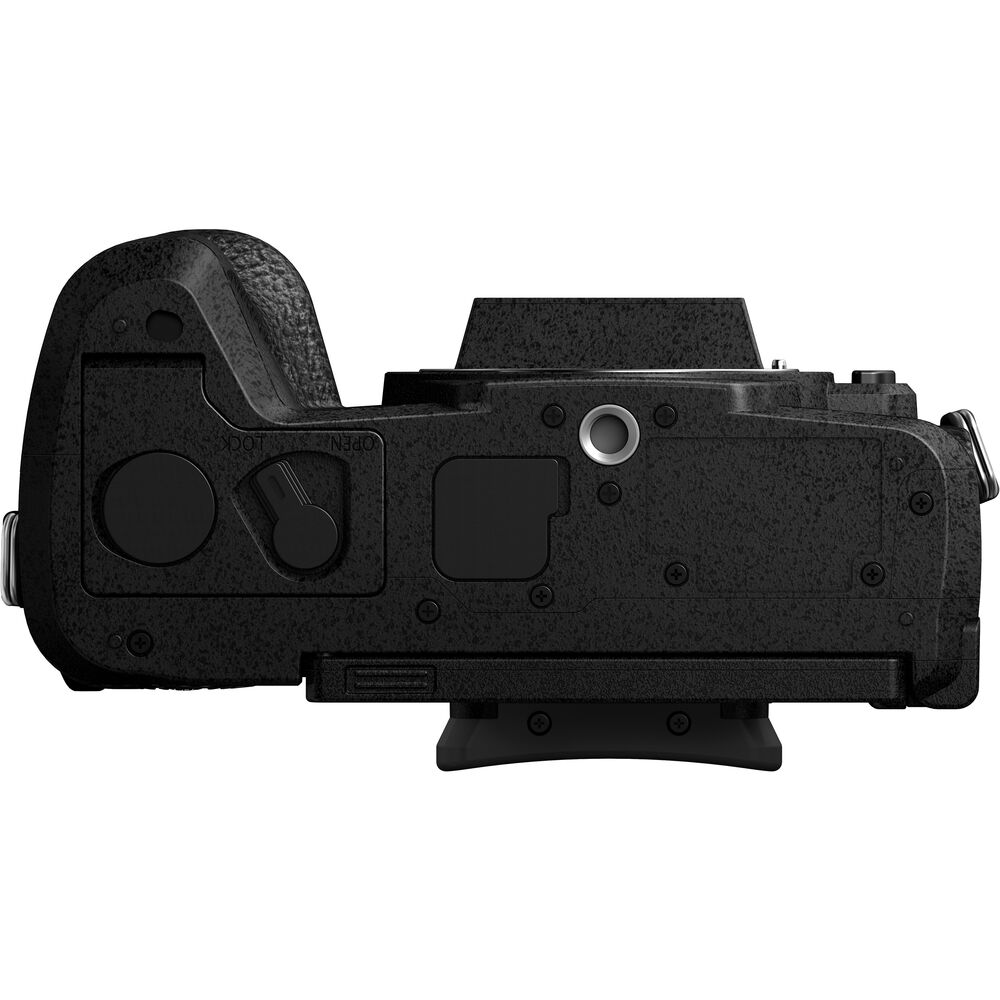

| Tripod Mount | 1x 1/4"-20 Female (Bottom) |
| Dimensions (W x H x D) | 5.1 x 3.7 x 3" / 130.4 x 93.5 x 77.4 mm |
| PoE Support | Yes |
| Packaging Info | |
| Package Weight | 2.56 lb |
| Box Dimensions (LxWxH) | 10.9 x 5.7 x 5.7" |
| Imaging | |
| Lens Mount | Micro Four Thirds |
| Image Sensor | 17.3 x 13 mm (Four Thirds) MOS |
| Effective Sensor Resolution | Effective: 20.3 Megapixel (8176 x 1920) Actual: 21.77 Megapixel |
| Image Stabilization | Sensor-Shift, 5-Axis |
| Sensor Crop (35mm Equivalent) | Crop Factor: 2x *Additional Crop Occurs in Select Video Modes |
| Built-In ND Filter | No |
| Capture Type | Stills & Video |
| Video Capture | |
| Internal Recording | MP4 3840 x 2160 at 23.98/29.97 fps (100 Mb/s) 1920 x 1080p at 29.97/59.94 fps (28 to 100 Mb/s) 1280 x 720 at 29.97 fps (10 Mb/s) AVCHD 1920 x 1080p at 23.98/59.94 fps (24 to 28 Mb/s) 1920 x 1080i at 59.94 fps (17 to 29.98 Mb/s) |
| Video Output | 4096 x 2160 |
| Fast-/Slow-Motion Support | Slow-Motion Only |
| Audio Recording | AAC Audio |
| Recording Limit | No |
| Built-In Microphone | Stereo |
| IP Streaming | No |
| Exposure Control | |
| Shutter Type | Mechanical Focal Plane Shutter and Electronic Rolling Shutter |
| ISO/Gain Sensitivity | Photo Native: 200 to 25,600 (100 to 25,600 Extended) Video Native: 200 to 6400 (100 to 6400 Extended) |
| Shutter Speed | Electronic Shutter 1 to 1/16000 Second Electronic Front Curtain Shutter 1/2000 to 60 Seconds |
| Bulb/Time Mode | Bulb Mode |
| Exposure Modes | Aperture Priority, Auto, Manual, Program, Shutter Priority |
| White Balance | Presets: Auto, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set 1, White Set 2, White Set 3, White Set 4 |
| Metering Method | Center-Weighted Average, Multiple, Spot |
| Exposure Compensation | -5 to +5 EV (1/3 EV Steps) |
| Self-Timer | 10-Second Delay |
| Metering Range | 0 to 18 EV |
| Continuous Shooting | Up to 9 fps at Maximum Resolution for up to 30 Frames (Raw) / 600 Frames (JPEG) |
| Interval Recording | Yes |
| Interface | |

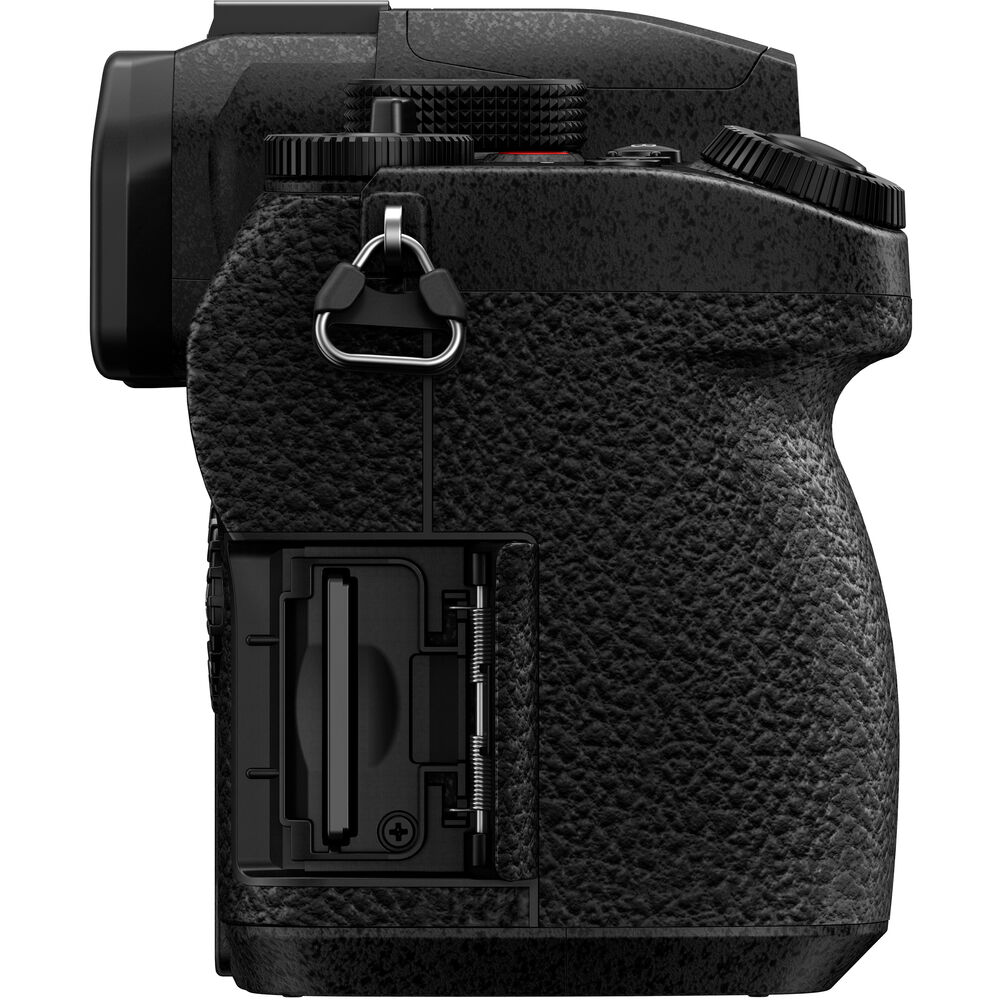

| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-II) |
| Internal Storage | No |

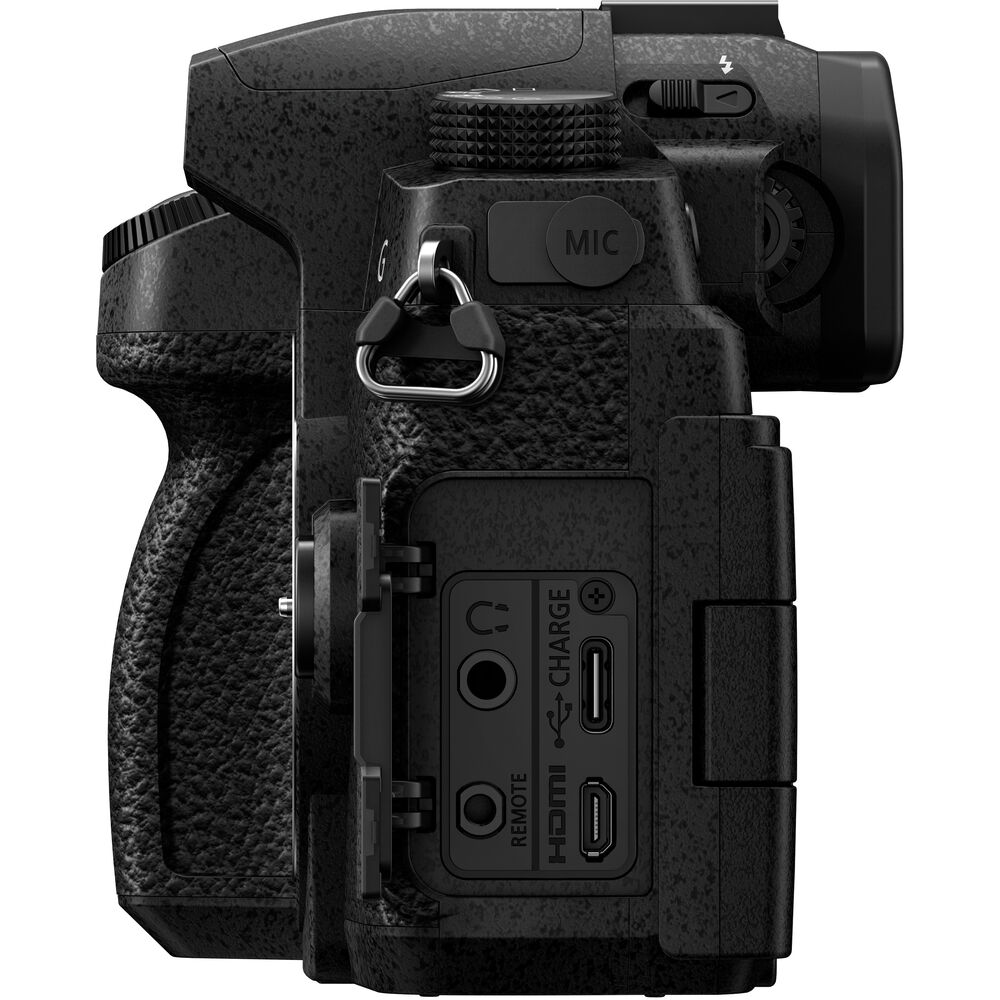

| Video I/O | 1x Micro-HDMI Output |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Headphone Output 1x 1/8" / 3.5 mm TRS Stereo Microphone Input |
| Power I/O | 1x USB-C Input |
| Other I/O | 1x 2.5 mm Sub-Mini (Remote) Input 1x USB-C (Data) Output (Shared with Power Input) |
| Wireless | Wi-Fi 4 (802.11n) / Bluetooth 5.0 |
| Mobile App Compatible | Yes: Android & iOS App Name: Panasonic Image App Functionality: Access Stored Files, Remote Control, View Live Feed |
| Global Positioning (GPS, GLONASS, etc.) | GPS *Via Connected Smartphone |
| Focus | |
| Focus Mode | Automatic, Continuous-Servo AF, Flexible, Manual Focus |
| Focus Type | Auto and Manual Focus |
| Autofocus Points | Contrast Detection: 49 |
| Still Image Capture | |
| Aspect Ratio | 1:1, 3:2, 4:3, 16:9 |
| Image File Format | JPEG, Raw |
| Monitor | |

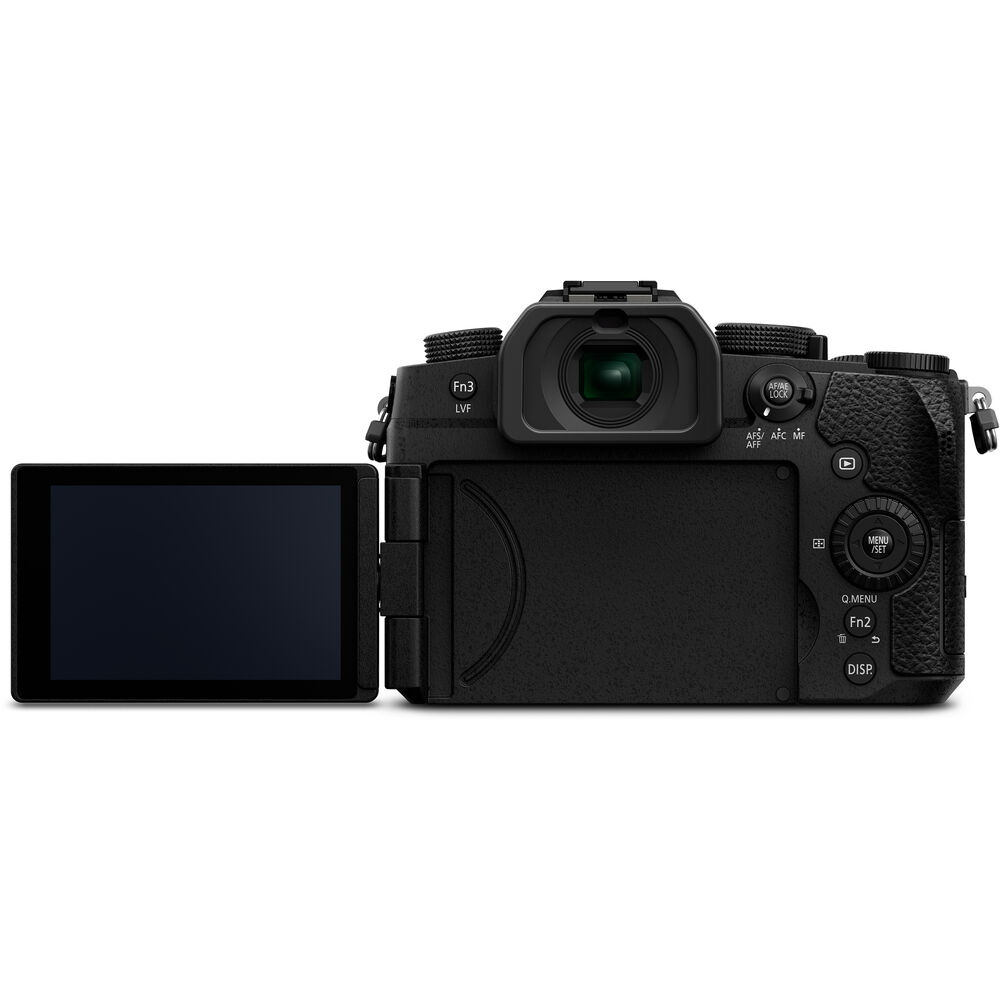

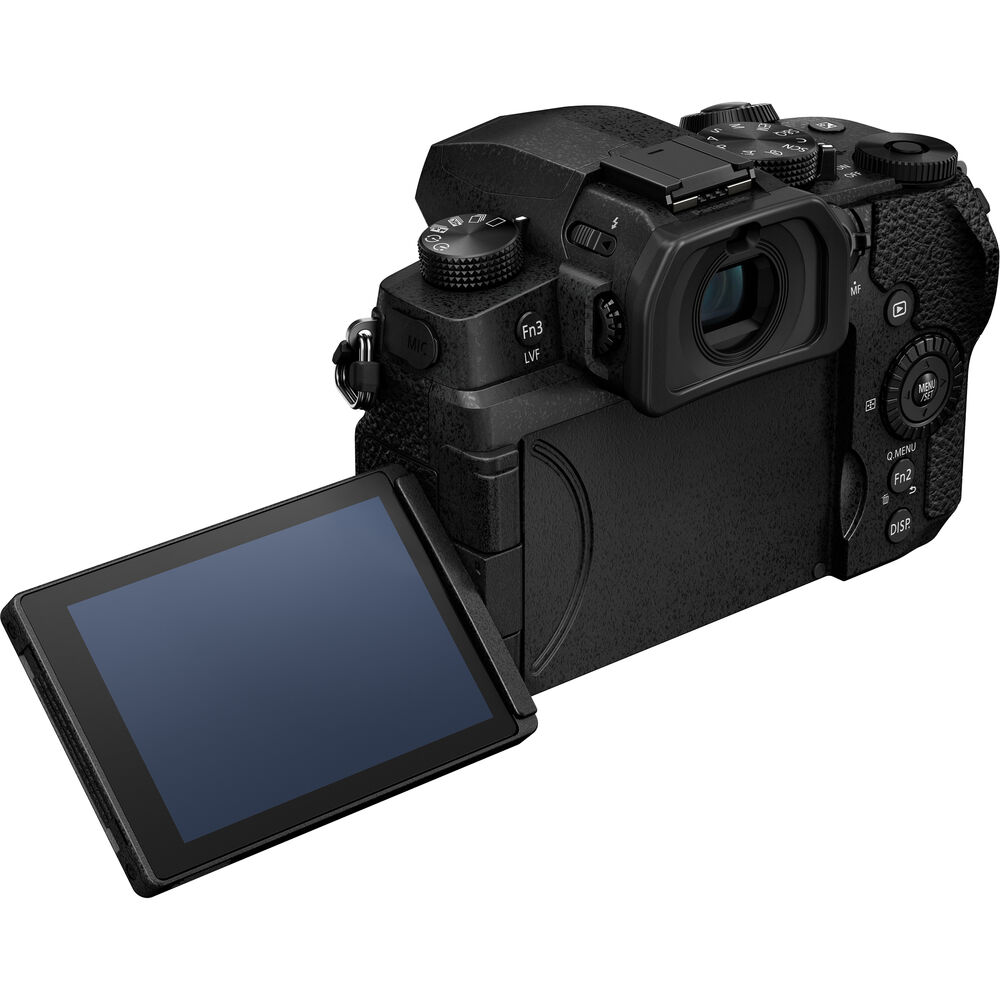

| Display Type | Articulating 3" Touchscreen OLED |
| Resolution | 1,840,000 Dot |
| Viewfinder | |
| Type | Electronic (OLED) |
| Resolution | 2,360,000 Dot |
| Eye Point | 20 mm |
| Coverage | 100% |
| Magnification | Approx. 0.74x |
| Diopter Adjustment | -4 to +4 |
| Flash | |

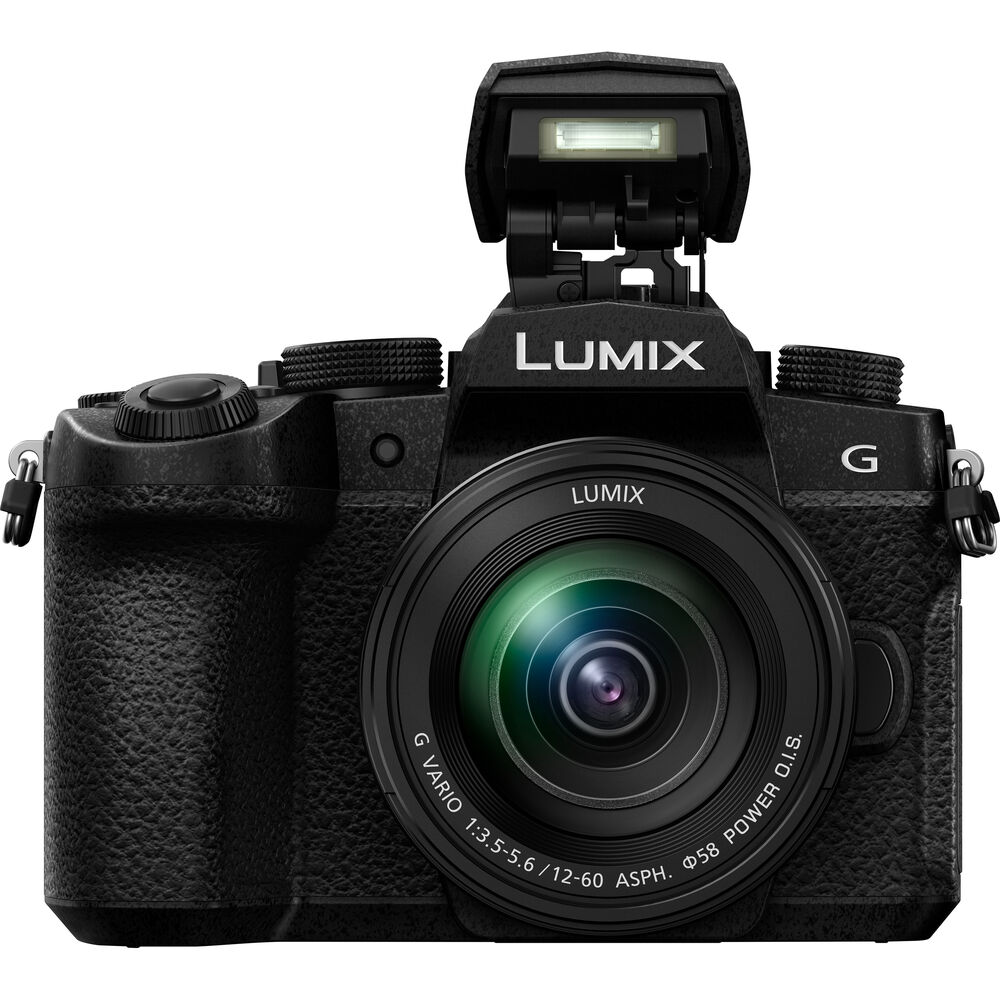

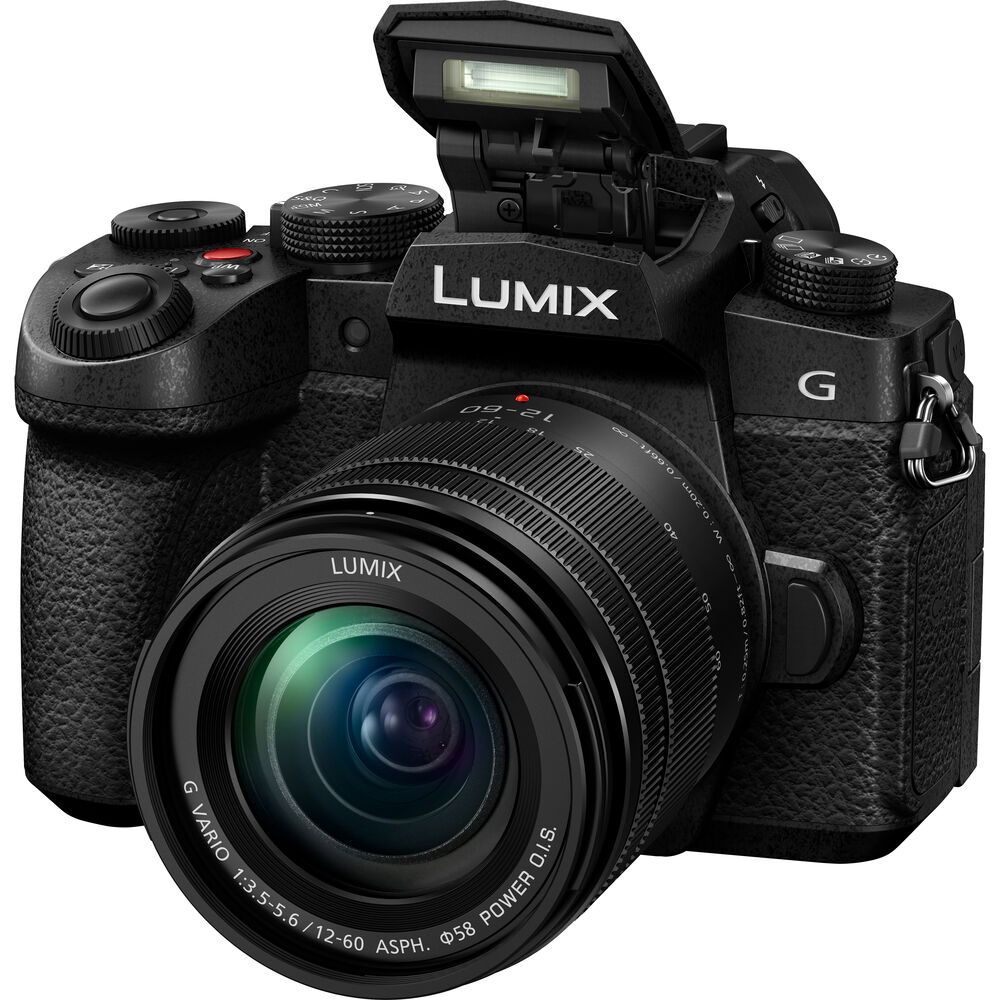

| Built-In Flash/Light | Yes, Flash Only |
| Flash Modes | Auto, Auto/Red-Eye Reduction, Forced On, Forced On/Red-Eye Reduction, Off, Slow Sync, Slow Sync/Red-Eye Reduction |
| Maximum Sync Speed | 1/200 Second |
| External Flash Connection | Shoe Mount |
| Flash Compensation | -3 to +3 EV (1/3 EV Steps) |
| Guide Number | 9' / 2.7 m at ISO 200 |
| Dedicated Flash System | TTL |
| Kit Lens | |
| Focal Length | 12 to 60mm (35mm Equivalent: 24 to 120mm) |
| Aperture | Maximum: f/3.5 to 5.6 Minimum: f/22 |
| Angle of View | 84.05° to 20.44° |
| Magnification | 1:3.7 Macro Reproduction Ratio 0.27x Magnification |
| Minimum Focus Distance | 7.87" / 20 cm |
| Optical Design | 11 Elements in 9 Groups |
| Aperture/Iris Blades | 7, Rounded |
| Focus Type | Autofocus |
| Image Stabilization | Yes |
| Filter Size | 58 mm (Front) |
| Dimensions | ø: 2.6 x L: 2.8" / ø: 66 x L: 71 mm |
| Weight | 7.4 oz / 210 g |
| Others | |
| Marka | Panasonic |
