| General | |
|---|---|
| Dimensions | 10.0 x 19.5 x 2.5" / 25.3 x 49.5 x 6.4 cm |
| Weight | 6.2 lb / 2.8 kg |

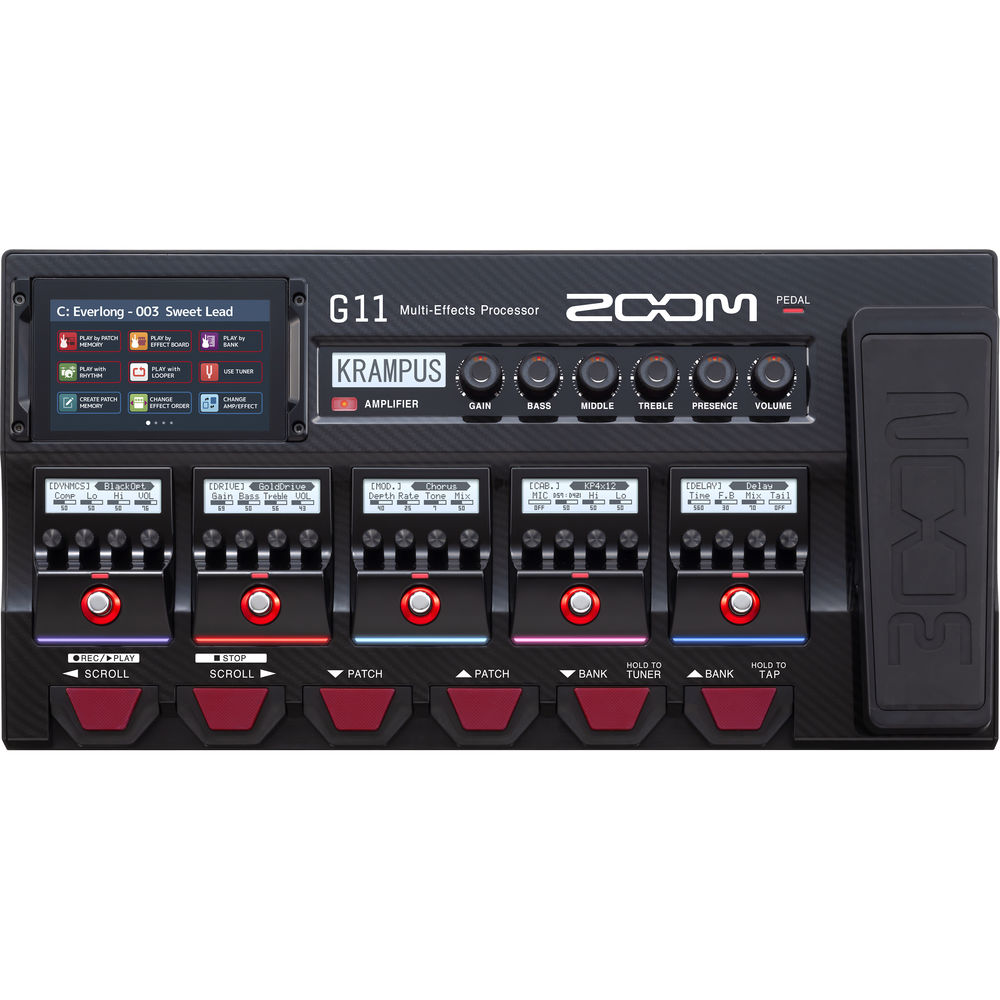

| Display | 5" TFT color LCD (800 × 480) 6 x Dot-Matrix LCDs (128 × 32) |
| Power | AC Adapter: 12 VDC, Center Plus, 2000 mA (Zoom AD-19) |

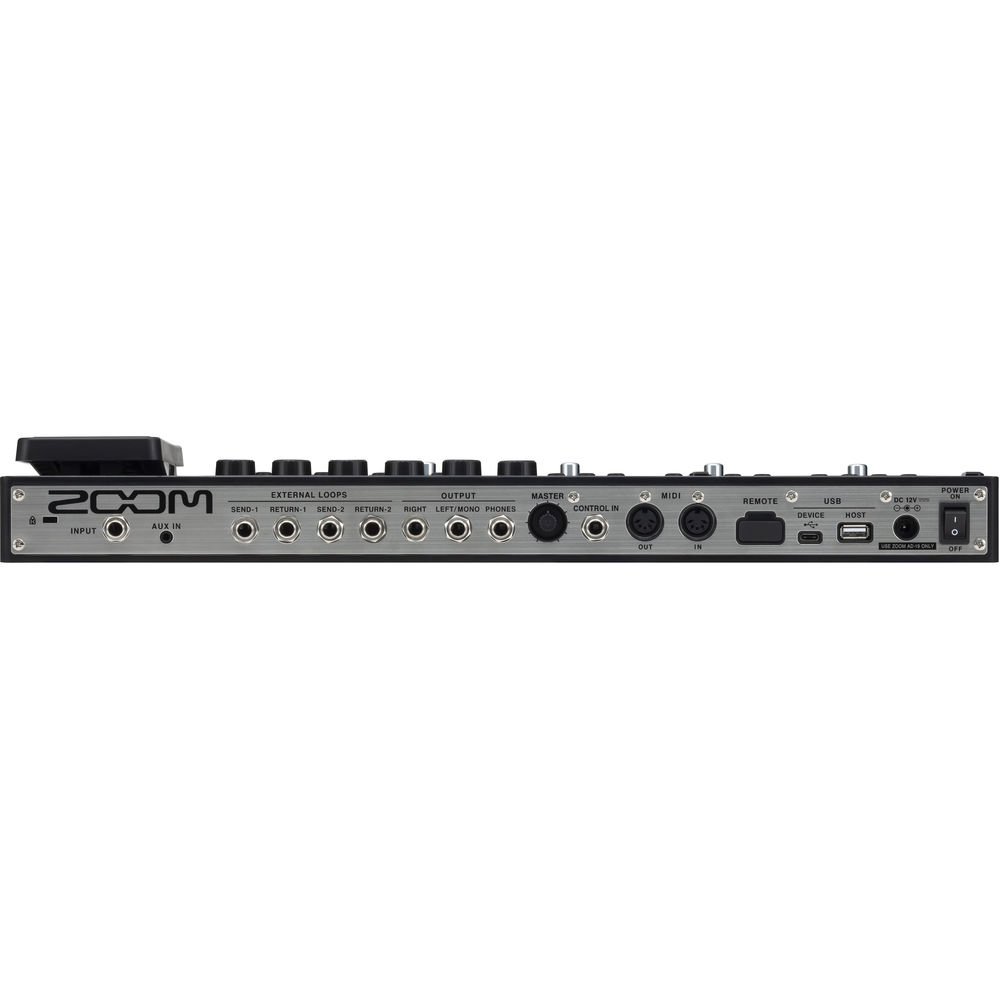

| I/O | 1 x 1/4" Instrument Input 1 x 1/4" Control Input 2 x 1/4" Return Inputs 1 x 3.5 mm Auxiliary Input 2 x 1/4" Send Outputs 2 x 1/4" Outputs 1 x 1/4" Phones Output 1 x 5-Pin DIN MIDI Input 1 x 5-Pin DIN MIDI Output 1 x USB Type-C Port 1 x USB Type-A Port |
| Simultaneous Effects | Amplifier + 9 Effects |
| Sampling Frequency | 44.1 kHz |
| User Presets | 240 |
| Signal Processing | 32-Bit |
| AD/DA Conversion | 24-Bit with 128 Oversampling |
| Input Level | Input: -20 dBu Return: -20 dBu Auxiliary Input: -10 dBu |
| Frequency Characteristics | 20 Hz to 20 kHz (+1 / -2 dB), 10-Kilohm Load |
| Noise Floor | Left/Right, Instrument: −99.5 dBu Left/Right, Line: −92.5 dBu Send: 99.0 dBu |
| Input Impedance | Input: 500 Kilohms, Line Return: 1 Megohm Auxiliary Input: 10 Kilohms, Line |
| Maximum Output Levels | Left/Right, Instrument: +11.4 dBu (with Output Impedance >10 Kilohms) Left/Right, Line: 19 dBu (with Output Impedance >10 Kilohms) Phones, Line: +11.4 dBu (with Output Impedance >10 Kilohms) Headphones: 24 mW + 24 mW (at 32-Ohm Load) Send, Line: +11.4 dBu (with Output Impedance >10 Kilohms) |
| Signal to Noise Ratio | 123 dB |
| Control Input | For FP02M |
| USB Device Interface | GuitarLab: USB 1.1 Full Speed Audio Interface: USB 2.0 High Speed 44.1 kHz / 32-Bit 4-In / 4-Out USB Bus Power Not Supported |
| USB Host | Connector: USB 2.0 Type-A Standard: USB 2.0 High Speed Use a USB Thumb Drive |
| Remote | ZOOM BTA-1 or Other Dedicated Wireless Adapter |
| Packaging Info | |
| Package Weight | 9.24 lb |
| Box Dimensions (LxWxH) | 24.5 x 13.5 x 3.8" |
| Others | |
| Marka | Zoom |
