| General | |
|---|---|
| Dimensions | 6.7 x 5.5 x 1.8" / 17.0 x 14.0 x 4.5 cm |
| Weight | 1.28 lb / 0.58 kg |
| Operating Conditions | 32 to 104°F / 0 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 113°F / -20 to 45°C |
| Rack Form Factor | 1 U |
| Packaging Info | |
| Package Weight | 2.08 lb |
| Box Dimensions (LxWxH) | 9.05 x 7.8 x 2.4" |
| Power | |
| Power Consumption | 90 to 240 VAC (16 W) |
| Standards | |
| Video Standard Compliance | SMPTE 259M/292M/296M/310M/425M-B ITU -R BT.601/BT.656 |
| Reclocking | Yes |
| Interfaces | |

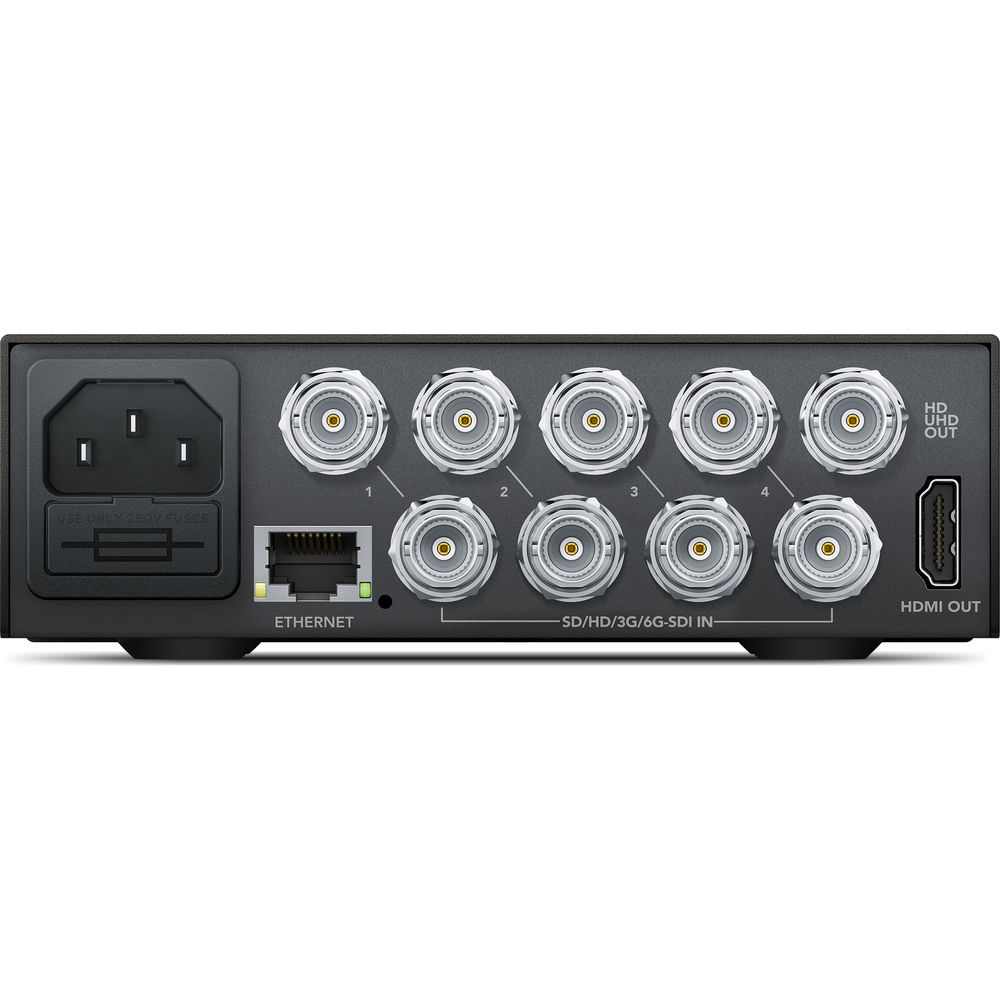

| Other I/O | 1x RJ45 1x USB-A 2.0 |
| Outputs | 1x BNC (6G-SDI) 1x HDMI 4x BNC (6G-SDI, Looping) |
| Transmission | |
| Video Format | SDI (10-Bit 4:4:4/4:2:2 YUV, RGB) 4096 x 2160: 24 fps 3840 x 2160: 24/25/23.98/29.97/30 fps 2048 x 1080PsF: 24/25/23.98 fps 2048 x 1080: 24/25/23.98 fps 1920 x 1080p: 24/25/23.98/29.97/30/59.94/60/50 fps 1920 x 1080PsF: 24/25/23.98/29.97/30 fps 1920 x 1080i: 59.94/60/50 fps 1280 x 720p: 59.94/60/50 fps |
| Maximum Sampling Rate | 48 kHz / 24-Bit |
| Maximum Data Rate | 6 Gb/s |
| Others | |
| Marka | Blackmagic Design |
Price:
39.058,80 ₺
