| General | |
|---|---|
| Dimensions | 4.5 x 2.6 x 1.3" / 115 x 65 x 32 mm |
| Weight | 7.87 oz / 223.00 g, Excluding Antenna |
| Operating Conditions | 14 to 140°F / -10 to 60°C |
| Storage Conditions | -40 to 140°F / -40 to 60°C |
| Environmental Resistance | No |
| Status Display | Yes |
| Packaging Info | |
| Package Weight | 1.505 lb |
| Box Dimensions (LxWxH) | 7.9 x 5.7 x 3.1" |
| Power | |
| Power Consumption | 8.5 W |
| Input Power | 6 to 16 VDC |
| Battery | Interchangeable Mount (No Plate Included) |
| Inputs/Outputs | |

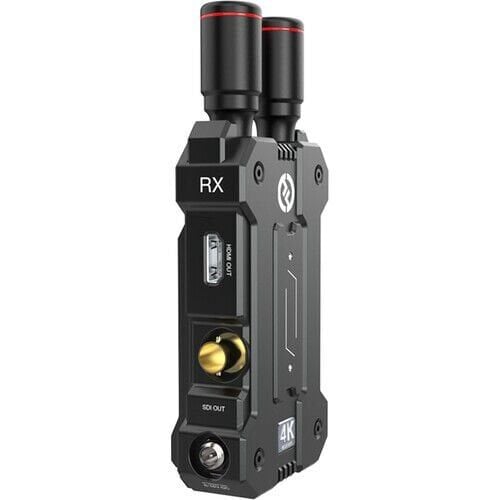

| Video I/O | 1x HDMI Output 1x BNC (3G-SDI) Output |
| Antenna I/O | 2x RP-SMA Male |
| Audio I/O | No |
| Embedded Audio | HDMI/SDI |
| Power I/O | 1x Barrel Input 1x USB-C Input |
| Format Support | |
| Video Format | HDMI UHD 4K: 30 1080p: 60/30/24 SDI 1080p: 60/59.94/30/29.97/24/23.98 |
| Timecode Support | Yes |
| Wireless | |
| Wi-Fi | Wi-Fi 4 (802.11n); Dual-Band (2.4 & 5 GHz) |
| Bluetooth | No |
| Mobile App Compatible | Yes: Android & iOS |
| Wireless Range | 450' / 137.2 m (Line-of-Sight) |
| Channel Bandwidth | 20 MHz |
| Frequency Range | US: 5.1 to 5.8 GHz |
| Latency | 66 ms |
| RF Power | 21 dBm |
| RF Sensitivity | -90 dBm |
| Cellular Support | No |
| Mounting | |

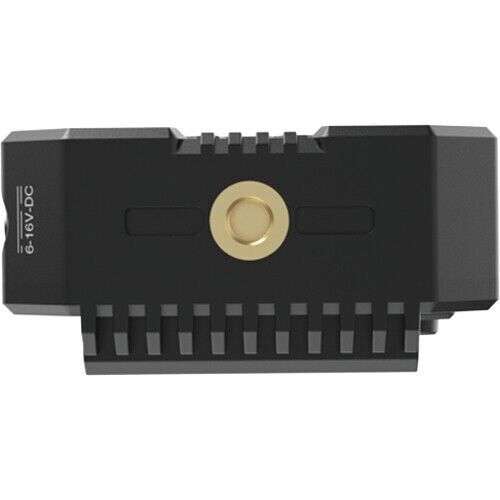

| Tripod/Accessory Mounting | Bottom 1x 1/4"-20 Female |
| Others | |
| Marka | HollyLand |
