| Display | |
|---|---|
| Panel Type | LCD |
| Native Resolution | 1920 x 1080 |
| Display Size | 5.0" / 12.7 cm |
| Touchscreen | Yes |
| Aspect Ratio | 16:9 |
| Maximum Brightness | 300 nits / cd/m2 |
| Viewing Angle | Horizontal: 135° |
| HDR Support | No |
| Color Gamut | 100% Rec. 709 |
| Color Support | 16.7 Million Colors |
| LUT Support | Yes |
| Image Controls | Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, Picture-in-Picture, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
| General | |
| Dimensions | 5.83 x 3.54 x 1.44" / 14.81 x 8.99 x 3.66 cm |
| Weight | 14.46 oz / 410.00 g |
| Operating Conditions | 32 to 72°F / 0 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 113°F / -20 to 45°C |
| Environmental Resistance | No |
| Material of Construction | Aluminum |
| Packaging Info | |
| Package Weight | 1.9 lb |
| Box Dimensions (LxWxH) | 7.8 x 7.5 x 4.1" |
| Power | |
| Input Power | 12 VDC |

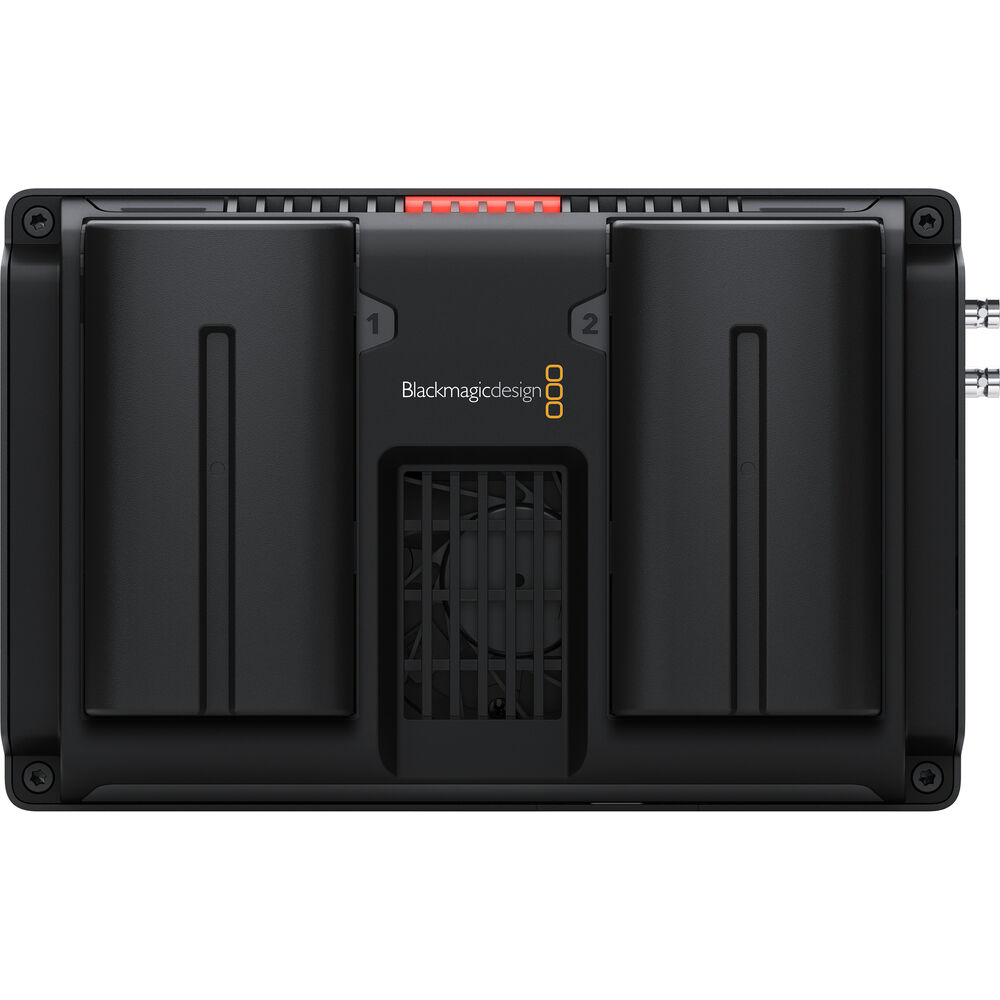

| Battery | 2x L-Series Mount on Fixed Plate |
| Inputs/Outputs | |

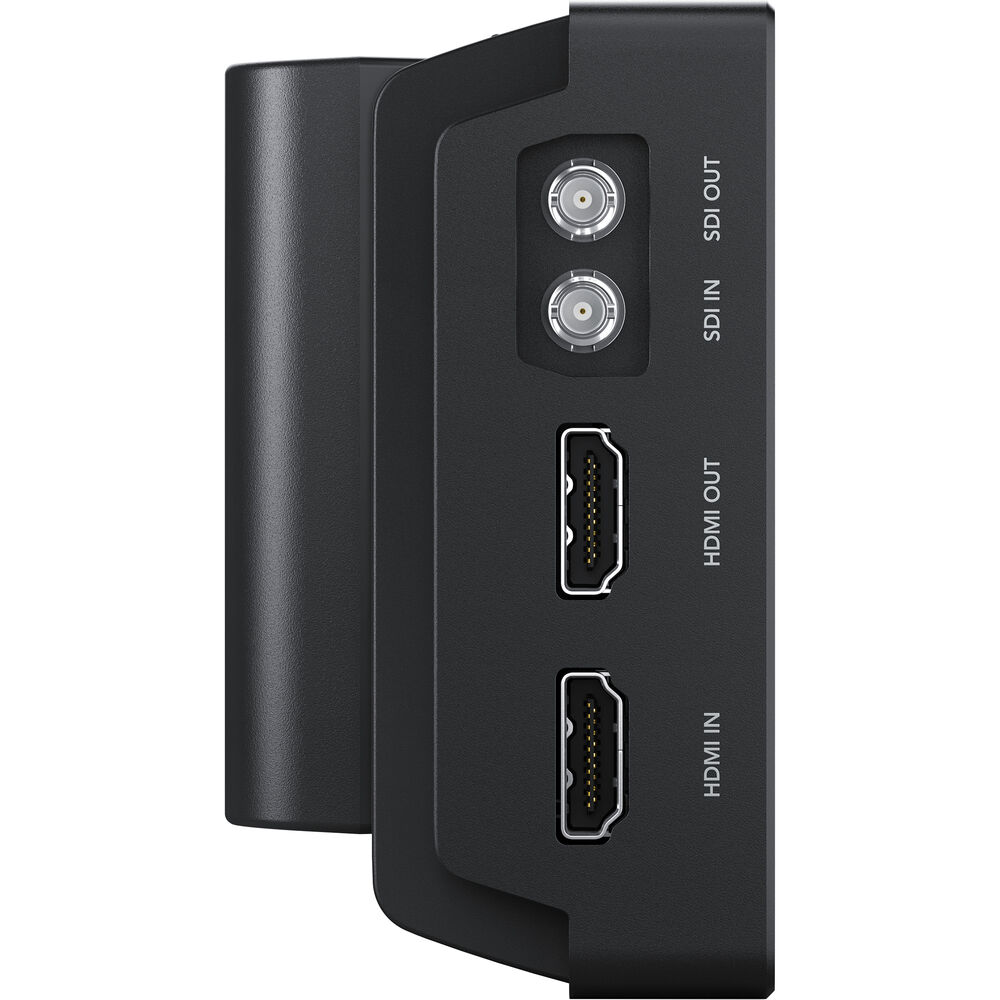

| Video I/O | 1x HDMI Input 1x Micro BNC (3G-SDI) Input 1x HDMI Output 1x Micro BNC (3G-SDI) Output 1x USB-C Output |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-I) [Supports Recording] |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Embedded Audio | HDMI: 8-Channel SDI: 16-Channel |
| Built-In Speaker | Mono |
| Power I/O | 1x Barrel Input |
| Format Support | |
| Video Format | SDI (10-Bit 4:2:2 YUV) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 HDMI (10-Bit) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 |
| Timecode Support | Yes |
| Wireless | |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Mounting | |
| Tripod/Accessory Mounting | Top/Bottom 3x 1/4"-20 Female |
| Recording | |
| Pulldown Conversion | No |
| Pre-Roll Record | No |
| Camera Trigger | No |
| Encoding Formats | Up to 1920 x 1080 ProRes 422, 422 HQ, LT, Proxy 10-Bit 4:2:2 at up to 60 fps DNxHD 45, 45 MXF, 145, 145 MXF, 220x, 220x MXF 10-Bit 4:2:2 at up to 60 fps |
| Maximum Audio Tracks | 16 |
| Phantom Power | No |
| Metadata Tagging | Yes |
| Others | |
| Marka | Blackmagic Design |
Price:
25.762,19 ₺
