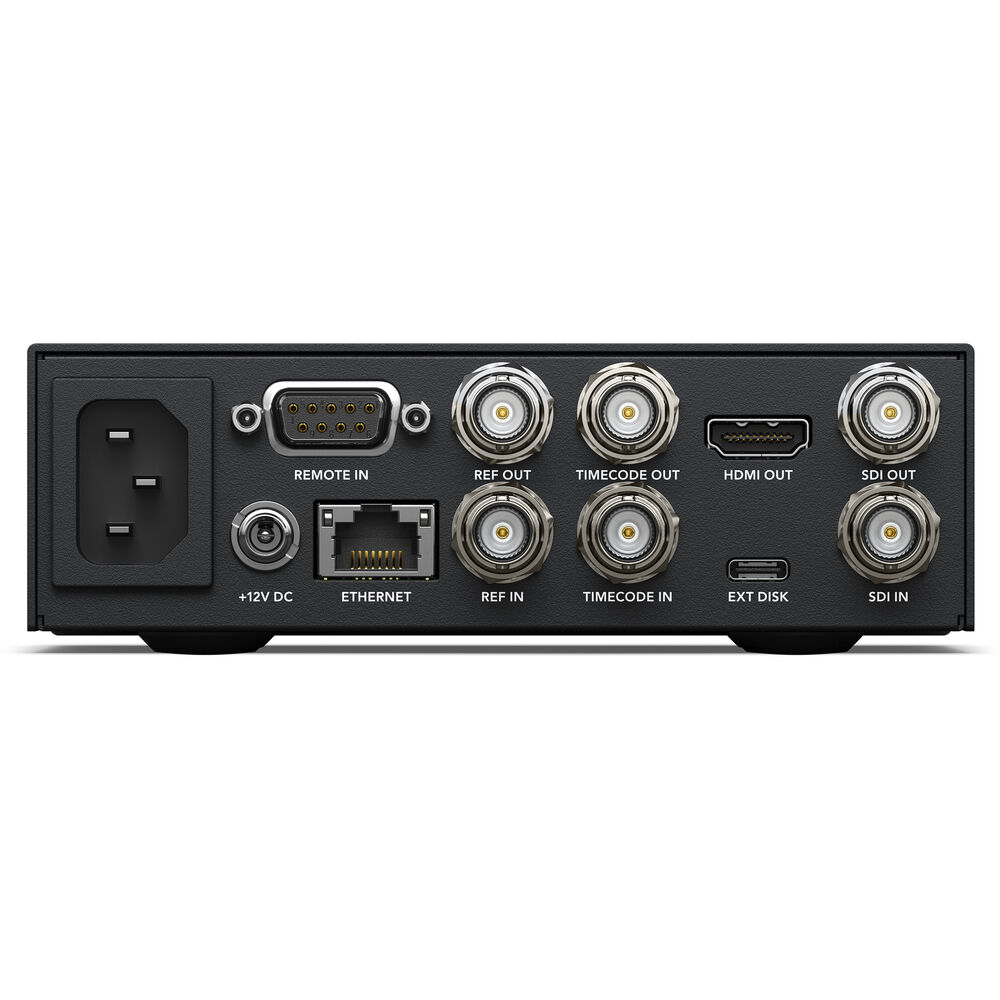

| Connectivity | |
|---|---|
| Video Inputs | 1 x BNC, 3G-SDI |
| Video Output | 1 x BNC, 3G-SDI 1 x HDMI Type A 1 x USB Type-C (Webcam or External Recording of SD, HD, 2K) |
| Timecode | In: 1 x BNC out: 1 x BNC |
| Reference | Tri-Sync or Black Burst Input Connector: 1 x BNC Output Connector: 1 x BNC |
| Audio Input | None (Embedded Audio Only, 16 Channels) |
| Audio Output | None (Embedded Audio Only, 16 Channels SDI, 8 Channels HDMI) |
| Device Control | 1 x RS-422 Deck Control Port on DB9 Female |
| Ethernet | 1 x RJ45 for Remote Operation |
| Media Interface | 2 x SD Slots Media Type: UHS I and UHS II Format: ExFAT or HFS+ |
| General | |
| Dimensions | 6.96 x 5.51 x 1.74" / 17.68 x 14 x 4.42 cm |
| Weight | 1.8 lb / 0.82 kg |
| Operating Temperature | 41 to 122°F / 5 to 50°C |
| Power Supply | AC 100 to 240 VAC, 50/60 Hz DC 12 VDC; 1 x Locking 5.5 mm Barrel |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Rack Height | 1 RU |
| Relative Humidity | 0 to 90% Non-Condensing |
| Packaging Info | |
| Package Weight | 2.3 lb |
| Box Dimensions (LxWxH) | 11.6 x 7 x 2.6" |
| Standards | |
| HDR Support | Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084 |
| Supported Resolutions | 2K 2048 x 1080p: 30/29.97/25/24/23.98 HD 1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98 1920 x 1080i: 60/59.94/50 1280 x 720p: 60/59.94/50 SD NTSC PAL |
| SDI Compliance | SMPTE 259M//292M/296M/372M/424M/425M Level A and B SMPTE 2084 SMPTE 2108‑1 |
| SDI Metadata Support | HD RP188 and Closed Captioning CEA‑708 HDR Metadata Supported on SDI |
| Video Sampling | 4:2:2 YUV |
| Color Depth | 10-Bit |
| Color Space | REC 601 REC 709 REC 2020 |
| Multi Rate Support | Autodetection of SD and HD |
| Audio Sampling | Television Standard 48 kHz, 24-Bit |
| Supported Codecs | ProRes HQ QuickTime422 QuickTimeLT QuickTimeProxy QuickTime for Formats up to 1080p60DNxHD220x220x MXF145145 MXF4545 MXF for 720p and 1080p HD Formats up to 60 fps¿H.264SDI 4:2:2 10-BitHigh 4:2:0 8-BitMedium 4:2:0 8-BitLow 4:2:0 8-Bit for Progressive Formats up to 1080p60 |
| System Requirements | |
| Operating System | macOS: 10.15(Catalina), 11.5 (Big Sur) or Later Windows: 10 64-Bit |
| Others | |
| Marka | Blackmagic Design |
Price:
39.612,83 ₺
