| General | |
|---|---|
| Weight | 3.15 lb / 1.43 kg (Body Only) |
| Mounting | 1x 1/4"-20 Female |
| Dimensions (W x H x D) | 10.2 x 8.5 x 7.8" / 260 x 217 x 197 mm |
| Packaging Info | |
| Package Weight | 5.905 lb |
| Box Dimensions (LxWxH) | 11.8 x 9.1 x 7" |
| Environmental | |
| Operating Conditions | 14 to 104°F / -10 to 40°C at 20 to 80% Humidity |
| Power | |
| Power Consumption | 13 W |
| Power I/O | 1x RJ45 (12VDC at 2 A) Input |
| PoE Support | Yes: PoE 802.3af |
| Imaging | |
| Image Sensor | 1/2.8"-Type CMOS |
| Effective Sensor Resolution | 8.29 Megapixel (3840 x 2160) |
| Horizontal Resolution (TV Lines) | 2160 TV Lines |
| Focus Control | Autofocus Manual Focus |
| IR Cut Filter | No |
| Video Capture | |
| Internal Recording | No |
| Video Output | via RJ45 / USB / HDMI 3840 x 2160 at 25/30.00/29.97 fps 1920 x 1080p at 25/29.97/30.00 fps 1280 x 720 at 25/29.97/30.00 fps |
| IP Streaming | RTSP/RTMP/NDI HX3/NDI HX2 3840 x 2160 at 30p |
| Broadcast Output | NTSC/PAL |
| Embedded Audio | HDMI/LAN (RJ45)/SDI |
| Control | |
| Presets | 255 |
| Pan/Tilt | Pan: 350° (-175 to 175°) at 0.1 to 80°/s Tilt: 180° (-90 to 90°) at 0.1 to 60°/s |
| Tally Light | Yes |
| Exposure Control | |
| Shutter Speed | 1/10000 to 1/25 Second |
| White Balance | Range: 2500 to 9000K Presets: Manual, VAR |
| Signal-to-Noise Ratio | 50 dB |
| Interface | |
| Video I/O | 1x HDMI Output |

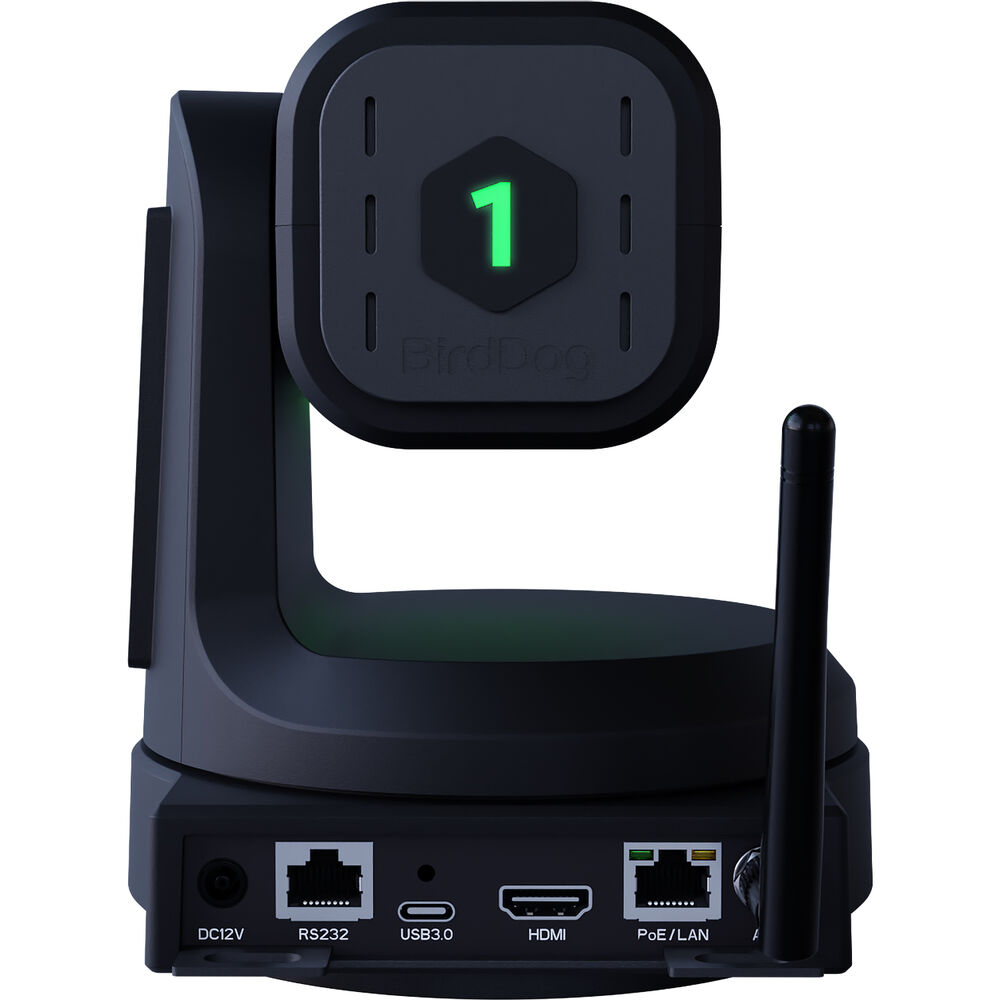

| Other I/O | 1x USB-C 1x RJ45 (NDI, RS-232) Control |
| Built-In Microphone | No |
| Built-In Speaker | No |
| Lens | |
| Focal Length | 4.1 to 49.2mm |
| Maximum Aperture | f/1.8 to 2.68 |
| Max Optical Zoom | 12x |
| Field of View | Horizontal: 70.28 to 6.57° Vertical: 42.06 to 3.76° Diagonal: 78.36 to 7.5° |
| Networking | |
| Wireless | Wi-Fi 5 (802.11ac) / IR |
| Others | |
| Marka | BirdDog |
