| General | |
|---|---|
| Weight | 3.71 lb / 1.68 kg (Body Only) |
| Materials | Carbon Fiber, Polycarbonate |
| Tripod Mount | 2x 1/4"-20 Female |
| Dimensions (W x H x D) | 10.5 x 7.25 x 7" / 26.7 x 18.41 x 17.8 cm |
| Accessory Mounting Thread | 1x 1/4"-20 |
| Packaging Info | |
| Package Weight | 4.345 lb |
| Box Dimensions (LxWxH) | 11 x 7 x 6.9" |
| Environmental | |
| Operating Conditions | 32 to 104°F / 0 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 113°F / -20 to 45°C |
| Power | |
| Battery | Sony L-Series |
| Imaging | |
| Lens Mount | Canon EF |
| Image Sensor | 23.1 x 12.99 mm (Super35) CMOS |
| Effective Sensor Resolution | 21.2 Megapixel (6144 x 3456) |
| Lens Communication | Yes: with Autofocus Support |
| Image Stabilization | No |
| Capture Type | Stills & Video |
| Internal Filter Holder | No |
| Video Capture | |
| Internal Recording | Raw 6144 x 3456 at 24.00/25/29.97/50/23.98 fps (49 to 483 Mb/s) 3728 x 3104 at 23.98/24.00/25/29.97 fps (36 to 265 Mb/s) 5744 x 3024 at 23.98/50/24.00/25/29.97/59.94 fps (40 to 395 Mb/s) 6144 x 2560 at 23.98/50/24.00/25/29.97/59.94 fps (37 to 359 Mb/s) 4096 x 2160 at 23.98/24.00/25/29.97 fps (28 to 163 Mb/s) 2868 x 1512 at 23.98/24.00/25/29.97 fps (14 to 101 Mb/s) ProRes 422/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LT 4096 x 2160 up to 60.00 fps 3840 x 2160 up to 60.00 fps 1920 x 1080p up to 120 fps |
| Video Output | Raw via USB 6144 x 3456 at 25/24.00/29.97/50/23.98 fps 5744 x 3024 at 59.94/23.98/24.00/25/29.97/50 fps 6144 x 2560 at 59.94/23.98/24.00/25/29.97/50 fps 4:2:2 10-Bit via HDMI 1920 x 1080p at 25/24.00/29.97/50/59.94/23.98 fps |
| Fast-/Slow-Motion Support | Yes |
| Built-In Microphone | Stereo |
| Exposure Control | |
| Shutter Type | Electronic Rolling Shutter |
| ISO/Gain Sensitivity | Native: 100 to 25,600 |
| Shutter Angle | 5 to 360° |
| Advertised Dynamic Range | 13 Stops |
| Interface | |
| Media/Memory Card Slot | Slot 1: SD/SDHC/SDXC (UHS-II) Slot 2: CFast |
| Internal Storage | No |
| Video I/O | 1x HDMI Output |

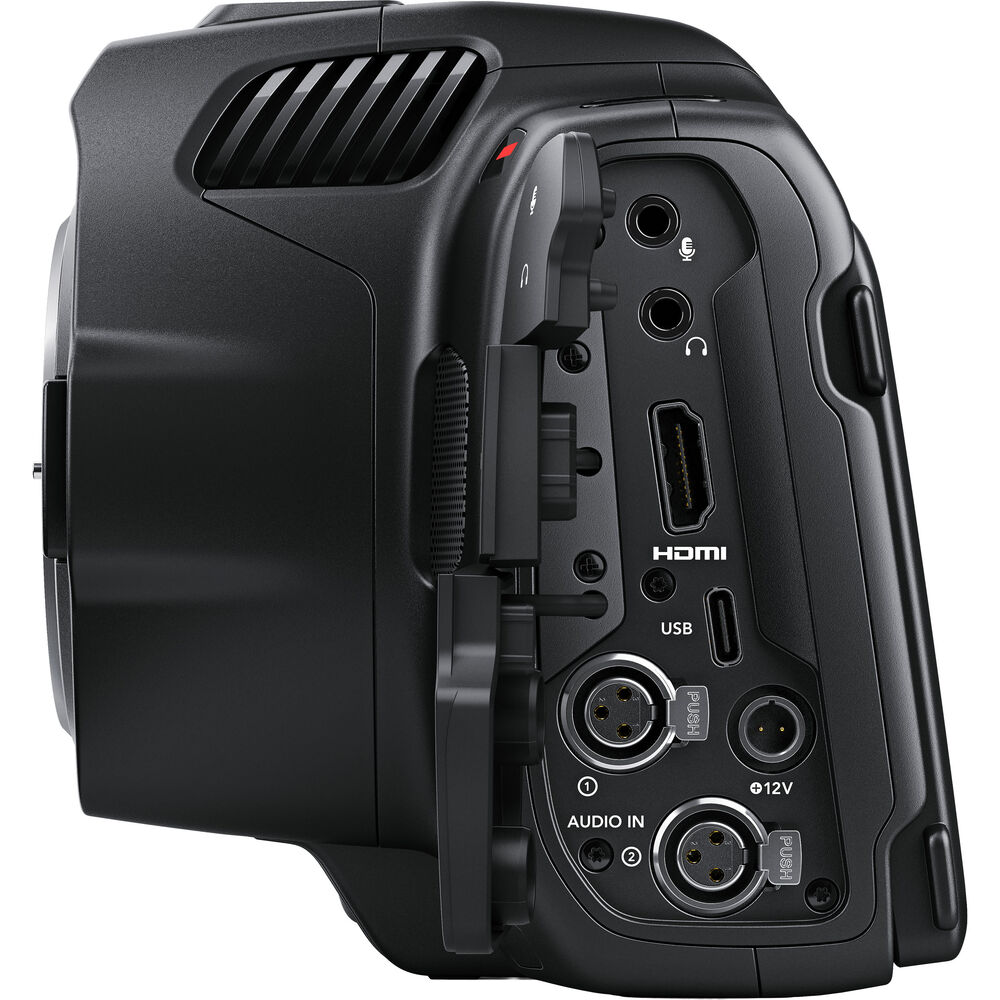

| Audio I/O | 2x Mini XLR Mic/Line Input (+48 V Phantom Power) 1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input 1x 1/8" / 3.5 mm TRS Stereo Headphone Output |
| Power I/O | 1x Weipu SF610/S2 (12 to 20VDC) Input |
| Other I/O | 1x USB-C (USB 3.2 / 3.1 Gen 1) Control (Shared with Video Output) 1x 1/8" / 3.5 mm (Timecode) Input (Shared with Mic/Line Input) |
| Wireless | Bluetooth |
| Mobile App Compatible | Yes: iOS Only App Name: BlackMagic Camera Control Functionality: Adjust Settings, Remote Control |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Focus | |
| Focus Mode | Automatic, Manual Focus |
| Monitor | |

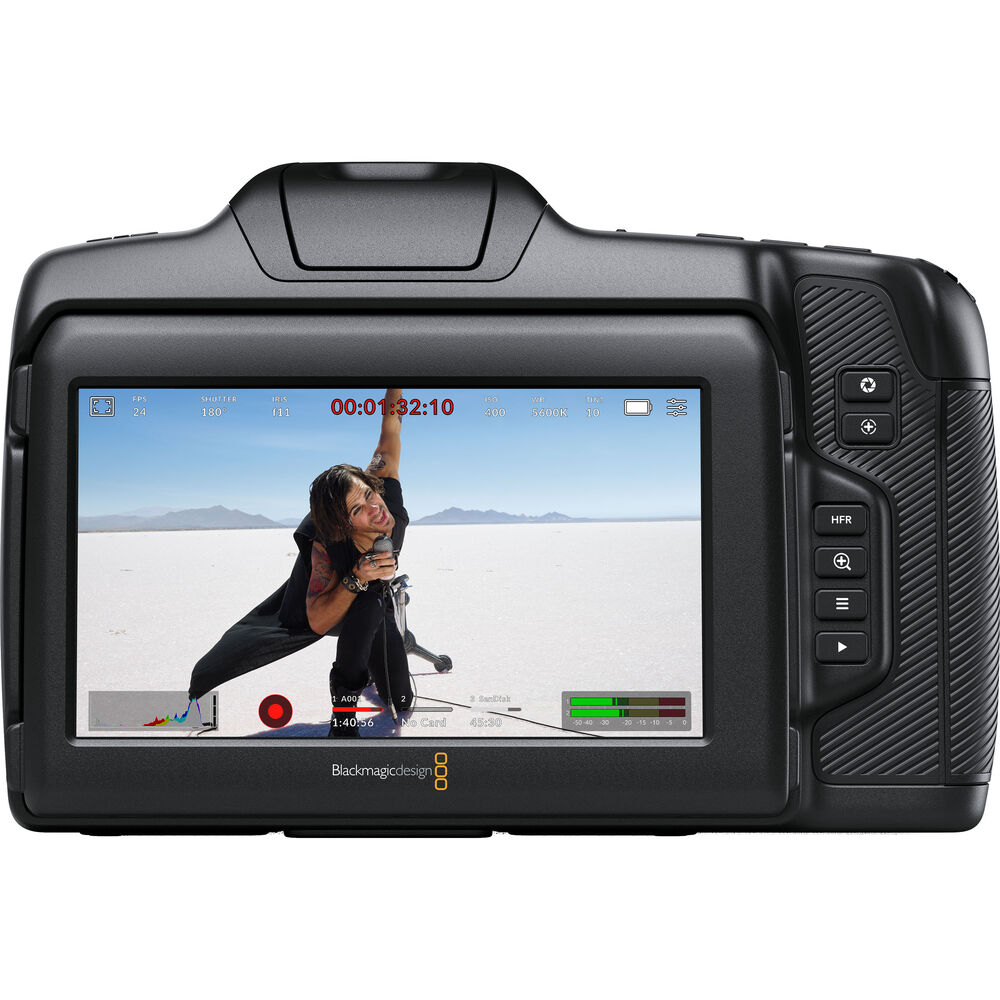

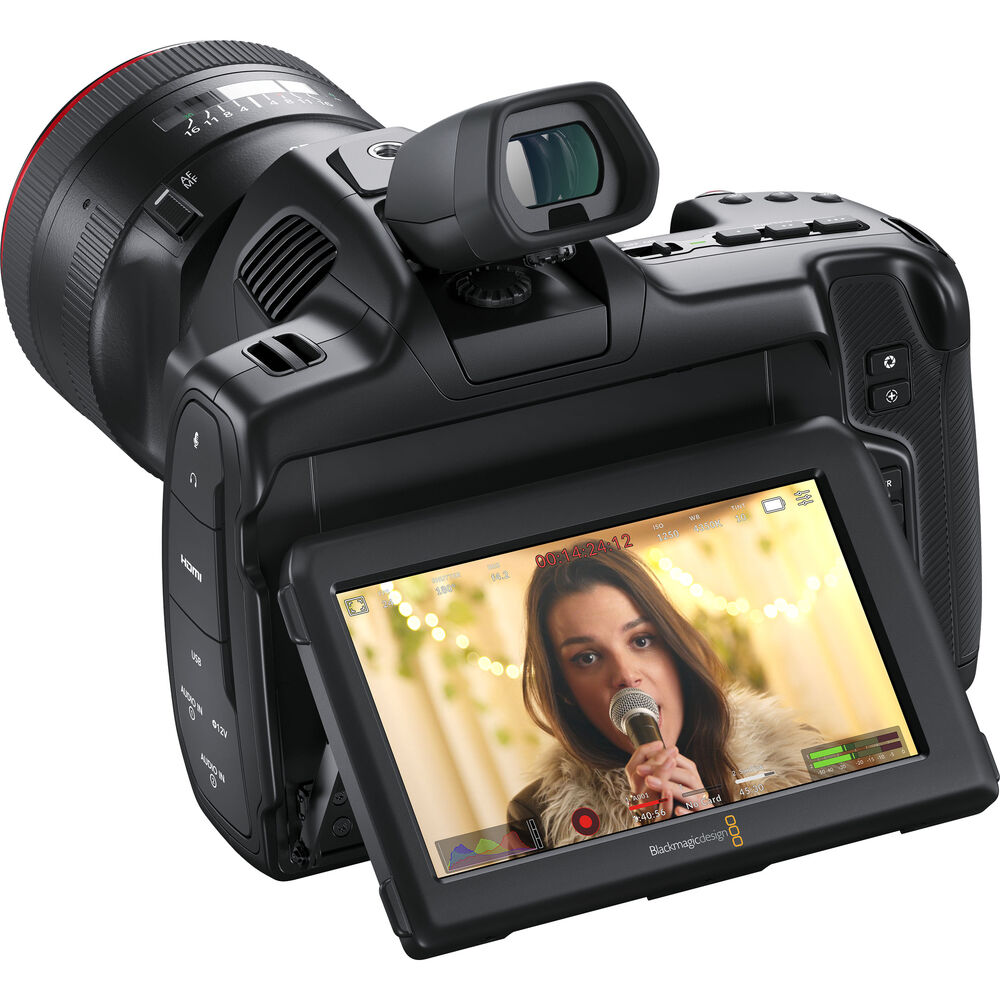

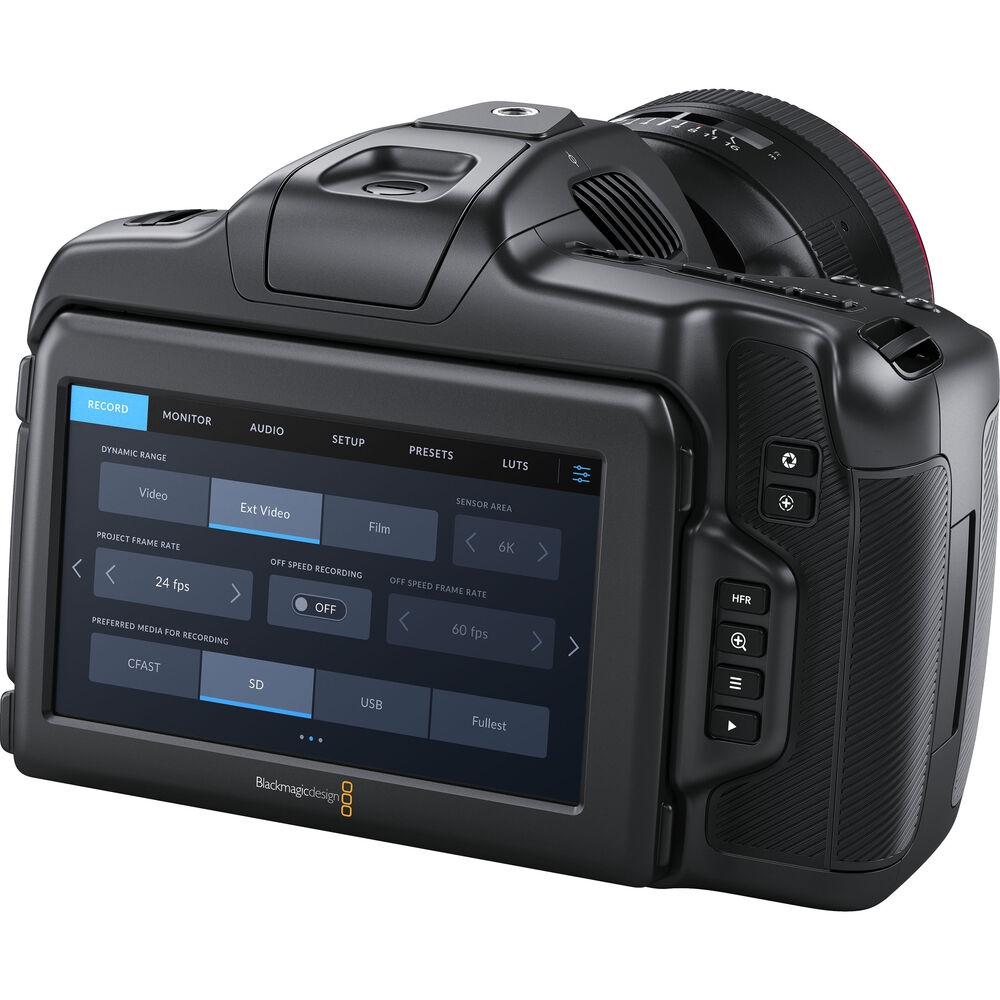

| Display Type | Primary Monitor: Tilting 5" Touchscreen LCD |
| Resolution | Primary Monitor: 1920 x 1080 |
| Viewfinder | |
| Type | Optional, Not Included |
| Others | |
| Marka | Blackmagic Design |
