| Connectivity | |
|---|---|
| Wireless | No |
| Analog Audio I/O | 2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 4x Combo XLR-1/4" TRS Balanced Mic/Line Input 2x 1/4" TS Unbalanced Line Input 2x XLR 3-Pin Balanced Line Output 4x 1/4" TRS Unbalanced Headphone Output 1x 1/8" / 3.5 mm TRRS Unbalanced Smartphone In/Out |
| Phantom Power | 48 V |
| Digital Audio I/O | No |
| Host Connection / USB | 1x Micro-USB |
| Host Connection Protocol | USB 2.0 |
| USB (Non-Host) | No |
| Sync I/O | No |
| Network I/O | No |
| MIDI I/O | No |
| General | |
| Display | LCD (Backlit) |
| Maximum Sampling Rate | 96 kHz / 24-Bit |
| Number of Microphone Inputs | 6 |
| Built-In Microphone | No |
| Input Level Adjustment | 10x Fader |
| Form Factor | Desktop |
| Number of Tracks | 8 |
| Meters | 12x 9-Segment LED |
| Maximum Simultaneous Tracks | 12x Recording / 10x Playback |
| Number of Headphone Mixes | 3x Assignable |
| Sample Pads | 6x Assignable |
| Packaging Info | |
| Package Weight | 4.975 lb |
| Box Dimensions (LxWxH) | 13.9 x 13.4 x 3.8" |
| Physical | |
| Dimensions | 11.1 x 10.6 x 2.9" / 28.2 x 26.8 x 7.4 cm |
| Weight | 3.4 lb / 1.6 kg |
| Power | |
| Power Consumption | 5 W |
| DC Input Power | 5 VDC |

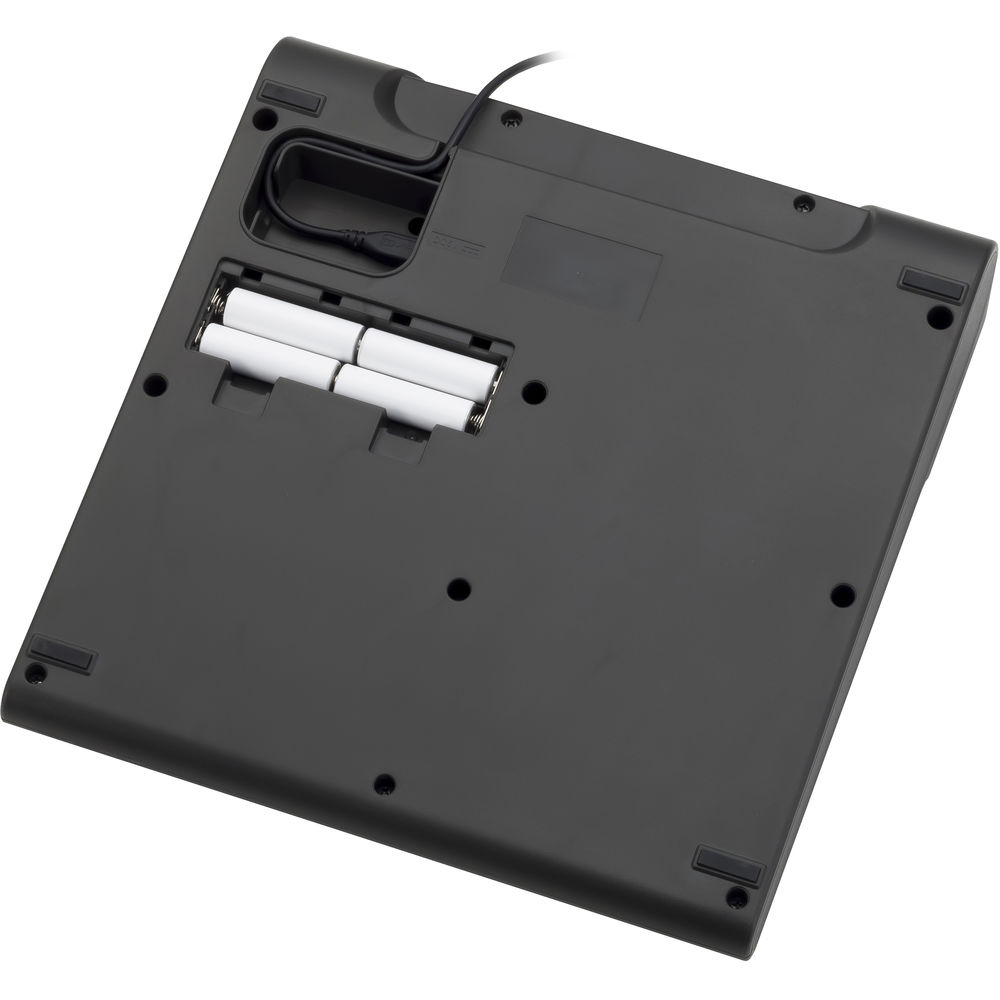

| Battery Type | 4x AA |
| Power Requirements | AC/DC Power Adapter (Not Included), Battery, USB Bus Power |
| AC/DC Power Adapter | 5 VDC at 1 A (Included) |
| Approximate Battery Life | 2 Hours (Alkaline, 4 Channels, 62-Ohm Load, Backlit Display, Phantom Off, Recording, Stamina Mode/Battery Save) 3.5 Hours (NiMH, 4 Channels, 62-Ohm Load, Backlit Display, Phantom Off, Recording, Stamina Mode/Battery Save) 6.5 Hours (Lithium, 4 Channels, 62-Ohm Load, Backlit Display, Phantom Off, Recording, Stamina Mode/Battery Save) |
| Performance | |
| Frequency Response | 20 Hz to 20 kHz +0/-1 dB (at 44.1/48 kHz) 20 Hz to 40 kHz +0/-3 dB (at 96 kHz) |
| Maximum Input Level | 1/8" / 3.5 mm Inputs: +3 dBu Mic/Line Inputs: -2 dBu for 0 dBFS (without Pad) +24 dBu for 0 dBFS (with Pad) 1/4" Line Inputs: +3 dBu (Unbalanced) |
| Headphone Output Power | 10 mW per Channel into 60 Ohms (Max) |
| Maximum Output Level | XLR Outputs: +14.5 dBu |
| Impedance | XLR Inputs: 3 Kilohms 1/8" / 3.5 mm Inputs: 10 Kilohms XLR Outputs: 100 Ohms 1/4" Outputs: 10 Ohms 1/4" Line Inputs: 3 Kilohms (Balanced) 10 Kilohms (Unbalanced) 1/4" Hi-Z Inputs: 1 Megohm |
| EIN | ≤ 121 dBu (IHF-A, +54 dB Gain, 150-Ohm Source) |
| Compatibility | |
| Mobile Device Compatibility | iPhone Android Smartphone |
| Processor Requirement | Mac: Intel Core i3 or Better PC: Intel Core i3 or Better |
| Required Hardware | Available USB 2.0 Port, USB 3.0 / 3.1/3.2 Gen 1 Port ([or]) Lightning to USB Adapter (Not Included) |
| Signal Processing | |
| Pad | No |
| Gain/Trim Range | Mic/Line Inputs: +10 dB to +54 dB (Hi-Z Off) -3 dB to +41 dB (Hi-Z On) |
| High-Pass Filter | 75 Hz, 12 dB/Octave |
| EQ | 3-Band EQ |
| Built-In Effects | 8x Effect (Type Unspecified) |
| EQ Parameters | High: ±15 dB at 10 kHz (Shelving) Mid: ±15 dB at 2.5 kHz (Notch/Peak) Low: ±15 dB at 100 Hz (Shelving) |
| Dynamic Processing | No |
| Digital Audio | |
| Bit Depths | 16 / 24-Bit (Recording) 24-Bit (AD/DA Conversion) |
| Audio File Formats | WAV |
| Clocking | Internal: |
| Audio Storage & Playback | |
| Media/Memory Card Slot | Single Slot: SD/SDHC |
| Supported Media | SD Card |
| Supported Media Capacity | SDHC: 4 GB Minimum to 32 GB Maximum SDXC: 64 GB Minimum to 512 GB Maximum |
| Others | |
| Marka | Zoom |
