| Connectivity | |
|---|---|
| Wireless | Bluetooth *Built-In |
| Phantom Power | +48 V, Selectable On/Off |
| USB I/O | USB-C |
| MIDI I/O | No |
| Other I/O | 1x 1/4" TRS Footswitch/Control Input |

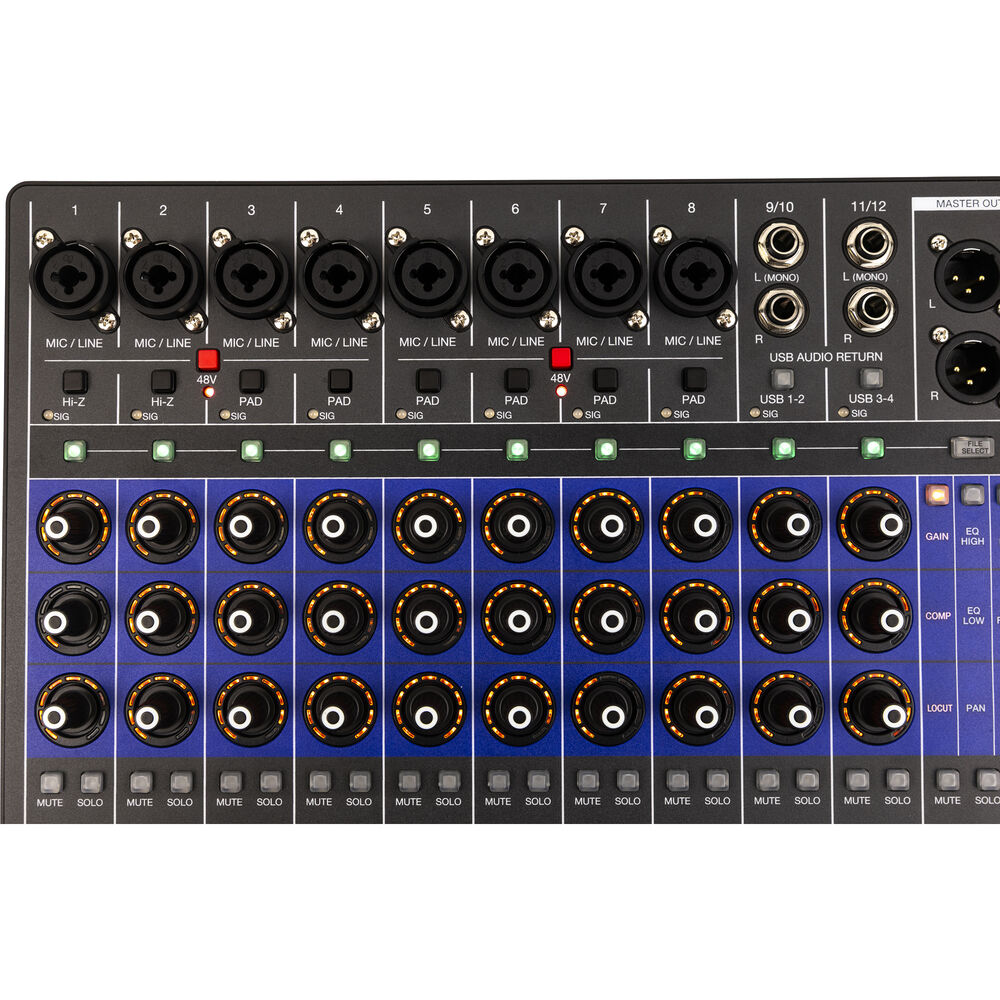

| Analog Inputs | 8x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 4x 1/4" TRS Balanced Line Input (2 Stereo Pairs) |

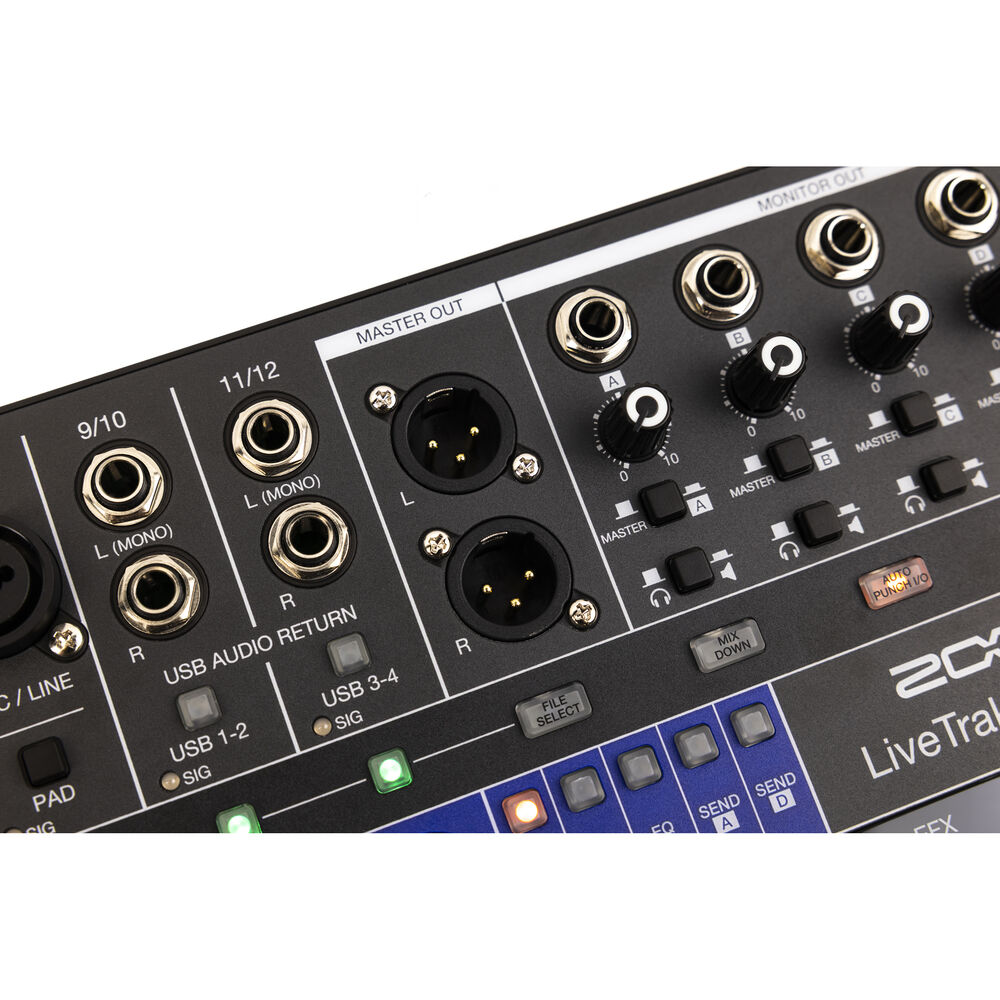

| Analog Outputs | 2x XLR 3-Pin Balanced Main Output (1 Stereo Pair) 5x 1/4" TRS Stereo Monitor Output |
| Digital I/O | No |
| USB I/O Capacity | 14x Input / 4x Output |
| Expansion Ports | No |
| External Display I/O | No |
| Packaging Info | |
| Package Weight | 7.28 lb |
| Box Dimensions (LxWxH) | 21.7 x 13.1 x 4.8" |
| Physical | |
| Dimensions | 17.5 x 11.2 x 2.9" / 44.5 x 28.5 x 7.3 cm |
| Weight | 5.3 lb / 2.4 kg |
| Rack Mountable | Yes |
| Power | |
| Input Power | 5 VDC |
| Performance | |
| Frequency Response | 20 Hz to 20 kHz (at 44.1 kHz, -1 dB) 20 Hz to 40 kHz (at 96 kHz, -3 dB) |
| Max Input Level | Combo XLR-1/4" Mic/Line Input: -2 dBu 1/4" TRS Line Input: +14 dBu |
| I/O Impedance | Combo XLR-1/4" Hi-Z/Main/Mic Input: 4.6 Kilohms (Mic/Line) 1 Megohm (Hi-Z) Main Output: 200 Ohms Monitor Output: 55 Ohms |
| Signal Generator | No |
| Compatibility | |
| OS Compatibility | Windows / macOS |
| Mixer | |
| Max I/O Capacity | 14x Input / 6x Output |
| Number of Analog Input Channels | 12 (8 Mono / 2 Stereo) |
| Number of Mic Preamps | 8 |
| Number of Analog Output Channels | 6 |
| Mix Routing | 8x Mono Bus 2x Stereo Bus 1x FX Return |

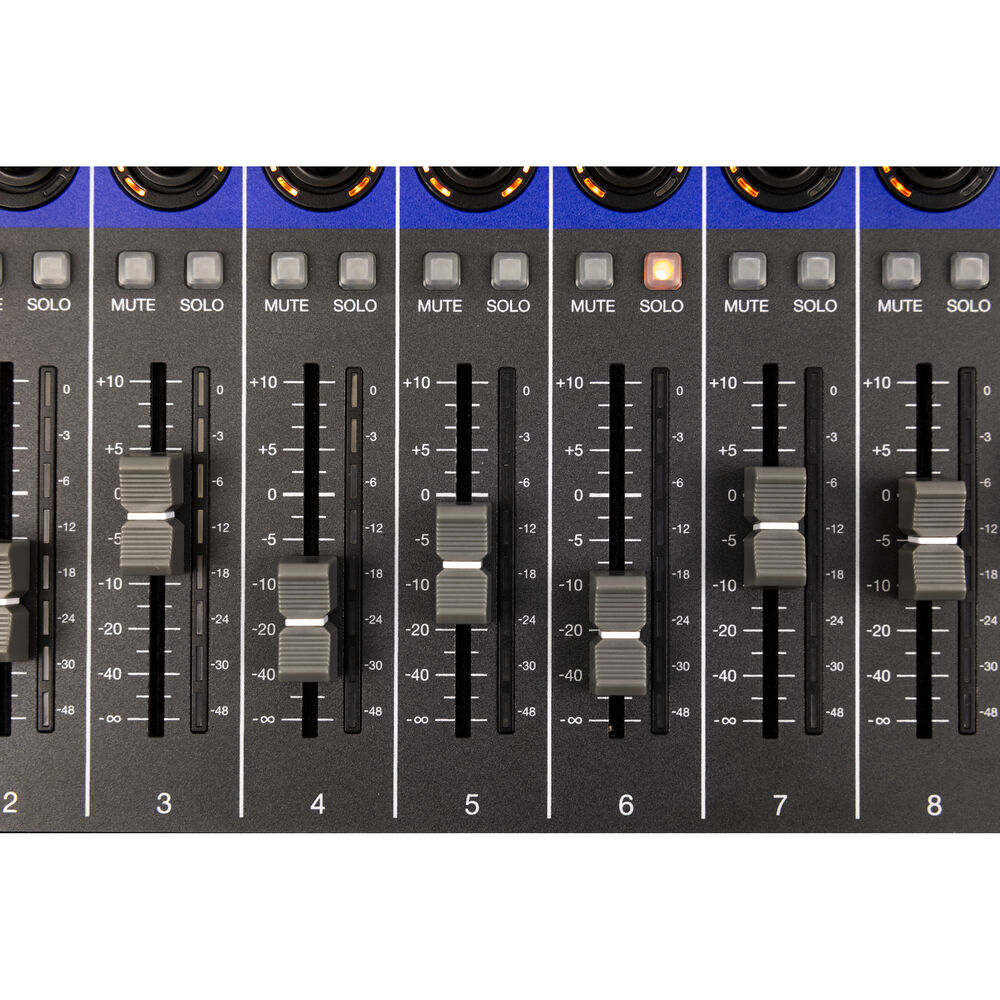

| Faders & Level Adjustment | 12 Fader 34 Knob |
| Presets | No |
| Groups | No |
| Meters | LED |

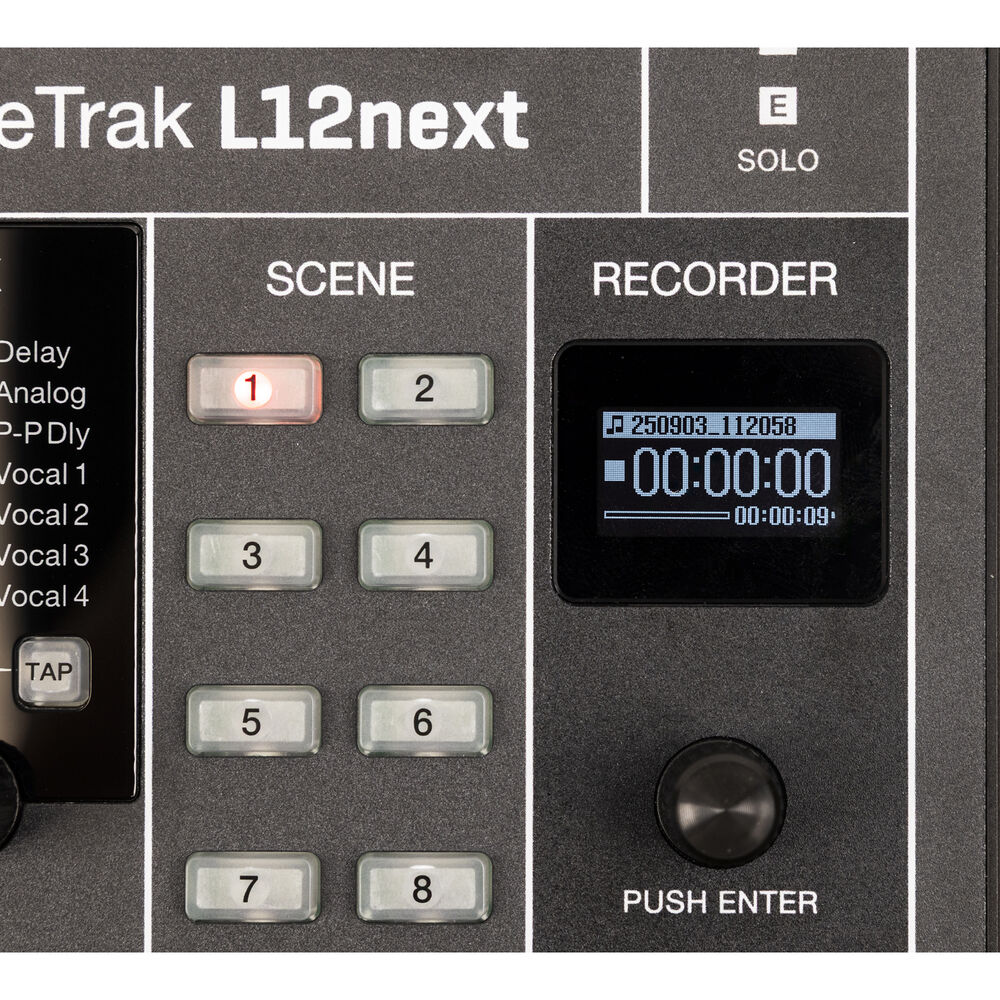

| Display | OLED |
| Recording | |
| Max Multitrack Recording | 14 Tracks |
| Media Support | SDHC, USB Drive |
| Max Media Storage Capacity | 1000 GB |
| File Format Support | WAV |
| Signal Processing | |
| Gain/Trim Range | 16 to 60 dB Hi-Z: 0 to 44 dB |
| Solo/Mute | Solo, Mute per Input Channel |
| EQ | 3-Band Semi-Parametric |
| Input Pad | -20 dB (Mono Channels) |
| Dynamic Processing | Compressor |
| Input Polarity | Fixed |
| Graphic EQ | No |
| Audio Delay | No |
| Automatic Mic Mixing | No |
| Digital Audio | |
| Sample Rates | Up to 96 kHz |
| Bit Depth | Audio Streaming: Up to 24-Bit Multitrack Record: 32-Bit |
| Others | |
| Marka | Zoom |
