| Connectivity | |
|---|---|
| Wireless | No |

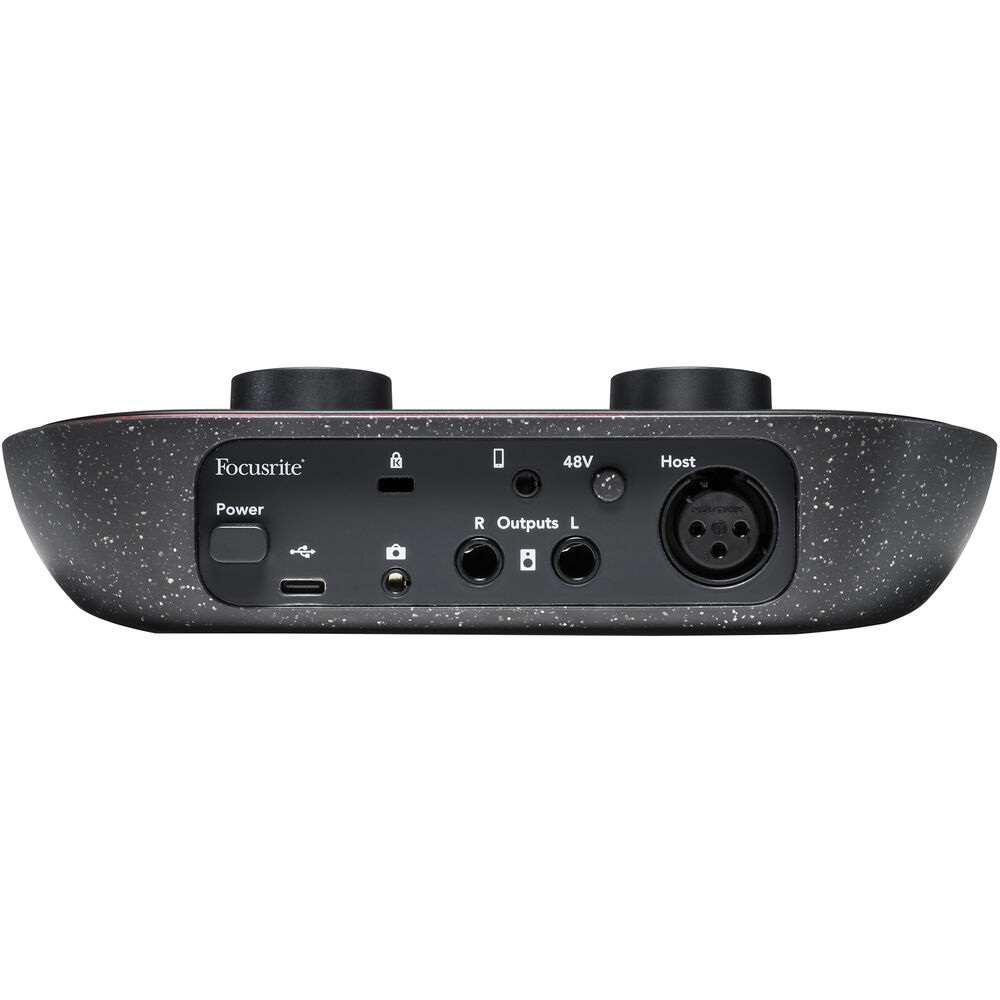

| Analog Audio I/O | 1x XLR 3-Pin Balanced Mic Input 1x 1/4" TRS Unbalanced Headphone Output 2x 1/4" TRS Balanced Monitor Output 1x 1/8" / 3.5 mm TRS Unbalanced Line Output 1x 1/8" / 3.5 mm TRRS Unbalanced Smartphone In/Out |
| Phantom Power | 48 V, Selectable On/Off |
| Digital Audio I/O | No |
| Host Connection / USB | 1x USB-C (Class-Compliant) |
| Host Connection Protocol | USB 3.0 / 3.1/3.2 Gen 1 |
| USB (Non-Host) | No |
| Sync I/O | No |
| Network I/O | No |
| MIDI I/O | No |
| Expansion Slots | No |
| General | |
| Display | No |
| Channels of I/O | 1 Input / 2 Outputs |
| Built-In DSP | Yes |
| Maximum Sampling Rate | 48 kHz / 24-Bit |
| Number of Microphone Inputs | 1 |
| Built-In Microphone | No |
| Input Level Adjustment | 1x Knob |
| Packaging Info | |
| Package Weight | 5.13 lb |
| Box Dimensions (LxWxH) | 18.2 x 10.6 x 5.1" |
| Physical | |
| Dimensions | 7.7 x 4.4 x 2" / 19.5 x 11.3 x 5 cm |
| Weight | 0.8 lb / 0.4 kg (without Accessories) |
| Power | |
| Power Consumption | 4 W (Maximum) |
| Power Requirements | AC/DC Power Adapter (Not Included) or USB Bus Power |
| AC/DC Power Adapter | 5 VDC at 1 A (Not Included) |
| Performance | |
| Frequency Response | Inputs: 20 Hz to 20 kHz +0/-0.5 dB 1/8" / 3.5 mm Line Outputs: 20 Hz to 20 kHz 1/4" Line Outputs: 20 Hz to 20 kHz ±0.15 dB 1/4" Headphone Outputs: 20 Hz to 20 kHz ±0.5 dB |
| Maximum Input Level | Mic Inputs: +12.5 dBu (Min Gain) Aux Inputs: +1 dBu |
| Headphone Output Power | 28 mW into 33 Ohms 8.5 mW into 270 Ohms |
| Maximum Output Level | 1/4" Line Outputs: +14 dBu 1/8" / 3.5 mm Line Outputs: -24.5 dBu 1/8" / 3.5 mm Aux Outputs: -26 dBu 1/4" Headphone Outputs: +6.5 dBu at 0 dBFS |
| Impedance | 1/8" / 3.5 mm Outputs: 220 Ohms Mic Inputs: 3 Kilohms 1/4" Line Outputs: 440 Ohms Aux Inputs: 18 Kilohms 1/4" Headphone Outputs: 5 Ohms |
| THD+N | Inputs: ≤ -94 dB 1/4" Line Outputs: ≤ -96 dB 1/4" Headphone Outputs: -96 dB 1/8" / 3.5 mm Outputs: -73 dB |
| Compatibility | |
| OS Compatibility | Computer: macOS / Windows Mobile: iPadOS Only |
| Mobile Device Compatibility | iPad (with USB-C) |
| Required Hardware | Available USB-A Port |
| Signal Processing | |
| Pad | No |
| Gain/Trim Range | Up to 70 dB |
| High-Pass Filter | No |
| Solo/Mute | Mute per Input Channel |
| Digital Audio | |
| Sample Rates | Up to 48 kHz |
| Sample Rate Conversion | No |
| Bit Depths | 24-Bit |
| Sync Sources | Internal |
| Audio Storage & Playback | |
| Media/Memory Card Slot | No |
| Others | |
| Marka | Focusrite |
