| Connectivity | |
|---|---|
| Wireless | Bluetooth *Via Optional Adapter |
| Analog Audio I/O | 6x XLR 3-Pin Balanced Mic Input 2x 1/4" TRS Balanced Monitor Output 6x 1/8" / 3.5 mm TRS Unbalanced Headphone Output 1x 1/8" / 3.5 mm TRRS Unbalanced Aux In/Out |
| Phantom Power | 48 V, Selectable On/Off (Selectable on Individual Inputs) |
| Digital Audio I/O | No |
| Host Connection / USB | 1x USB-C (Class-Compliant) |
| Host Connection Protocol | USB 2.0 |
| USB (Non-Host) | No |
| MIDI I/O | No |
| Expansion Slots | No |
| General | |

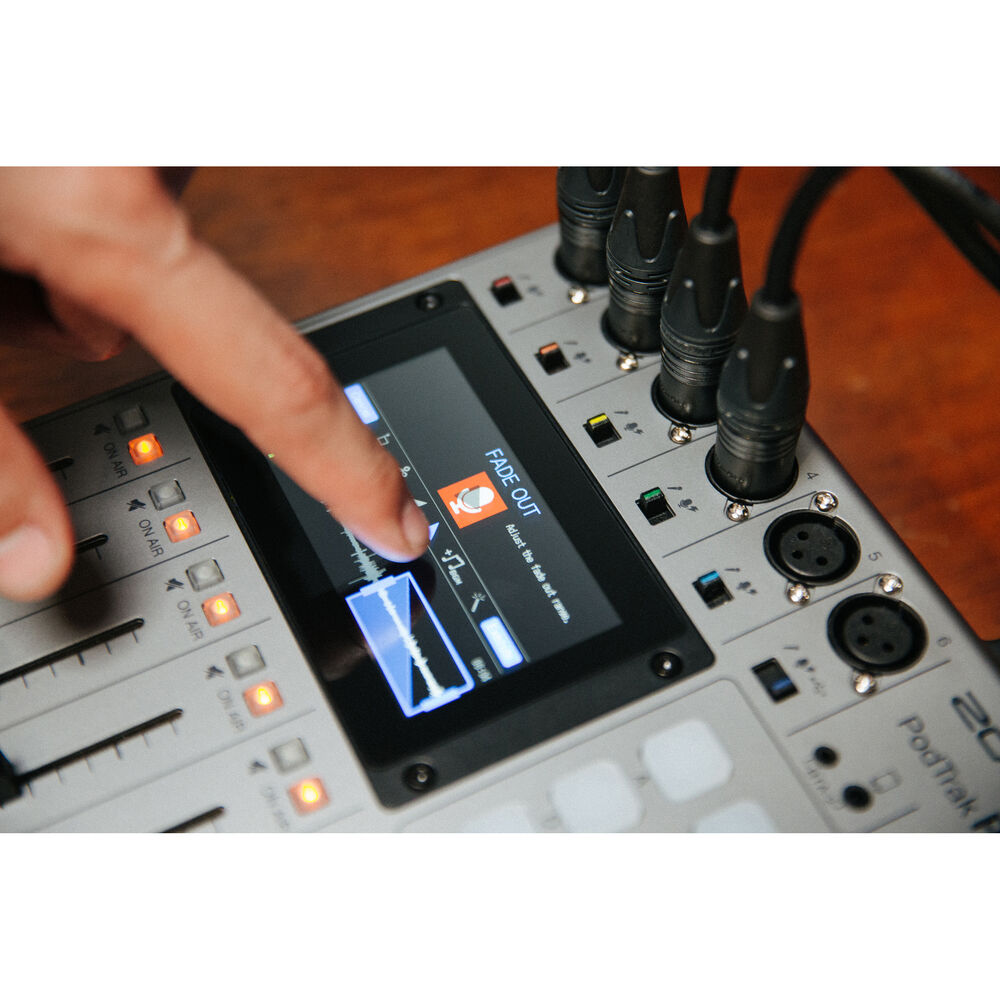

| Display | Color Touchscreen |
| Channels of I/O | Analog: 8 Input / 2 Output at 44.1 kHz |
| Built-In DSP | Yes |
| Maximum Sampling Rate | 44.1 kHz / 16-Bit |
| Number of Microphone Inputs | 6 |
| Built-In Microphone | No |
| Input Level Adjustment | 6x via Touchscreen |
| Form Factor | Desktop |
| Number of Headphone Mixes | 1x Master |
| Packaging Info | |
| Package Weight | 4.595 lb |
| Box Dimensions (LxWxH) | 14.8 x 11.2 x 3.3" |
| Physical | |
| Dimensions | 11.6 x 9.8 x 2.4" / 29.5 x 24.8 x 6.1 cm |
| Weight | 3.1 lb / 1.4 kg |
| Power | |
| Power Consumption | 5 W |
| Battery Type | 4x AA |
| Power Requirements | AC/DC Power Adapter (Included), Battery, or USB Bus Power |
| AC/DC Power Adapter | 5 VDC at 1 A |
| Approximate Battery Life | 2 Hours (AA Alkaline, Phantom Off, Recording, with Headphones) 3.5 Hours (AA NiMH, Phantom Off, Recording, with Headphones) 6.5 Hours (AA Lithium, Phantom Off, Recording, with Headphones) |
| Performance | |
| Frequency Response | 20 Hz to 20 kHz ±1 dB (at 44.1 kHz) |
| Maximum Input Level | XLR Mic Inputs: +5 dBu for 0 dBFS 1/8" / 3.5 mm Aux Inputs: +2.5 dBu |
| Headphone Output Power | 20 mW per Channel into 32 Ohms |
| Maximum Output Level | Monitor Outputs: +5.5 dBu |
| Impedance | XLR Mic Inputs: 3 Kilohms 1/8" / 3.5 mm Aux Inputs: 3 Kilohms 1/8" / 3.5 mm Headphone Outputs: 27 Ohms 1/4" Monitor Outputs: 320 Ohms |
| EIN | -124 dBu (150-Ohm Source, +70 dB Gain) |
| Compatibility | |
| OS Compatibility | macOS / Windows |
| Required Hardware | Available USB 2.0 Port USB Cable (Not Included) |
| Signal Processing | |
| Pad | No |
| Gain/Trim Range | Mic Inputs: 0 dB to +70 dB |
| Solo/Mute | Mute per Input Channel |
| Digital Audio | |
| Sample Rates | 44.1 kHz |
| Sample Rate Conversion | No |
| Bit Depths | 16-Bit |
| Audio Storage & Playback | |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC |
| Others | |
| Marka | Zoom |
