| General | |
|---|---|
| Dimensions | 19.0 x 1.8 x 11.3" / 48.3 x 4.4 x 28.6 cm |
| Weight | 7.1 lb / 3.2 kg |
| Display | 8 x Multi-Segment LED Meters |
| Power Supply | Universal: 100 to 240 VAC, 50/60 Hz |
| Form Factor | Rackmount (1 RU) |
| Frequency Response | Inputs: 20 Hz to 20 kHz (+0.5 dB, -1.5 dB) |
| Pad | -8 dB (Selectable per Channel) |
| Mic Preamps | 8 |
| Gain Control | 8 x Knobs |
| Bit Depth | 24-Bit |

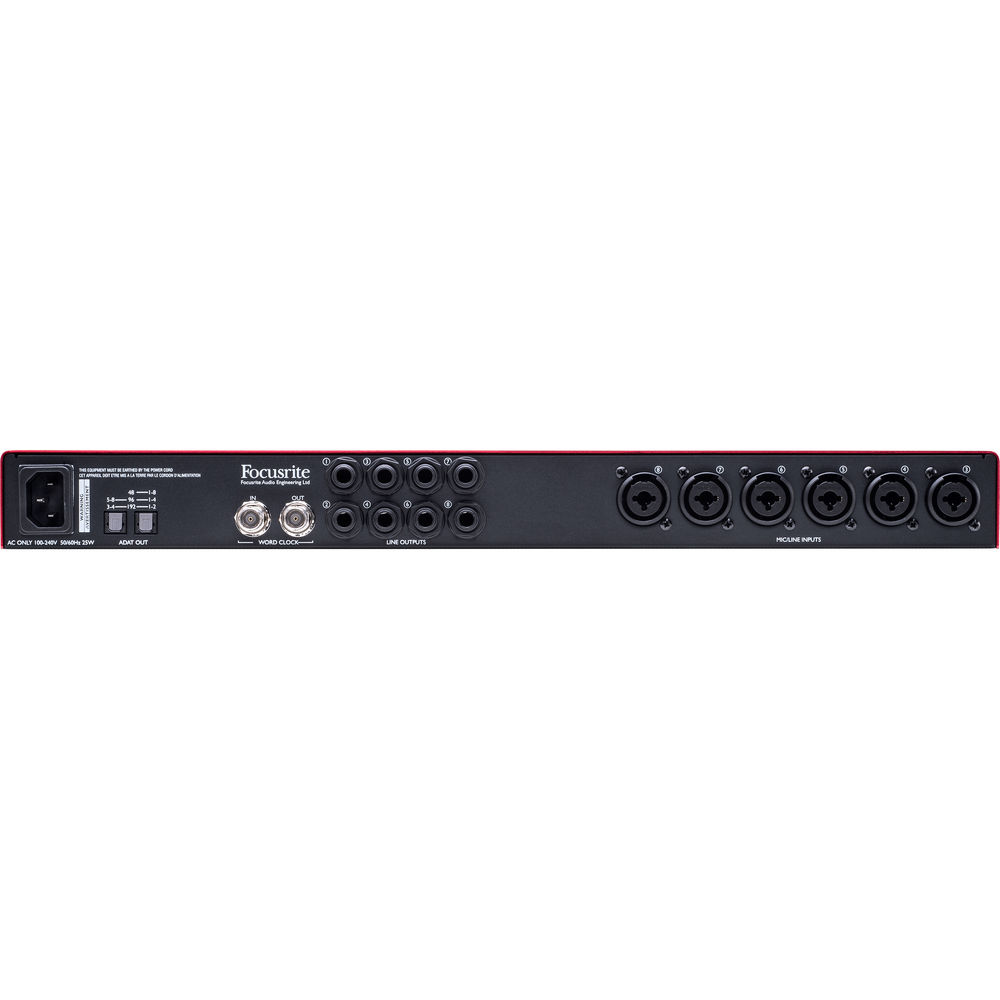

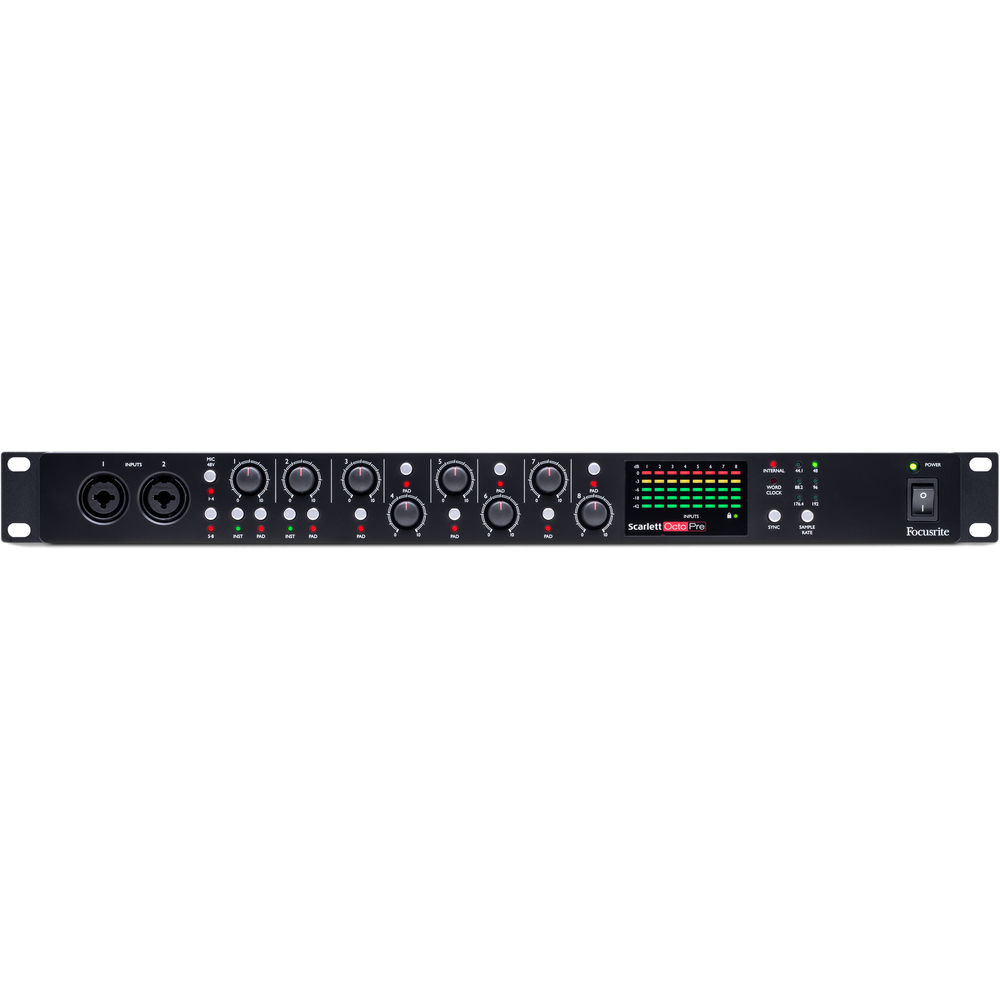

| Analog Audio I/O | 2 x XLR-1/4" TRS Combo Balanced/Unbalanced Mic/Line/Hi-Z Inputs (Front Panel) 6 x XLR-1/4" TRS Combo Balanced Mic/Line Inputs 8 x 1/4" TRS Balanced Line Outputs |
| Maximum Input Level | Mic Input (Pad Off): +8 dBu Mic Input (Pad On): +16 dBu Line Input: +22 dBu Hi-Z Input: +13 dBu |
| Maximum Output Level | > +16 dBu at 0 dBFS > +21 dBu Where ADAT Output Is Not Used |
| Impedance | Mic Input: 3 Kilohms Line Input: 49 Kilohms Hi-Z Input: 1 Megohm Line Output: 136 Ohms for Units with Serial Number ≤ W860083007515 Line Output: 576 Ohms for Units with Serial Number ≤ W860083007515 Wordclock Input: 75 Ohms Wordclock Output: 75 Ohms |
| Phantom Power | +48 V, On/Off Switchable in 4-Channel Banks (1-4 and 5-8) |
| Digital Audio I/O | 2 x TOSLINK Optical ADAT Outputs (SMUX and SMUX 4 Support) |
| EIN | Mic Inputs: -127 dBu |
| Sync I/O | 1 x BNC Female Wordclock Input 1 x BNC Female Wordclock Output |
| Gain Range | Inputs: 50 dB |
| Dynamic Range | Mic/Line Inputs: 109 dB (A-Weighted) Hi-Z Inputs: 108 dB (A-Weighted) |
| THD + N | Mic Inputs: <0.001% Line Inputs: <0.002% Hi-Z Inputs: <0.01% Line Outputs: <0.001% |
| Word Clock Specs | Input Voltage: 2.5 V Output Voltage: 5 V |
| Sample Rates | 44.1, 48, 88.2, 96, 176.4, and 192 kHz |
| Packaging Info | |
| Package Weight | 10.55 lb |
| Box Dimensions (LxWxH) | 23.7 x 14 x 4.1" |
| Others | |
| Marka | Focusrite |
