| Connectivity | |
|---|---|

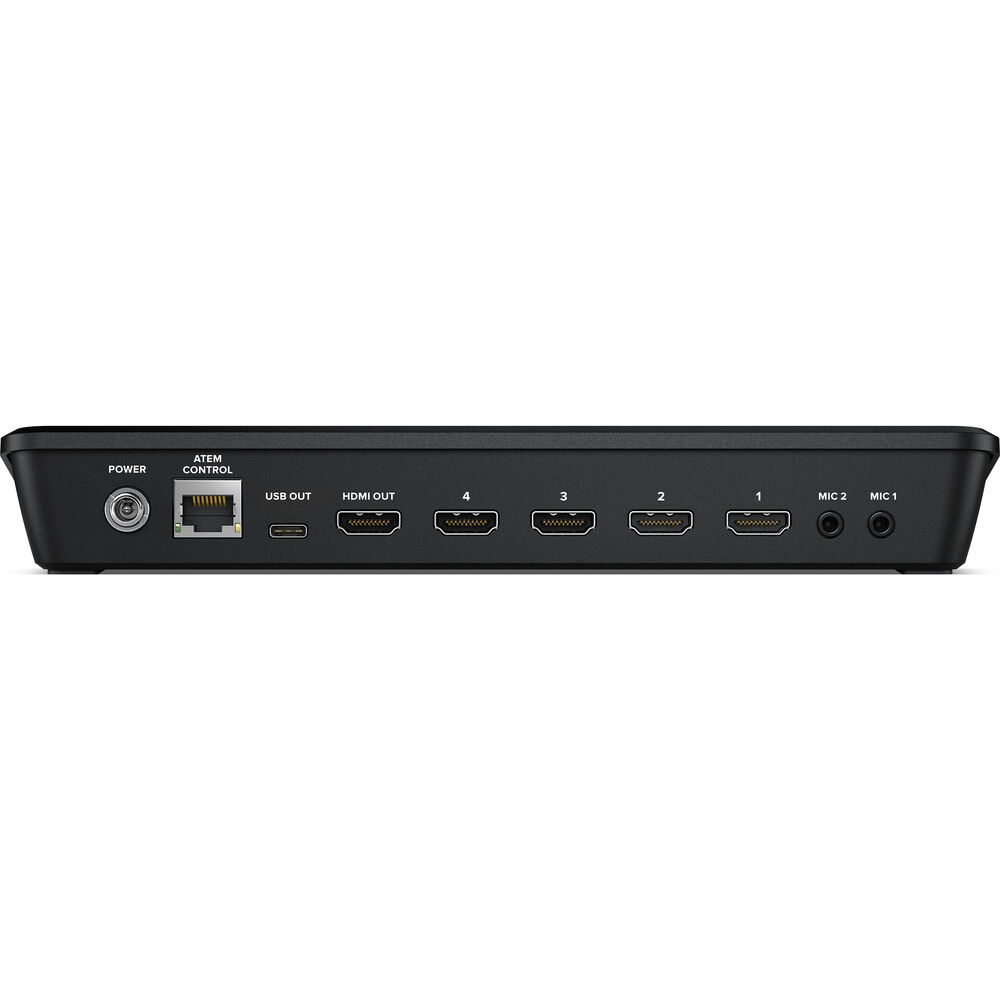

| Other I/O | 1x RJ45 Control, Firmware, LAN, Sync, Tally, Timecode Input/Output 1x USB-C Control, Firmware Input/Output |
| General | |
| Dimensions | 9.35 x 4.07 x 1.38" / 23.75 x 10.34 x 3.51 cm |
| Weight | 19.4 oz / 550 g |
| Operating Conditions | 41 to 104°F / 5 to 40°C up to 90% Humidity |
| Storage Conditions | 14 to 140°F / -10 to 60°C |
| Packaging Info | |
| Package Weight | 2.29 lb |
| Box Dimensions (LxWxH) | 11.2 x 6.5 x 4.6" |
| Power | |
| Power Consumption | 36 W |
| Power I/O | 1x Barrel (12 VDC ) Input |
| IP Encoding/Decoding | |
| IP Video | H.264: 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding |
| Transport Protocols | RTMP |
| Simultaneous Streams | 1 Streams |
| Processing | |
| Switching Type | Pushbutton |
| Color Processing | 10-Bit 4:2:2 YUV |
| Mix Effects | |
| Available M/E Layers | 5 M/E |
| Effect Types | 1x DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key |
| Downstream Keys | 1x Chroma, DVE 2x Luma |
| Generators | 1x Pattern 2x Color |
| Audio Mixing | 2-Channel Mixing |
| Hardware | |
| OS Compatibility | macOS 10.14 or Later Windows 10 |
| Processor | Not Specified by Manufacturer |
| Wi-Fi | No |
| Bluetooth | No |
| Input | |
| Video Inputs | 4x HDMI Female |
| Number of Video Input Sources | 4 |
| Input Video Format | HDMI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
| Embedded Audio Input | HDMI: 2-Channel (per Input) |
| Audio Inputs | 2x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Input Audio Format | Analog |
| Output | |
| Video Outputs | 1x HDMI |
| Video Output Channels | 1 |
| Output Video Format | HDMI / RJ45 (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
| Embedded Audio Output | HDMI: 2-Channel (per Output) |
| Multiview Output | Yes |
| Monitor Output | 1x HDMI |
| Others | |

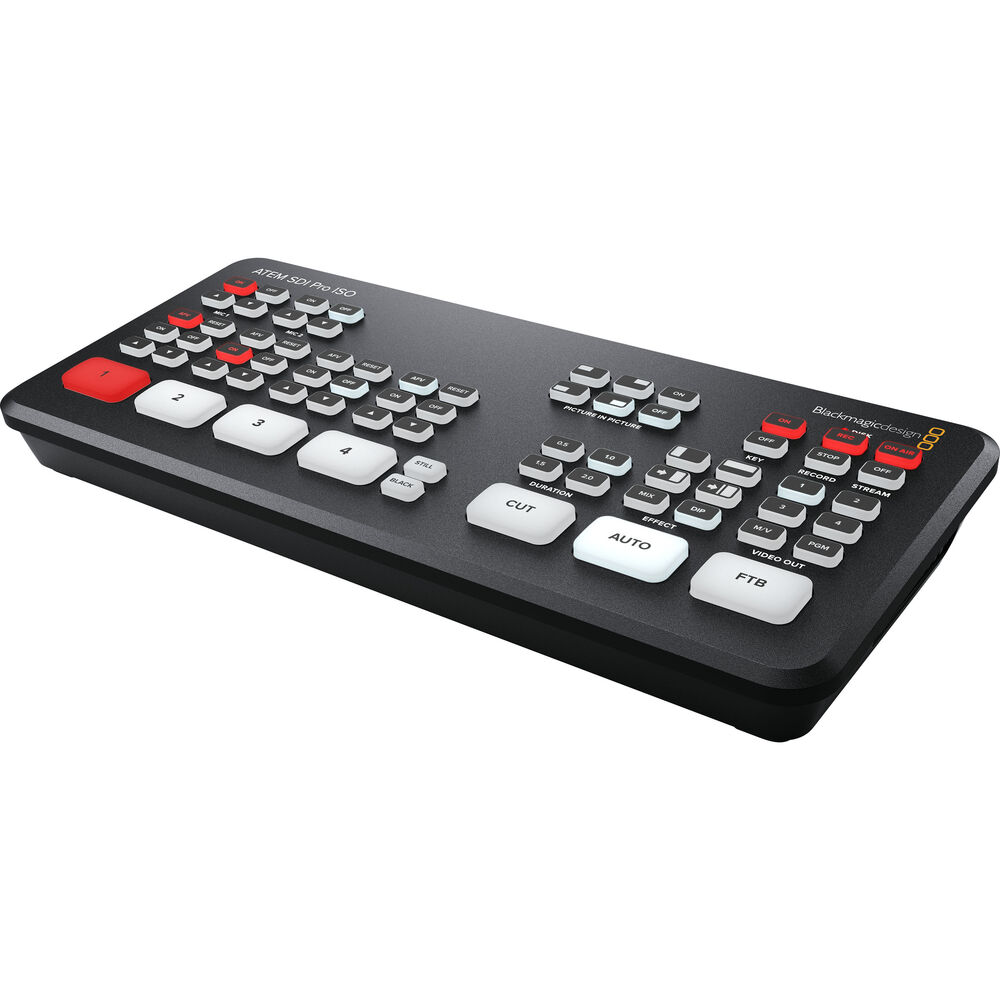

| Marka | Blackmagic Design |
