| Connectivity | |
|---|---|
| HDCP Support | No |
| Other I/O | 1x RJ45 Control Input/Output |
| General | |
| Dimensions | 9.35 x 4.67 x 1.38" / 23.75 x 11.86 x 3.51 cm |
| Weight | 23.9 oz / 678 g |
| Operating Conditions | 37 to 72°F / 5 to 40°C up to 90% Humidity |
| Storage Conditions | 14 to 140°F / -10 to 60°C |
| Power | |
| Power Consumption | Device: 18 W |
| Power I/O | 1x Barrel (12 VDC ) Input |
| Processing | |
| Switching Type | IR Remote, Pushbutton, Software |
| Mix Effects | |
| Available M/E Layers | 5 M/E |
| Effect Types | DVE, Transition, Chroma Key |
| Generators | 1x Pattern 2x Color |
| Audio Mixing | 2-Channel Mixing |
| Hardware | |
| OS Compatibility | macOS 11 or Later / Windows 10 or Later |
| Wireless | No |
| Processor | Not Specified by Manufacturer |
| Input | |

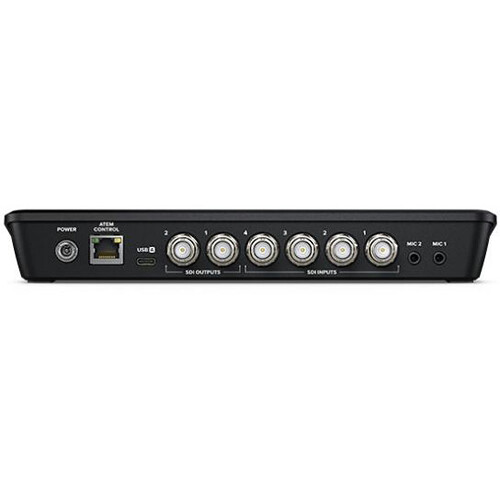

| Video Inputs | 4x BNC (3G-SDI) |
| Number of Video Input Sources | 4 |
| Input Video Format | SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 56/59.94/60 fps 720p at 50/59.94/60 fps |
| Embedded Audio Input | SDI: 2-Channel (per Input) |
| Audio Inputs | 2x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Input Audio Format | Analog |
| Output | |
| Video Outputs | 2x BNC (3G-SDI) (Program) |
| Video Output Channels | 3 |
| Output Video Format | SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps USB-C (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
| Embedded Audio Output | SDI |
| Multiview Output | No |
| Others | |
| Marka | Blackmagic Design |
