| Connectivity | |
|---|---|
| HDCP Support | No |
| Other I/O | 1x RJ45 Control Input/Output |
| General | |
| Dimensions | 14.56 x 5.94 x 1.56" / 36.98 x 15.09 x 3.96 cm |
| Weight | 3.13 lb / 1.42 kg |
| Operating Conditions | 37 to 72°F / 5 to 40°C up to 90% Humidity |
| Storage Conditions | 14 to 140°F / -10 to 60°C |
| Packaging Info | |
| Package Weight | 4.98 lb |
| Box Dimensions (LxWxH) | 21.1 x 10.7 x 2.6" |
| Power | |
| Power Consumption | Device: 36 W |
| Power I/O | 1x Barrel (12 VDC ) Input |
| IP Encoding/Decoding | |
| IP Video | 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding |
| Processing | |
| Switching Type | IR Remote, Pushbutton, Software |
| Mix Effects | |
| Available M/E Layers | 9 M/E |
| Effect Types | DVE, Transition, Chroma Key, Luma Key |
| Generators | 5x Pattern 2x Color |
| Audio Mixing | 2-Channel Mixing |
| Hardware | |
| OS Compatibility | macOS 11 or Later / Windows 10 or Later |
| Wireless | No |
| Processor | Not Specified by Manufacturer |
| Input | |

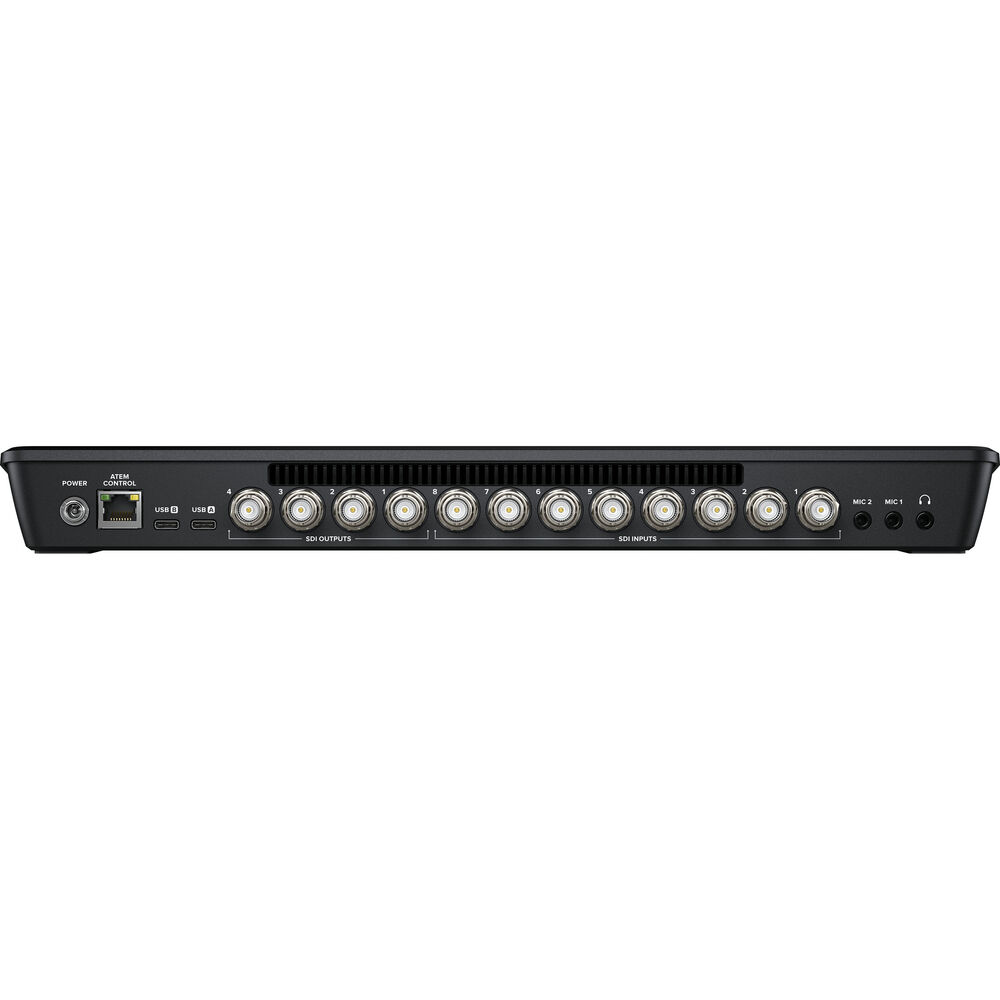

| Video Inputs | 8x BNC (3G-SDI) |
| Number of Video Input Sources | 8 |
| Input Video Format | SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 56/59.94/60 fps 720p at 50/59.94/60 fps |
| Embedded Audio Input | SDI: 2-Channel (per Input) |
| Audio Inputs | 2x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Input Audio Format | Analog |
| Output | |
| Video Outputs | 4x BNC (3G-SDI) (Program) 2x USB-C |
| Video Output Channels | 6 |
| Output Video Format | SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps USB-C (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
| Embedded Audio Output | SDI: 2-Channel (per Output) |
| Audio Outputs | 1x 1/8" / 3.5 mm TRS Analog |
| Multiview Output | Yes |
| Output Audio Format | Analog |
| Others | |

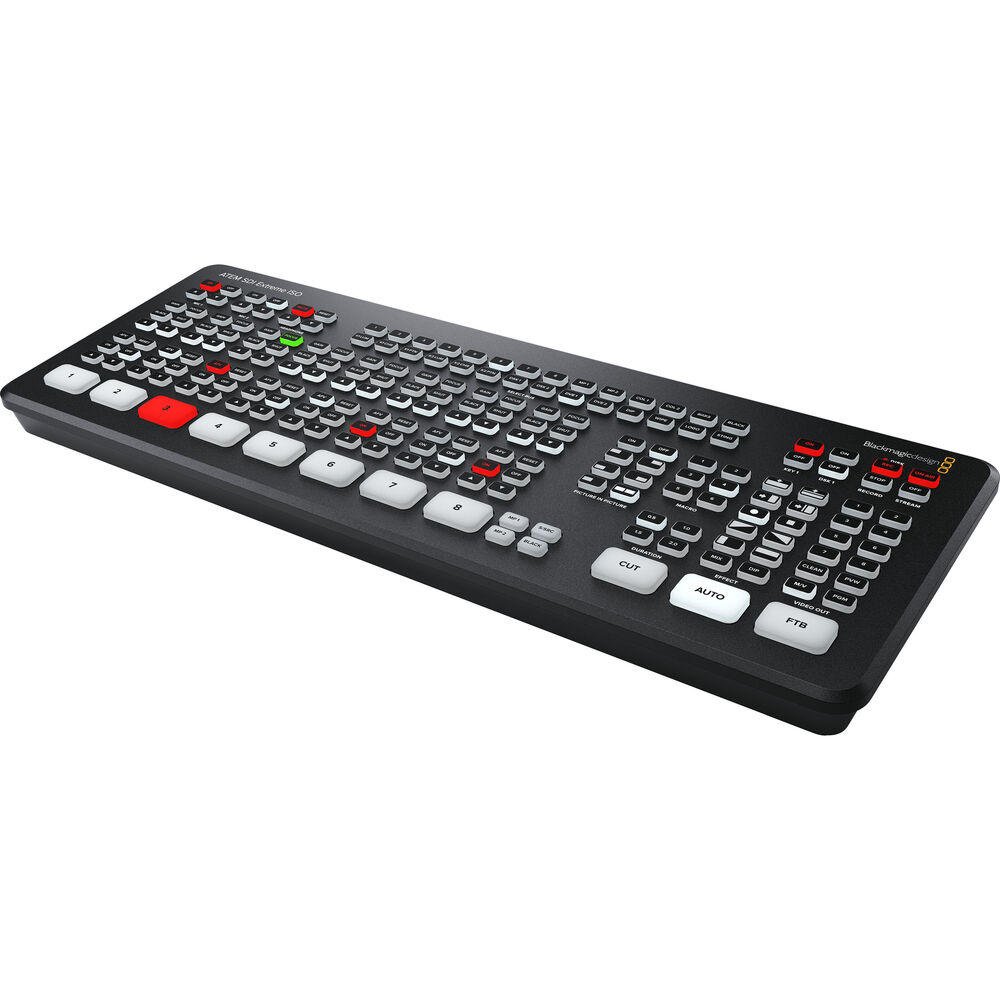

| Marka | Blackmagic Design |
Price:
110.749,72 ₺
