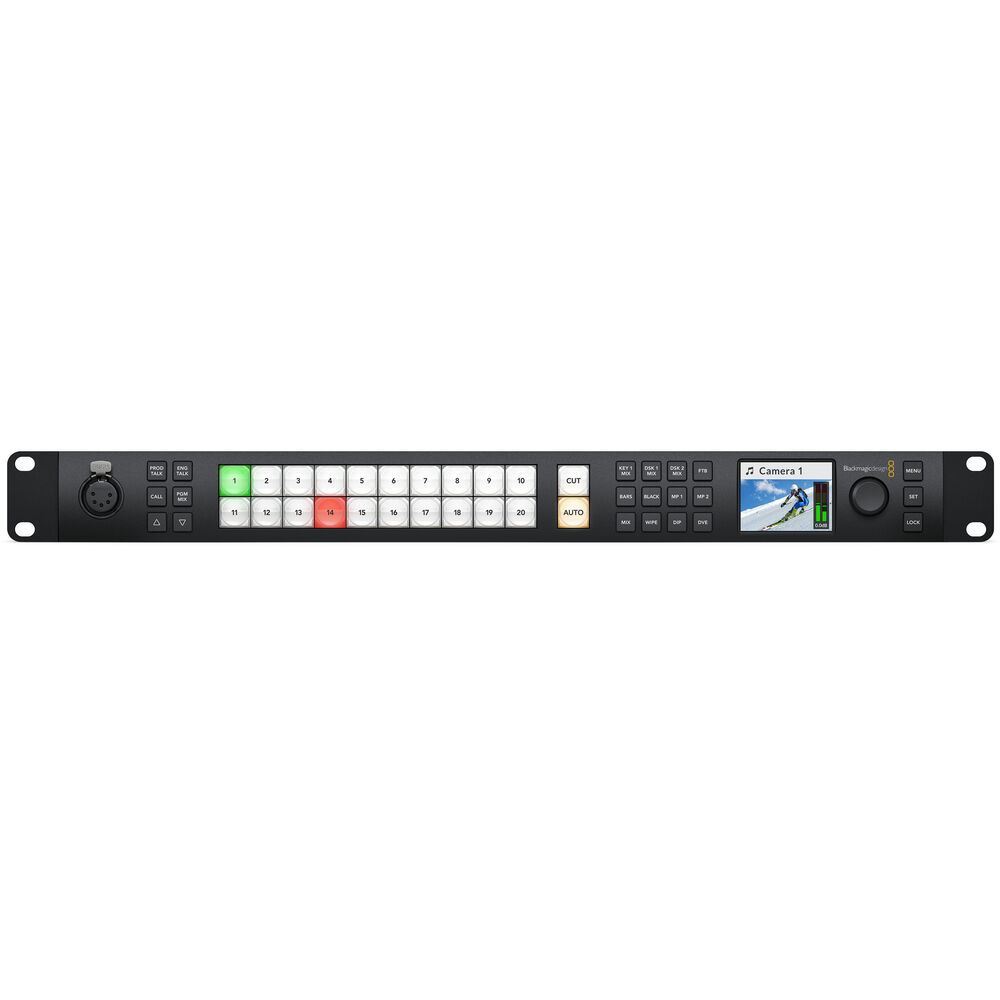

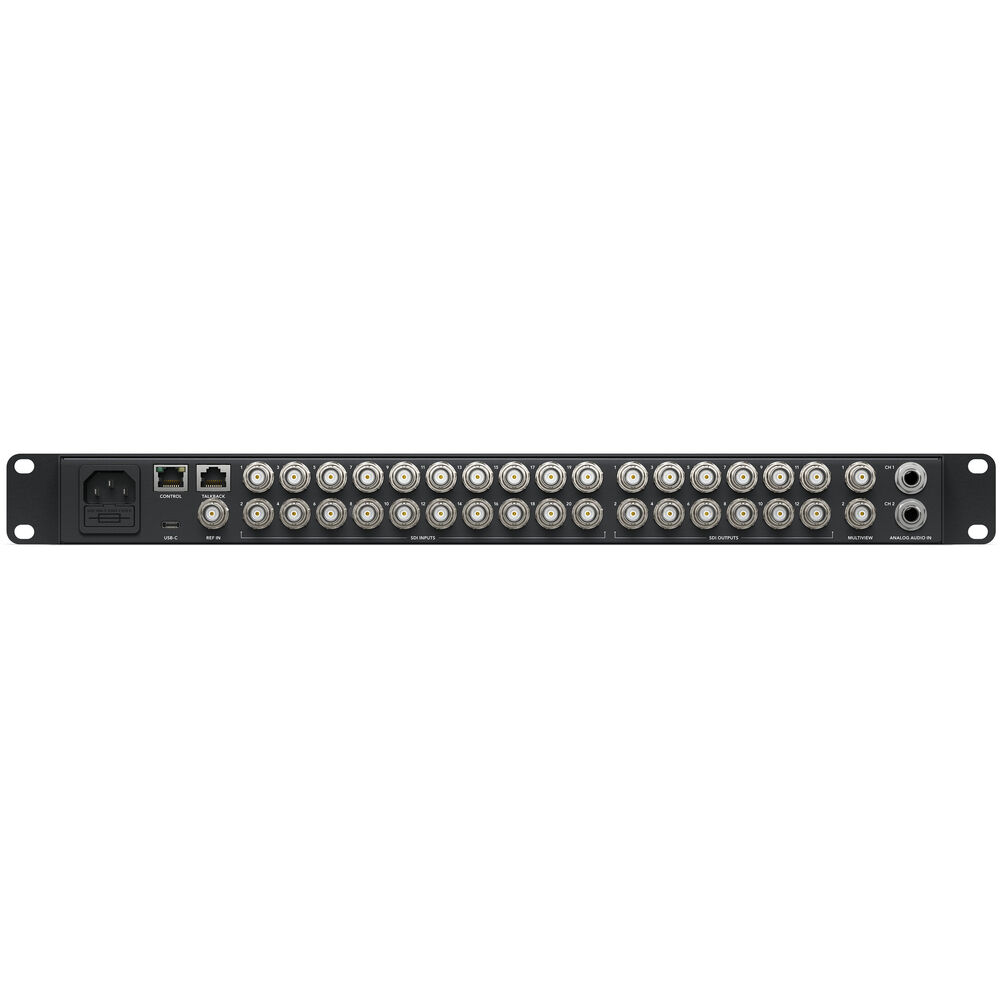

Blackmagic Design ATEM 2 M/E Constellation HD

Price:

125.486,80 ₺
Summer Special | Get 50% Off | Code #GET50
  2. Shop
  3. Prodüksiyon Ekipmanları
  4. Canlı Yayın ve Prodüksiyon Switcher
  5. Blackmagic Design ATEM 2 M/E Constellation HD
  6. Canlı Yayın ve Prodüksiyon Switcher
Blackmagic Design ATEM 1 M/E Constellation HD
Blackmagic Design ATEM 1 M/E Constellation HD
73.630,01 ₺
73.630,01 ₺
Blackmagic Design ATEM 4 M/E Constellation HD
Blackmagic Design ATEM 4 M/E Constellation HD
273.411,64 ₺
273.411,64 ₺

Blackmagic Design ATEM 2 M/E Constellation HD

(0 review)
125.486,80 ₺ 125.486,80 ₺

  • Marka - Blackmagic Design
  • Dimensions
  • Weight
  • Package Weight
  • Box Dimensions (LxWxH)
  • Operating Conditions
  • Storage Conditions
  • OS Compatibility
  • Power Consumption
  • Power I/O
  • Display Size
  • HDCP Support
  • Wireless
  • Rack Form Factor
  • IP Video
  • Switching Type
  • Video Inputs
  • Video Outputs
  • Other I/O
  • Available M/E Layers
  • Number of Video Input Sources
  • Video Output Channels
  • Color Processing
  • Input Video Format
  • Output Video Format
  • Video Standard Compliance
  • Effect Types
  • Processor
  • Embedded Audio Input
  • Embedded Audio Output
  • Downstream Keys
  • Audio Inputs
  • Generators
  • Latency
  • Audio Mixing
  • Multiview Output
  • Input Audio Format
Blackmagic Design
Şartlar ve Koşullar
Tax Free Zone kapsamında satın alabilirsiniz.
Nakliye: 2-3 İş Günü
Bize Ulaşın
Display
Display Size 2.2"
Connectivity
HDCP Support No
Other I/O 1x BNC Blackburst, Reference, Tri-Level Sync Input 1x RJ45 Control 1x RJ45 Talkback Input/Output 1x XLR 5-Pin Talkback Input/Output
Video Standard Compliance SMPTE 292M/296M/424M/425M-A/425M-B
General
Dimensions 19 x 7.16 x 1.74" / 48.3 x 18.19 x 4.42 cm
Weight 6.57 lb / 2.98 kg
Operating Conditions 32 to 72°F / 0 to 40°C up to 90% Humidity
Storage Conditions -4 to 140°F / -20 to 60°C
Rack Form Factor 1 U
Packaging Info
Package Weight 7.89 lb
Box Dimensions (LxWxH) 21.8 x 11.5 x 3.5"
Power
Power Consumption Device: 52 W
Power I/O 1x IEC C14 Input
IP Encoding/Decoding
IP Video 1280 x 720 to 1920 x 1080 Encoding
Processing
Switching Type Pushbutton, Software
Color Processing 10-Bit 4:2:2
Latency 10 Lines
Mix Effects
Available M/E Layers 2 M/E
Effect Types 8x Chroma Key 11x Luma Key 2x Stinger 6x DVE
Downstream Keys 2x Chroma, Luma, DVE
Generators 2x Color 11x Pattern
Audio Mixing 48-Channel Mixing
Hardware
OS Compatibility macOS 11.1 or Later / Windows 10 or Later
Wireless No
Processor Not Specified by Manufacturer
Input
Video Inputs 20x BNC (3G-SDI)
Number of Video Input Sources 20
Input Video Format SDI (10-Bit 4:2:2) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps
Embedded Audio Input SDI: 2-Channel (per Input)
Audio Inputs 2x 1/4" TRS Stereo Analog Female
Input Audio Format Analog
Output
Video Outputs 12x BNC (3G-SDI) 1x USB-C (USB Video) (Program)
Video Output Channels 12
Output Video Format SDI (10-Bit 4:2:2) 1080p at 23.98/24/25/29.97/30/50/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps
Embedded Audio Output SDI USB-C
Multiview Output 16-Way Multiview via SDI
Others
Marka Blackmagic Design
Blackmagic Design ATEM 2 M/E Constellation HD
Blackmagic Design ATEM 2 M/E Constellation HD
125.486,80 ₺
