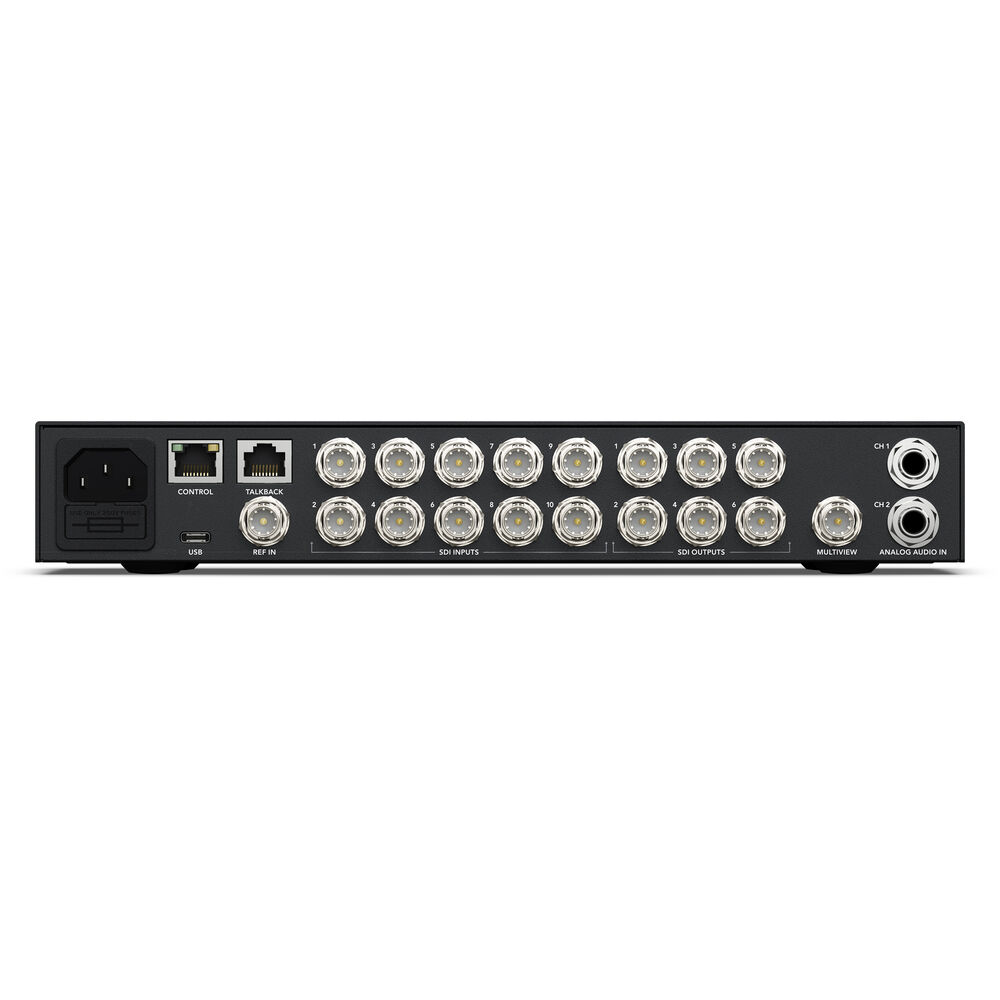

Blackmagic Design ATEM 1 M/E Constellation 4K

Price:

132.910,74 ₺
Summer Special | Get 50% Off | Code #GET50
  2. Shop
  3. Prodüksiyon Ekipmanları
  4. Canlı Yayın ve Prodüksiyon Switcher
  5. Blackmagic Design ATEM 1 M/E Constellation 4K
  6. Canlı Yayın ve Prodüksiyon Switcher
Blackmagic Design ATEM 4 M/E Constellation HD
Blackmagic Design ATEM 4 M/E Constellation HD
273.411,64 ₺
273.411,64 ₺
Blackmagic Design ATEM 2 M/E Constellation 4K
Blackmagic Design ATEM 2 M/E Constellation 4K
280.613,96 ₺
280.613,96 ₺

Blackmagic Design ATEM 1 M/E Constellation 4K

(0 review)
132.910,74 ₺ 132.910,74 ₺

  • Marka - Blackmagic Design
  • Dimensions
  • Weight
  • Package Weight
  • Box Dimensions (LxWxH)
  • Operating Conditions
  • Storage Conditions
  • OS Compatibility
  • Power Consumption
  • Power I/O
  • Display Size
  • HDCP Support
  • Wireless
  • Rack Form Factor
  • Switching Type
  • Video Inputs
  • Video Outputs
  • Other I/O
  • Available M/E Layers
  • Number of Video Input Sources
  • Video Output Channels
  • Processing Resolution
  • Color Processing
  • Input Video Format
  • Output Video Format
  • Video Standard Compliance
  • Effect Types
  • Processor
  • Embedded Audio Input
  • Embedded Audio Output
  • Downstream Keys
  • Audio Inputs
  • Generators
  • Latency
  • Audio Mixing
  • Multiview Output
Blackmagic Design
Şartlar ve Koşullar
Tax Free Zone kapsamında satın alabilirsiniz.
Nakliye: 2-3 İş Günü
Bize Ulaşın
Display
Display Size 2.2"
Connectivity
HDCP Support No
Other I/O 1x USB-C 1x XLR 5-Pin Talkback Input 1x XLR 5-Pin Talkback Output 1x RJ45 Control, LAN Input/Output 1x RJ45 Talkback Input/Output 1x BNC Blackburst, Reference, Tri-Level Sync Input
Video Standard Compliance SMPTE 292M/296M/424M/424M-A/424M-B/ST 2081-10/ST-2081-1/ST-2082-1/ST-2082-10
General
Dimensions 11 x 8.91 x 1.74" / 27.9 x 22.63 x 4.42 cm
Weight 4.12 lb / 1.87 kg
Operating Conditions 32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions -4 to 140°F / -20 to 60°C
Rack Form Factor 1 U
Packaging Info
Package Weight 5.69 lb
Box Dimensions (LxWxH) 13.9 x 10.8 x 3.5"
Power
Power Consumption Device: 100 to 240 VAC (90 W)
Power I/O 1x IEC C13 Input
Processing
Switching Type Pushbutton, Software
Processing Resolution UHD 4K
Color Processing 10-Bit 4:2:2
Latency 10 Lines
Mix Effects
Available M/E Layers 1 M/E
Effect Types 4x Chroma Key 5x Luma Key 1x DVE, Stinger 1x DVE
Downstream Keys 1x Chroma, Luma, DVE
Generators 2x Color 5x Pattern
Audio Mixing 48-Channel Mixing
Hardware
OS Compatibility Windows 10 or Later / macOS 13 to 14
Wireless Wi-Fi
Processor Not Specified by Manufacturer
Input
Video Inputs 10x BNC (12G-SDI) Female
Number of Video Input Sources 10
Input Video Format SDI UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps
Embedded Audio Input SDI: 16-Channel
Audio Inputs 2x 1/4" TRS
Output
Video Outputs 6x BNC (12G-SDI) Female
Video Output Channels 6
Output Video Format SDI UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps
Embedded Audio Output SDI: 16-Channel
Multiview Output 16-Way Multiview
Others
Marka Blackmagic Design
