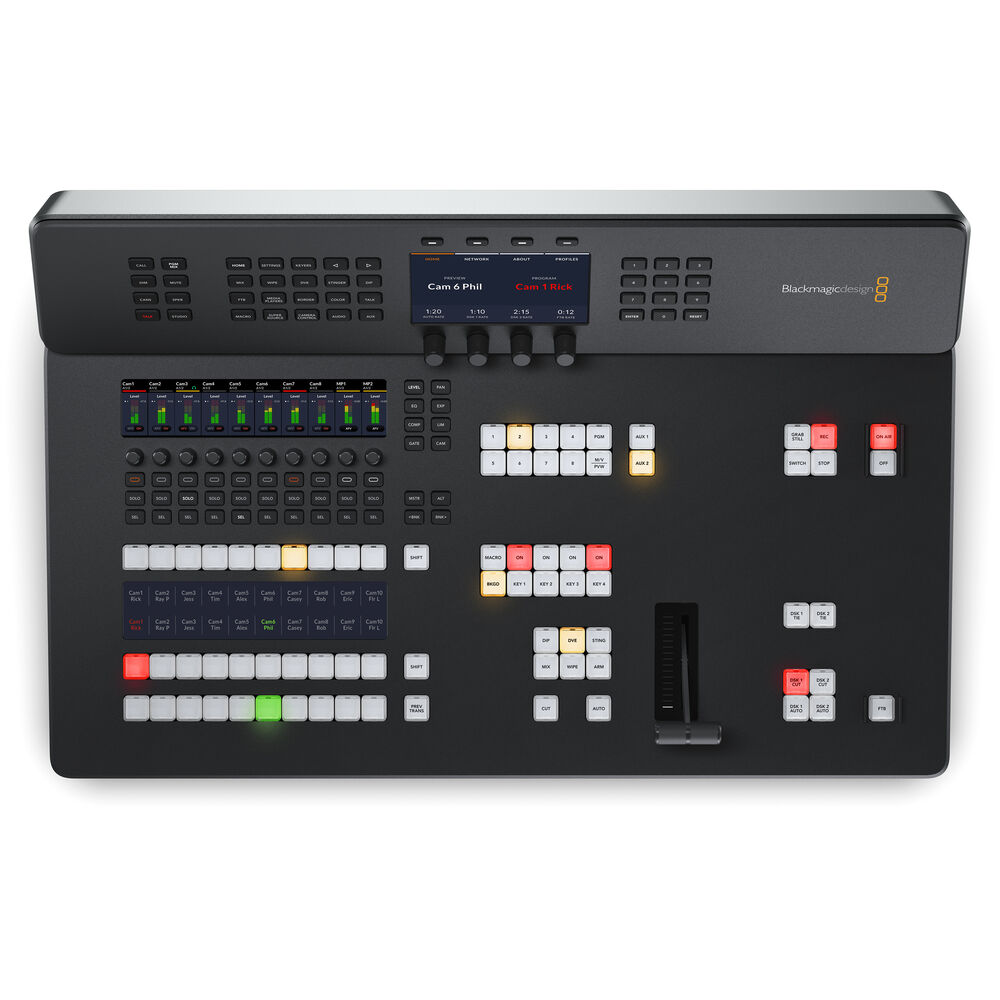

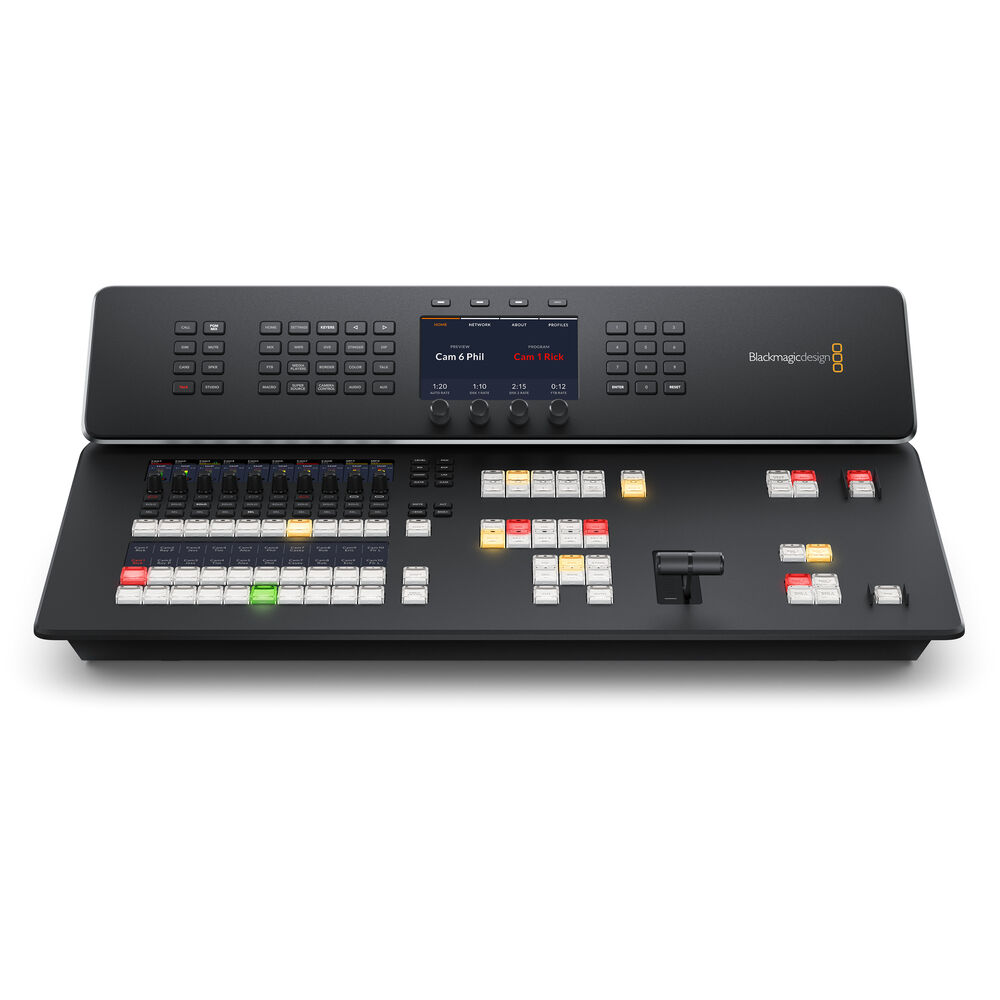

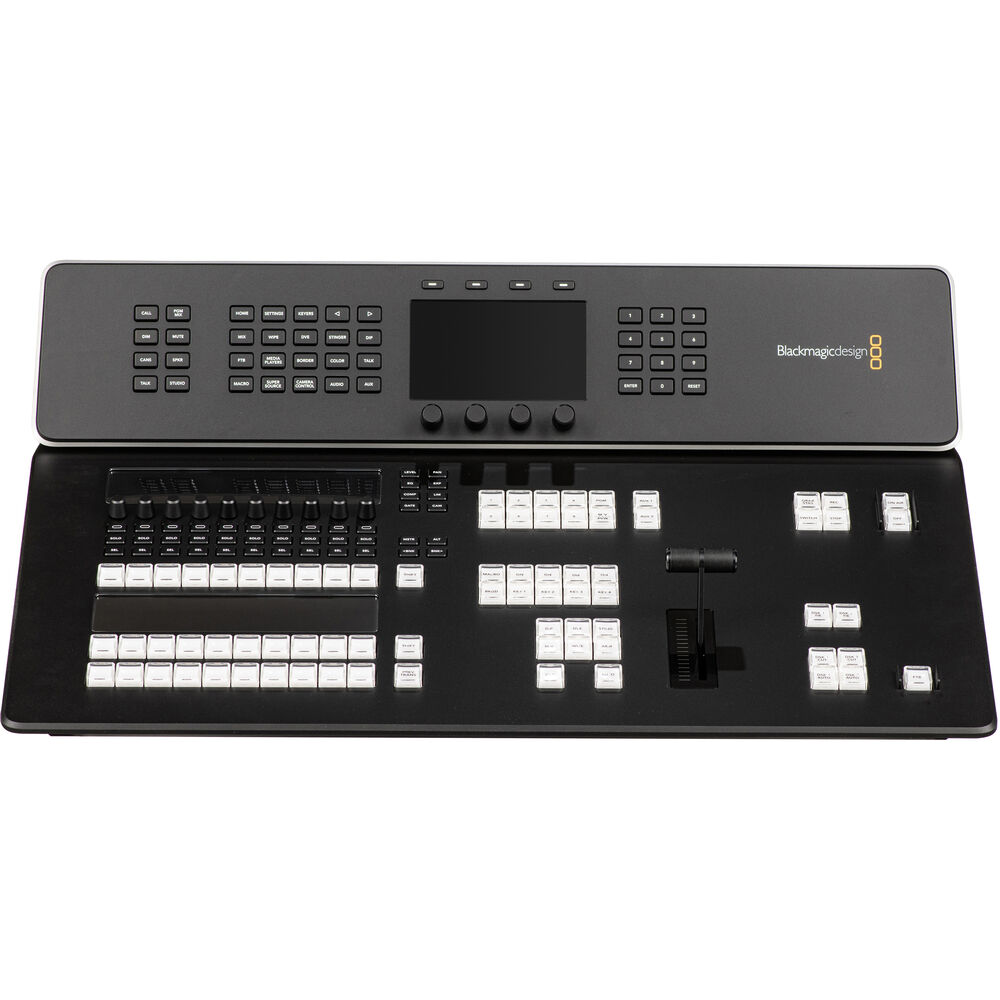

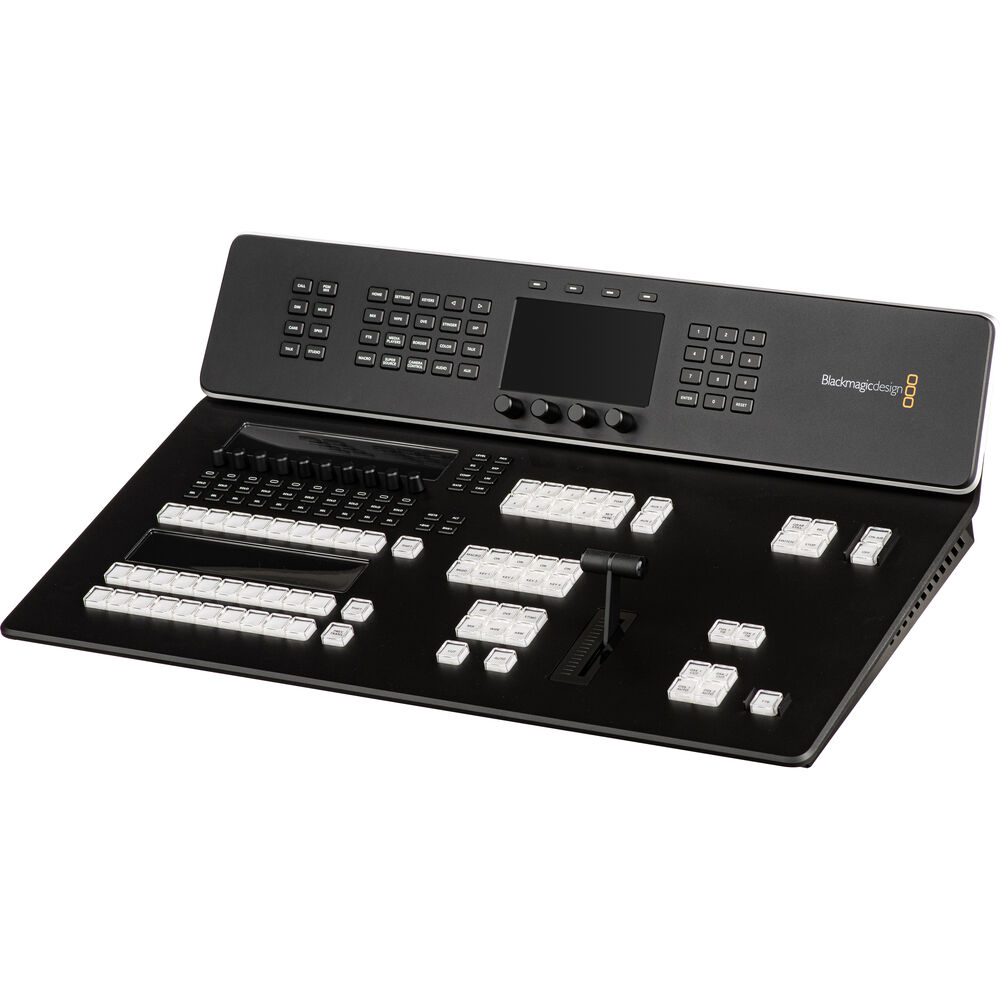

Blackmagic Design ATEM Television Studio HD8

Price:

221.554,84 ₺
Summer Special | Get 50% Off | Code #GET50
  2. Shop
  3. Prodüksiyon Ekipmanları
  4. Canlı Yayın ve Prodüksiyon Switcher
  5. Blackmagic Design ATEM Television Studio HD8
  6. Canlı Yayın ve Prodüksiyon Switcher
Blackmagic Design ATEM Streaming Bridge
Blackmagic Design ATEM Streaming Bridge
18.559,86 ₺
18.559,86 ₺
Blackmagic Design ATEM Television Studio HD8 ISO
Blackmagic Design ATEM Television Studio HD8 ISO
295.572,66 ₺
295.572,66 ₺

Blackmagic Design ATEM Television Studio HD8

(0 review)
221.554,84 ₺ 221.554,84 ₺

  • Marka - Blackmagic Design
  • Dimensions
  • Weight
  • Package Weight
  • Box Dimensions (LxWxH)
  • Operating Conditions
  • Storage Conditions
  • OS Compatibility
  • Power Consumption
  • Power I/O
  • Wireless
  • IP Video
  • Switching Type
  • Video Inputs
  • Video Outputs
  • Other I/O
  • Transport Protocols
  • Available M/E Layers
  • Number of Video Input Sources
  • Video Output Channels
  • Processing Resolution
  • Color Processing
  • Input Video Format
  • Output Video Format
  • Video Standard Compliance
  • Effect Types
  • Embedded Audio Input
  • Embedded Audio Output
  • Downstream Keys
  • Audio Inputs
  • Generators
  • Audio Outputs
  • Audio Mixing
  • Multiview Output
  • Monitor Output
Blackmagic Design
Şartlar ve Koşullar
Tax Free Zone kapsamında satın alabilirsiniz.
Nakliye: 2-3 İş Günü
Bize Ulaşın
Connectivity

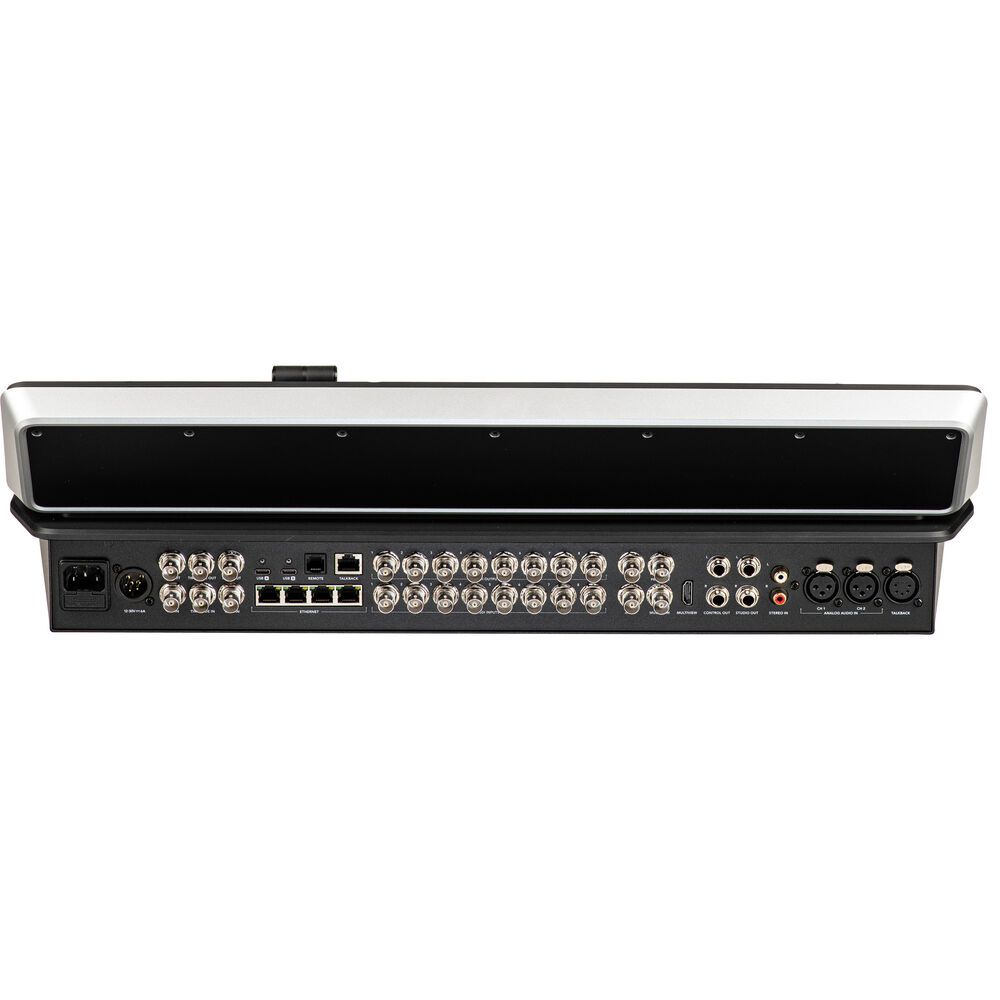

Other I/O 1x BNC Reference Input 1x BNC Reference Output 1x BNC Timecode 1x BNC Timecode 4x RJ45 LAN Input/Output 1x RJ45 Talkback Input/Output 1x RJ12 Remote Input/Output 2x USB-C Output
Video Standard Compliance SMPTE 292M/296M/424M/425M-A/425M-B
General
Dimensions 23 x 14.8 x 6.35" / 58.4 x 37.6 x 16.13 cm
Weight 14.9 lb / 6.8 kg
Operating Conditions 32 to 72°F / 0 to 40°C up to 90% Humidity
Storage Conditions -4 to 140°F / -20 to 60°C up to 90% Humidity
Packaging Info
Package Weight 26.15 lb
Box Dimensions (LxWxH) 28.5 x 21.5 x 10"
Power
Power Consumption Device: 100 W
Power I/O 1x IEC C14 (100 to 240 VAC ) Input 1x XLR 4-Pin (12 VDC ) Input
IP Encoding/Decoding
IP Video H.264: 1920 x 1080 at 60p Encoding
Transport Protocols RTMP, TCP/IP
Processing
Switching Type Pushbutton, Software, T-Bar
Processing Resolution 1080p at 60
Color Processing 10-Bit 4:2:2 RGB
Mix Effects
Available M/E Layers 4 M/E
Effect Types 1x DVE, Stinger 4x Chroma Key 7x Luma Key
Downstream Keys 2x Chroma, Luma, DVE
Generators 7x Pattern 2x Color
Audio Mixing 58-Channel Mixing
Hardware
OS Compatibility macOS 12 or Later / Windows 10 or Later
Wireless No
Input
Video Inputs 8x BNC (3G-SDI) Female
Number of Video Input Sources 8
Input Video Format SDI (10-Bit 4:2:2 RGB) 1080p at 23.98/24/25/29.97/30/50/60 fps 1080i at 50/59.94/60 fps 720p 50/59.94/60 fps
Embedded Audio Input SDI
Audio Inputs 1x BNC MADI Female 1x 2RCA Stereo Analog Female 2x XLR 3-Pin Analog Female 1x XLR 5-Pin Female
Output
Video Outputs 8x BNC
Video Output Channels 8
Output Video Format SDI (10-Bit 4:2:2 RGB) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps
Embedded Audio Output SDI
Audio Outputs 2x 1/4" TRS Stereo Analog Female
Multiview Output 16-Way Multiview
Monitor Output 1x HDMI
Others
Marka Blackmagic Design
