| General | |
|---|---|
| Dimensions | 19.0 x 1.75 x 4.6" (48.3 x 4.5 x 11.7 cm) |
| Weight | 3.20 lb (1.45 kg) |
| Operating Temperature | 41 to 122° F (5 to 50° C) |

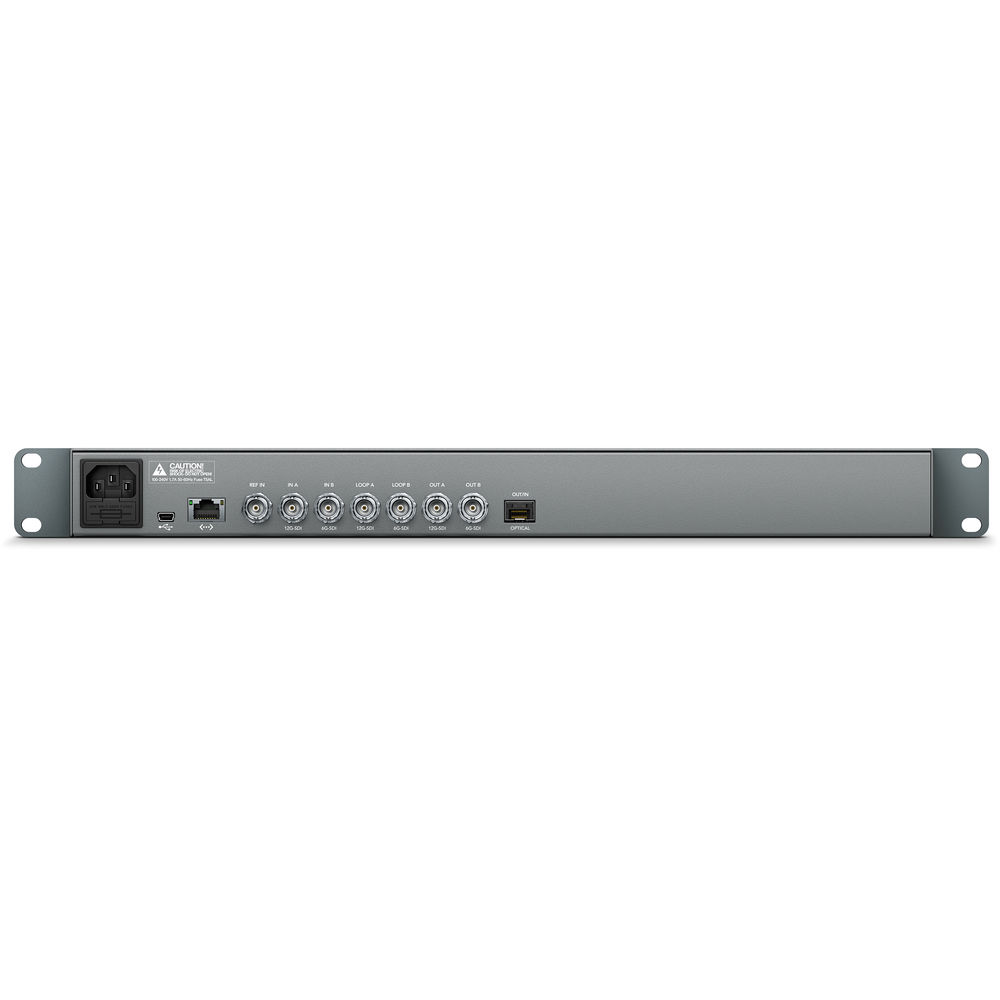

| Power Supply | 1 x Built-in international AC power supply with IEC C14 inlet 100 to 240 VAC, 50 to 60 Hz |

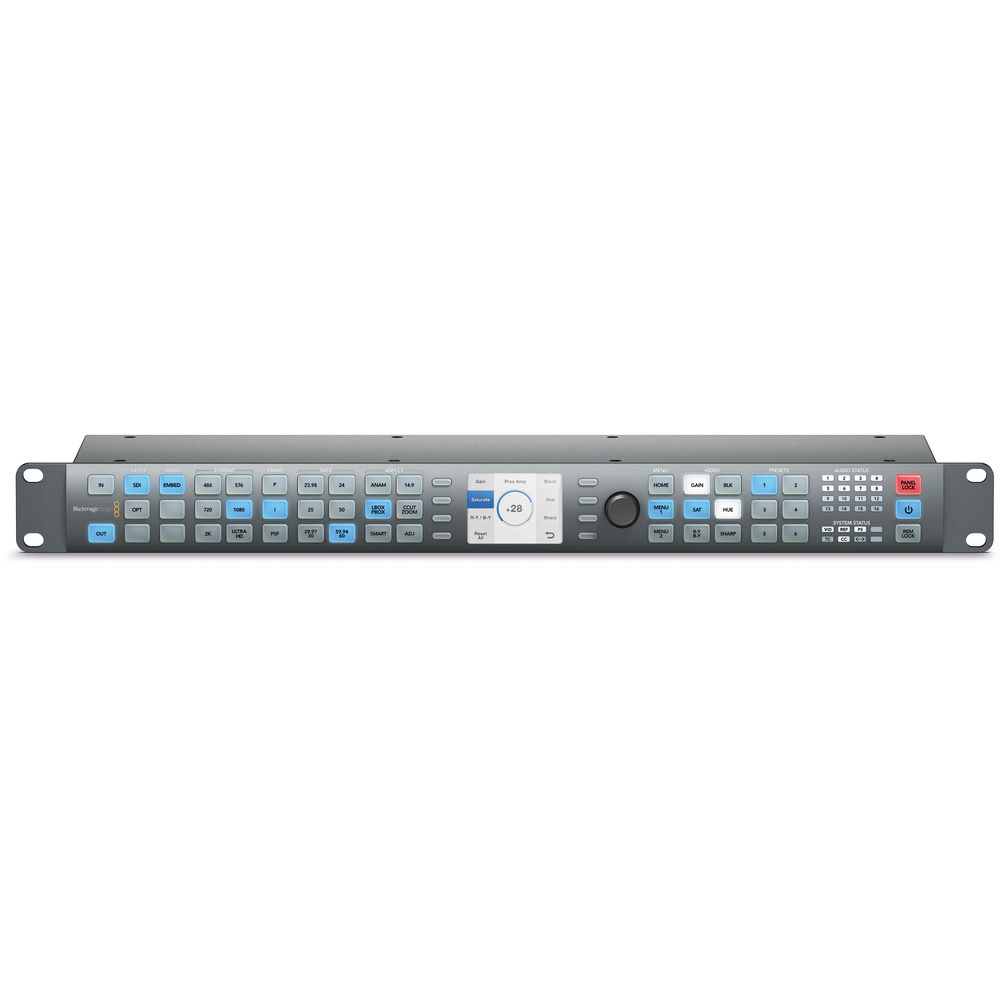

| Interface | Illuminated pushbuttons, status LEDs, and LCD with onscreen menus |
| Storage Temperature | -4 to 113° F (-20 to 45° C) |
| Supported Operating Systems | Mac OS X 10.7 Lion or later Mac OS X 10.8 Mountain Lion or later Windows 7 Windows 8 |
| SDI Video Input | 1 x 12G-SDI, 10-bit (SD, HD, 3G, 6G, and 12G switchable) 1 x 6G-SDI, 10-bit (SD, HD, 3G, and 6G switchable); usable as dual link input for 4:2:2 3G or 6G |
| Computer Interface | USB 2.0 mini B port for software updates and configuration |
| SDI Video Output | 1 x 12G-SDI, 10-bit (SD, HD, 3G, 6G, and 12G switchable) 1 x 6G-SDI, 10-bit (SD, HD, 3G, and 6G switchable); usable as dual link input for 4:2:2 3G or 6G |
| Format Support | SD 525/29.97 NTSC 625/25 PAL HD 720p 50/59.94 1080i 50/59.94 1080PsF 23.98/24/25/29.97 1080p 23.98/24/25/29.97/50/59.94 2K 2048x1080PsF 23.98/24/25/29.97 2048x1080p 23.94/24/25/29.97 UHD 4K 3840x2160p 23.98/24/25/29.97/50/59.94 |
| SDI Video Loop | 1 x 12G-SDI, 10-bit, reclocked (SD, HD, 3G, 6G, and 12G switchable) 1 x 6G-SDI, 10-bit, reclocked (SD, HD, 3G, and 6G switchable) |
| Sync Input | Blackburst in SD or TriSync HD |
| Multi-Rate Support | SDI connections are switchable between SD, HD/2K, and Ultra HD SDI switches between 270 Mb/s SD-SDI, 1.5 Gb/s HD-SDI, 3 Gb/s HD, and 6 Gb/s or 12 Gb/s Ultra HD |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M |
| SDI Audio Input | 16 channels of embedded SDI audio |
| Audio Sampling | 24-bit, 48 kHz |
| SDI Metadata Support | VITC/ATC support, SMPTE 12M Video indexing support including WSS, RP186 and AFD, SMPTE 2016 Closed captioning support for conversions to and from 608 and 708, SMPTE 334M. |
| SDI Audio Output | 16 channels of embedded SDI audio |
| Video Sampling | 4:2:2 |
| Relative Humidity | 0 to 90%, non-condensing |
| Dolby Support | Dolby AC-3 pass through in all conversions Dolby E pass through except during video frame rate conversions |
| Color Space | Rec 601, Rec 709 |
| Internal Software Upgrade | Automatic upgrades when connected via USB 2.0 |
| Color Precision | 10-bit |
| SDI Resolution | 525 NTSC, 625 PAL, 720HD, 1080HD, 2K (2048x1080) and Ultra HD 4K (3840x2160) switchable |
| Software Control | Software control utility (included) for changing settings via Windows 7 and Mac OS X |
| Format Conversion | Real time up conversion, down conversion, cross conversion |
| Aspect Ratio Conversion | Real time fixed aspect ratio conversions |
| Real Time Video Processing | Includes color correction and proc amp control |
| Colorspace Conversion | Hardware based real time |
| Packaging Info | |
| Package Weight | 3.765 lb |
| Box Dimensions (LxWxH) | 19.45 x 8.45 x 3.05" |
| Others | |
| Marka | Blackmagic Design |
