| General | |
|---|---|
| Weight | 3.4 lb / 1.56 kg (Excluding Batteries) |
| Display | 2-Digit, 7-Segment |
| USB Port | 2-In / 2-Out Micro-USB 2.0 Full Speed 44.1 kHz / 16-, 24-, 32-Bit |

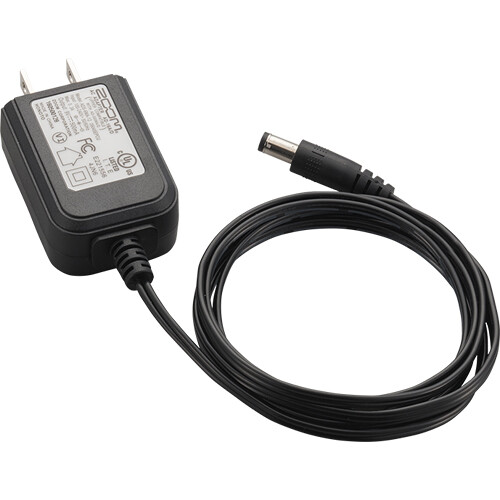

| Power | Zoom AD-16 AC Adapter, 9 VDC, 500 mA 4 x AA Battery, 3.5 Hours Continuous Operation (with Alkalines) Power Can Also Be Supplied via USB Port |

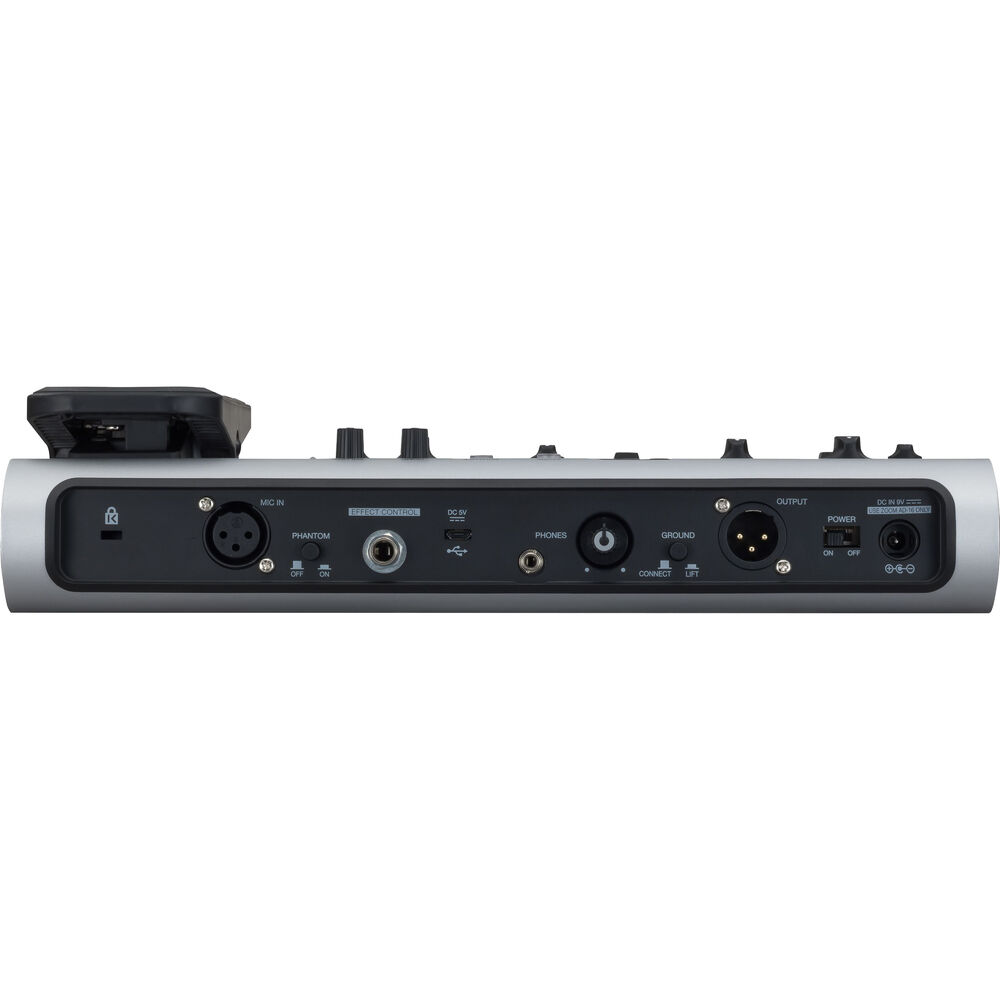

| Output | Connector: XLR 3-Pin Male, Balanced Impedance: 50 Ohms or Greater (1 kHz) Ground Lift: Switchable |
| Frequency Response | 20 Hz to 20 kHz (+1 dB / −3 dB) (200 Kilohms Load) |
| Sampling Frequency | 44.1 kHz |
| Processors | Voice Section: 12 Types Effect Section: 10 Types Harmony Section: 5 Types |
| A/D Conversion | 24-Bit, 128x Oversampling |
| Effect Patches | Preset Patches: 40 User-Created Patches: 100 |
| Signal Processing | 32-Bit |
| D/A Conversion | 24-Bit, 128x Oversampling |
| Noise Floor | -75 dBu |
| Headphone Output | 1/8" / 6.3 mm TRS Female Maximum Output Level: 20 mW + 20 mW (into 32 Ohms Load) |
| Mic Input | XLR 3-Pin Female, Balanced Phantom Power: +48 VDC Gain: +3 to +40 dB Maximum Input Level: +4 dB Input Impedance: 3 Kilohms or Higher (1 kHz) |
| Control Pedal Input | 1/4" / 6.3 mm Female (for FP02M Expression Pedal) |
| Equivalent Input Noise | -125 dBu or Less ( A-Weighted, 150 Ohms Input, +40 dBu Input Gain, Phantom Power Off) |
| External Dimensions (D x W x H) | 7.1 x 12.6 x 3" / 18.1 × 32 × 7.7 cm |
| Packaging Info | |
| Package Weight | 4.825 lb |
| Box Dimensions (LxWxH) | 19 x 8.9 x 3.5" |
| Others | |
| Marka | Zoom |
