| Connectivity | |
|---|---|

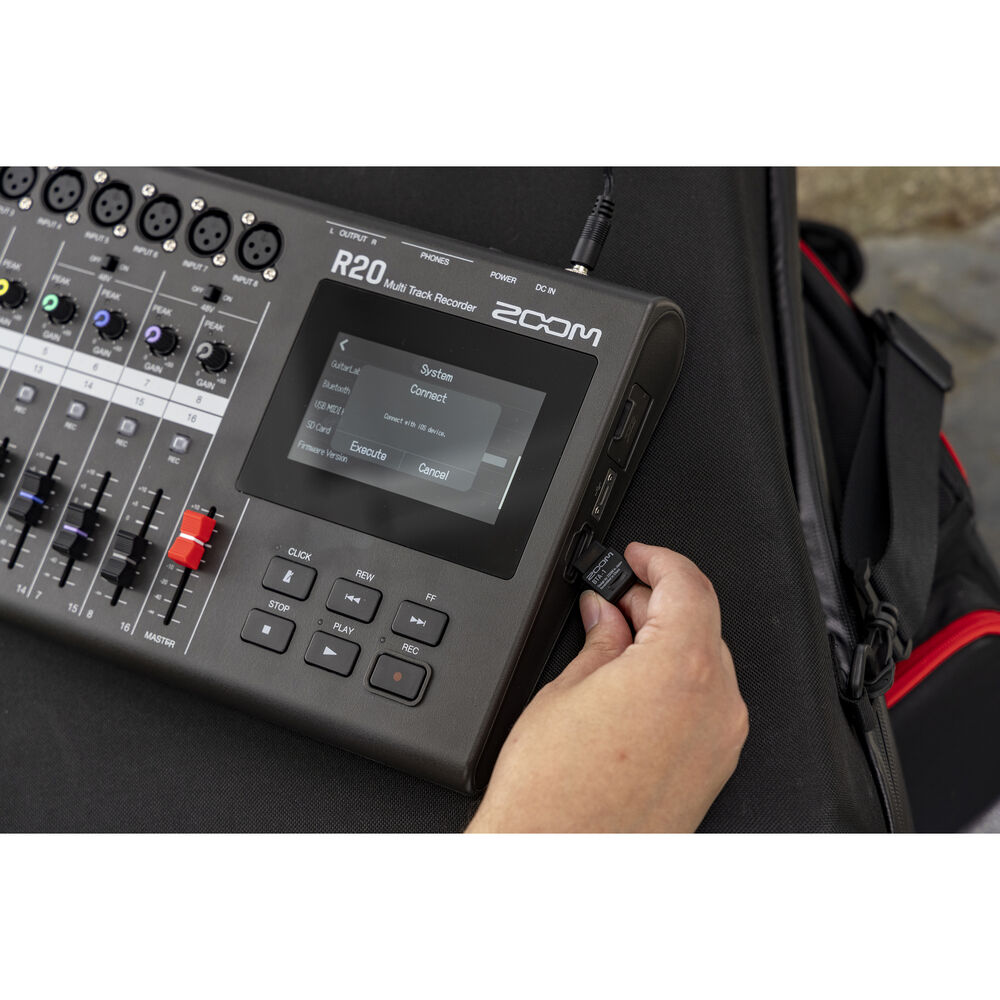

| Wireless | Bluetooth *Via Optional Adapter |
| Analog Audio I/O | 1x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 1x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input 6x XLR 3-Pin Balanced Mic/Line Input 2x 1/4" TRS Balanced Line Output 1x 1/4" TRS Unbalanced Headphone Output |
| Phantom Power | 48 V, Selectable On/Off (on 4 Channels) |
| Digital Audio I/O | No |
| Host Connection / USB | 1x USB-C |
| Host Connection Protocol | USB 2.0 |
| USB (Non-Host) | 1x USB-A (Remote) |
| Sync I/O | No |
| Network I/O | No |
| MIDI I/O | No |
| General | |

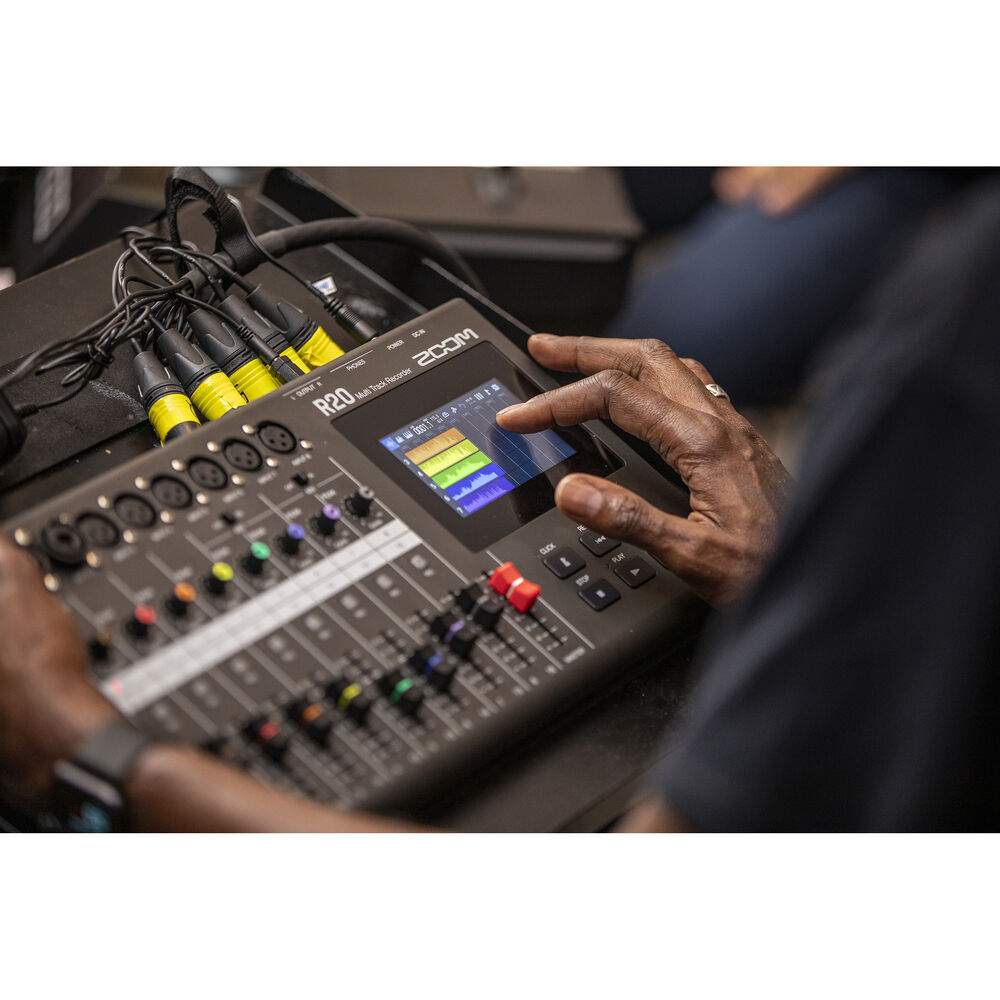

| Display | 4.3" Color LCD Touchscreen |
| Maximum Sampling Rate | 44.1 kHz / 24-Bit |
| Number of Microphone Inputs | 8 |
| Built-In Microphone | No |
| Input Level Adjustment | 8x Knob |
| Form Factor | Desktop |
| Number of Tracks | 8 |
| Maximum Simultaneous Tracks | 8x Recording / 16x Playback (at 44.1 kHz) |
| Number of Headphone Mixes | 1x Master |
| Sample Pads | No |
| Packaging Info | |
| Package Weight | 4.505 lb |
| Box Dimensions (LxWxH) | 19.7 x 9.4 x 3" |
| Physical | |
| Dimensions | 14.9 x 8.1 x 2.3" / 37.8 x 20.6 x 5.8 cm |
| Weight | 2.9 lb / 1.3 kg |
| Power | |
| Power Consumption | 11 W (Maximum) |
| Power Requirements | AC/DC Power Adapter (Included) |
| AC Input Power | Not Specified by Manufacturer |
| AC/DC Power Adapter | 12 VDC at 2 A, Center-Positive (Included) |
| Performance | |
| Frequency Response | Mic, Line Inputs: 20 Hz to 20 kHz -1 dB |
| Maximum Input Level | Mic/Line Inputs: +4 dBu for 0 dBFS |
| Headphone Output Power | 20 mW per Channel into 32 Ohms |
| Maximum Output Level | Line Outputs: +14 dBu |
| Impedance | XLR Mic Inputs: 3.9 Kilohms 1/4" Line Inputs: 5.3 Kilohms Line Outputs: 200 Ohms Hi-Z Inputs: 1 Megohm Headphone Outputs: 33 Ohms |
| EIN | Mic Inputs: ≤ -121 dBu A-Weighted (150-Ohm Source, +40 dB Gain) |
| Compatibility | |
| OS Compatibility | macOS / Windows |
| Mobile Device Compatibility | iPad |
| Required Hardware | Available USB-A Port |
| Signal Processing | |
| Pad | No |
| Gain/Trim Range | +6 to +50 dB |
| High-Pass Filter | No |
| EQ | Input Channels: 3-Band EQ |
| Built-In Effects | Distortion Auto-Wah Chorus Chorus+Reverb ADT Delay Reverb |
| EQ Parameters | High: ±12 dB at 10 kHz Mid: ±12 dB at 2.5 kHz Low: ±12 dB at 100 Hz |
| Dynamic Processing | Input Channels: Compressor, Limiter, Gate |
| Digital Audio | |
| Sample Rates | 44.1 kHz |
| Bit Depths | 16 / 24-Bit |
| Sync Sources | Internal |
| Audio File Formats | BWF |
| Audio Storage & Playback | |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC |
| Supported Media | SDHC Card, SDXC Card |
| Supported Media Capacity | SDHC: 4 GB Minimum to 32 GB Maximum SDXC: 64 GB Minimum to 1 TB Maximum |
| Others | |
| Marka | Zoom |
